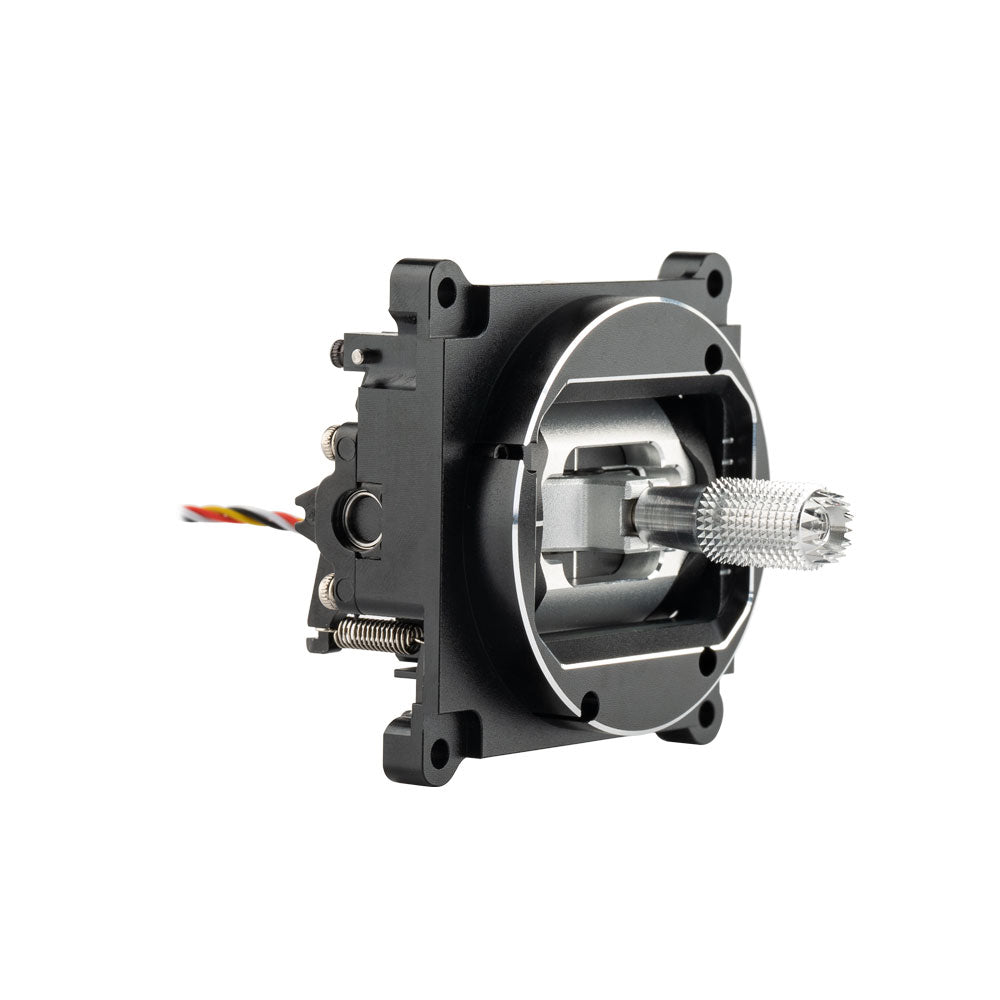

Introducing the AG01-V gimbals, the latest addition to the AG01 family, designed for pilots who demand the best! Developed and tested with champion pilot Kenny Ko, and used to win both the 2023 FAI F3N World Championship and the 2023 Rotor Asia Masters, the AG01-V gimbals are truly ready to take on the world.

The AG01-V gimbals feature aviation-grade aluminum construction for silky-smooth and pinpoint precision control. With the same outstanding adjustable angles and tension settings as the AG01, and the included black and silver Sticky series gimbal stick ends in two sizes, the stick feel can be customized to suit your needs. The AG01-V gimbals will breathe new life into your radio. Conquer the rigors of world-class competition and experience pure immersion in your flying with the AG01-V gimbals.

*These gimbals are for use with VBar Control Radios. These are not suitable for the TX16S or Boxer radio.

Features

• M4 threaded stick ends, Sticky360 & Sticky360 SLIM M4 threaded stick ends, two sizes for randomly switch
• Made with CNC processed aviation grade aluminum
• Non contact hall sensors for accurate control inputs and precise centering
• Quad precision bearings for unparalleled stick feel
• AG01-V features the same travel adjustment as the full size AG01(Min. 38°, Max. 54°)

Specifications

• Name: AG01-V CNC Metal Gimbal
• Sensor type: Hall Sensor
• Working voltage: DC 3.3V
• Linearity: Real-time (No delay)
• Adjustable vertical travel range: 38°—54°
• Self-centering adjustment: Yes
• Easy mode adjustment: Yes
• Adjustable tension: Yes
• Quad bearing: Yes
• Temperature range: -20°C-85°C
• Size: 58.7*54.9*33.3mm
• Weight: 76.1g/pc

Compatible with

• VBar Control
• VBar Control Touch
• VBar Control EVO

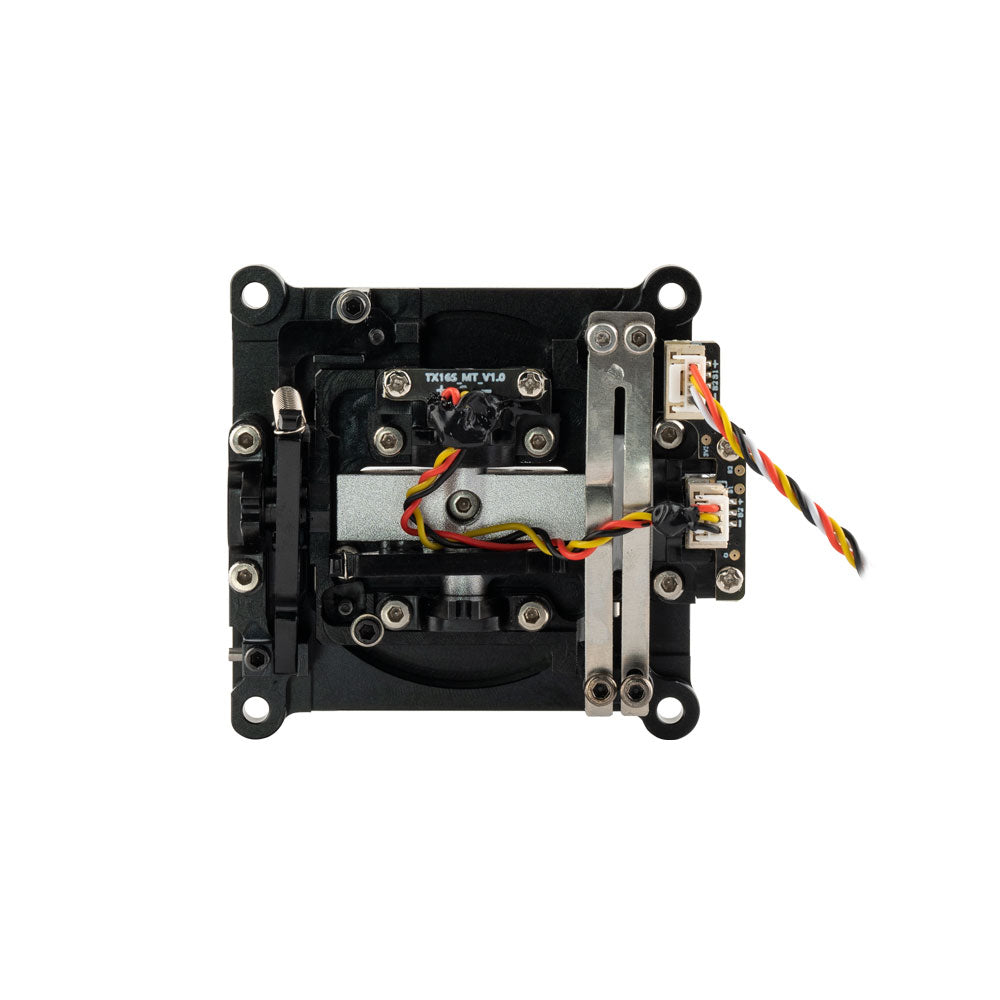

EXTERIOR ADJUSTABLE

• ① Set the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counter clockwise to increase the travel. Travel range (38-54°)
• ② Set the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counter clockwise to increase the travel. Travel range (38-54°)
• ③ Up and down spring tension: Turn the screw clockwise to increase the up and down spring tension. Turn the screw counter clockwise to reduce the up and down spring tension.
• ④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.
• ⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counter clockwise to reduce the left and right spring tension. Throttle tension adjustment: When there is no tension up and down, the ⑥ screw adjusts the tension tightness, the ⑦ screw adjusts the scale tightness.

Size

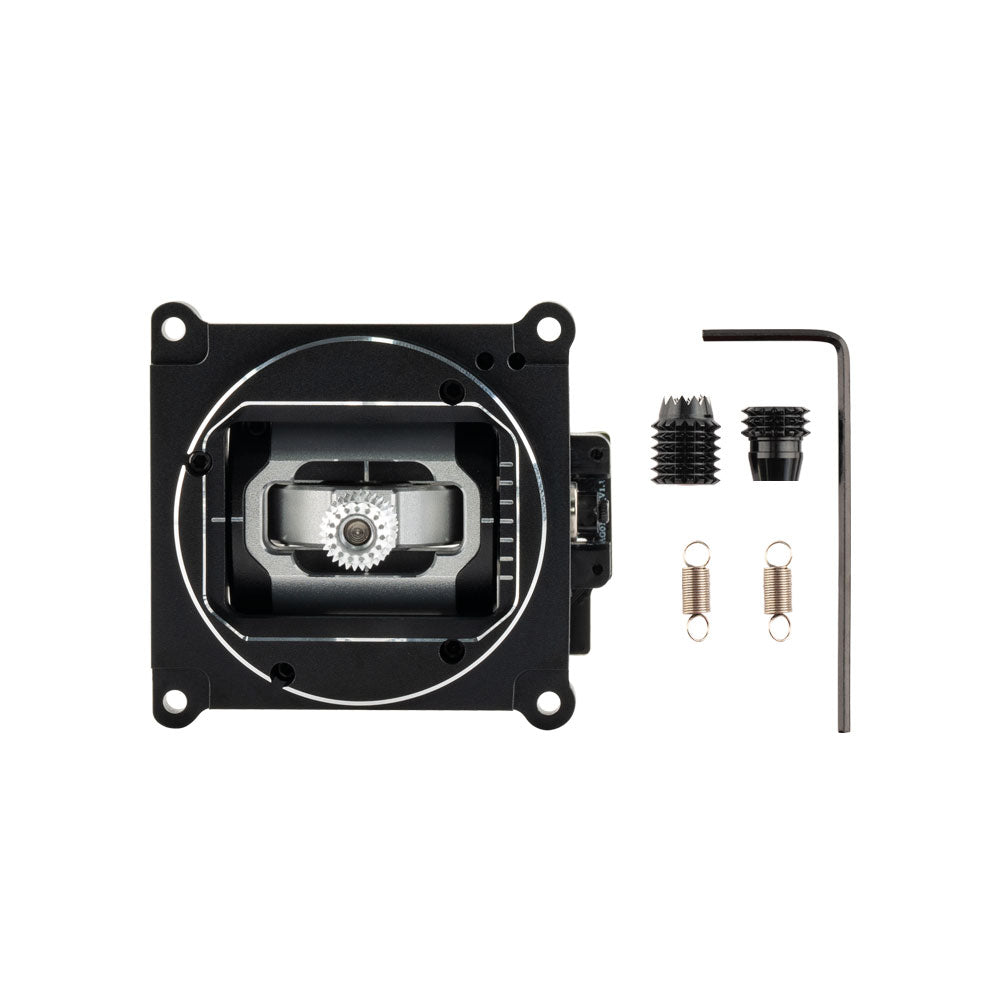

Package Includes

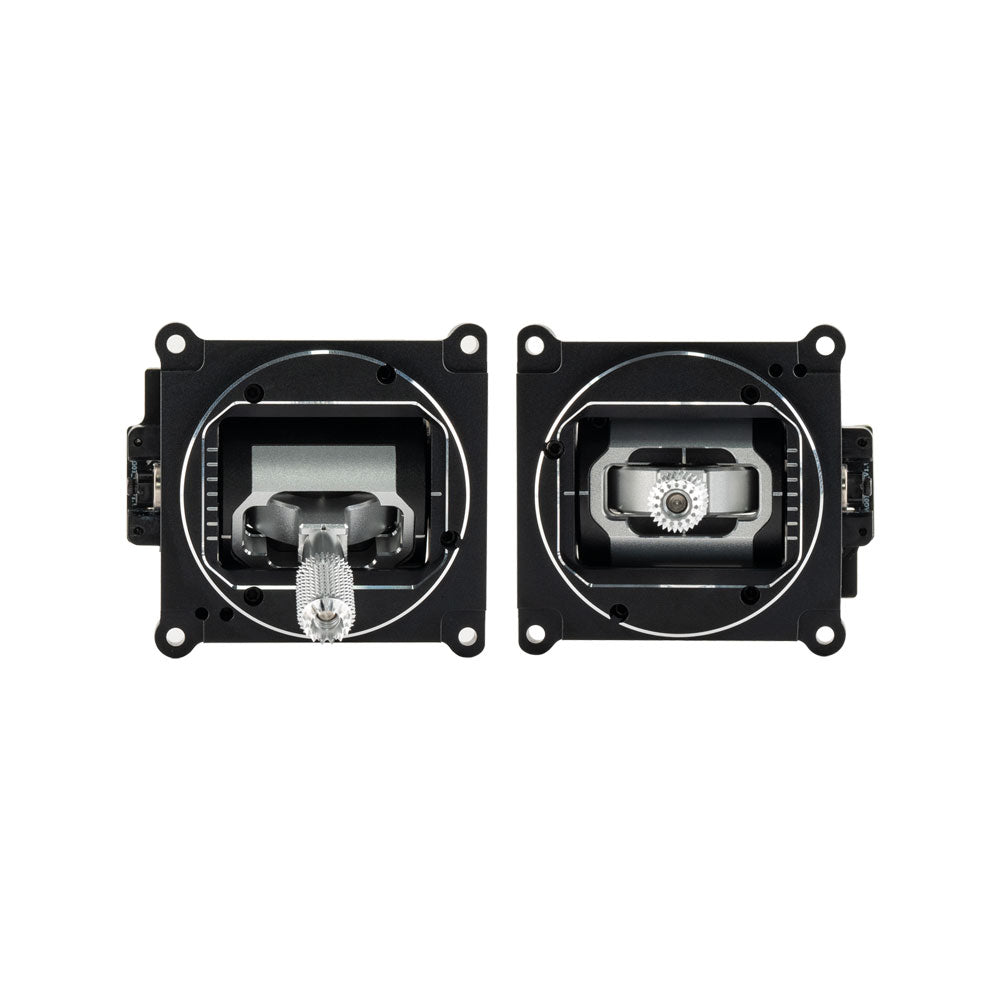

• 1 * AG01-V Hall CNC Gimbal (Throttle)
• 1 * AG01-V Hall CNC Gimbal (Centering)
• 2 * Sticky360 Gimbal Stick Ends（Installed on gimbal）
• 2 * Sticky360 SLIM Gimbal Stick Ends
• 4 * Low Tension Springs
• 2 * 1.5MM Allen Key
• 2 * Manual

*The AG01-V is designed and manufactured by RadioMaster for compatibility with Mikado Vbar control radios.
