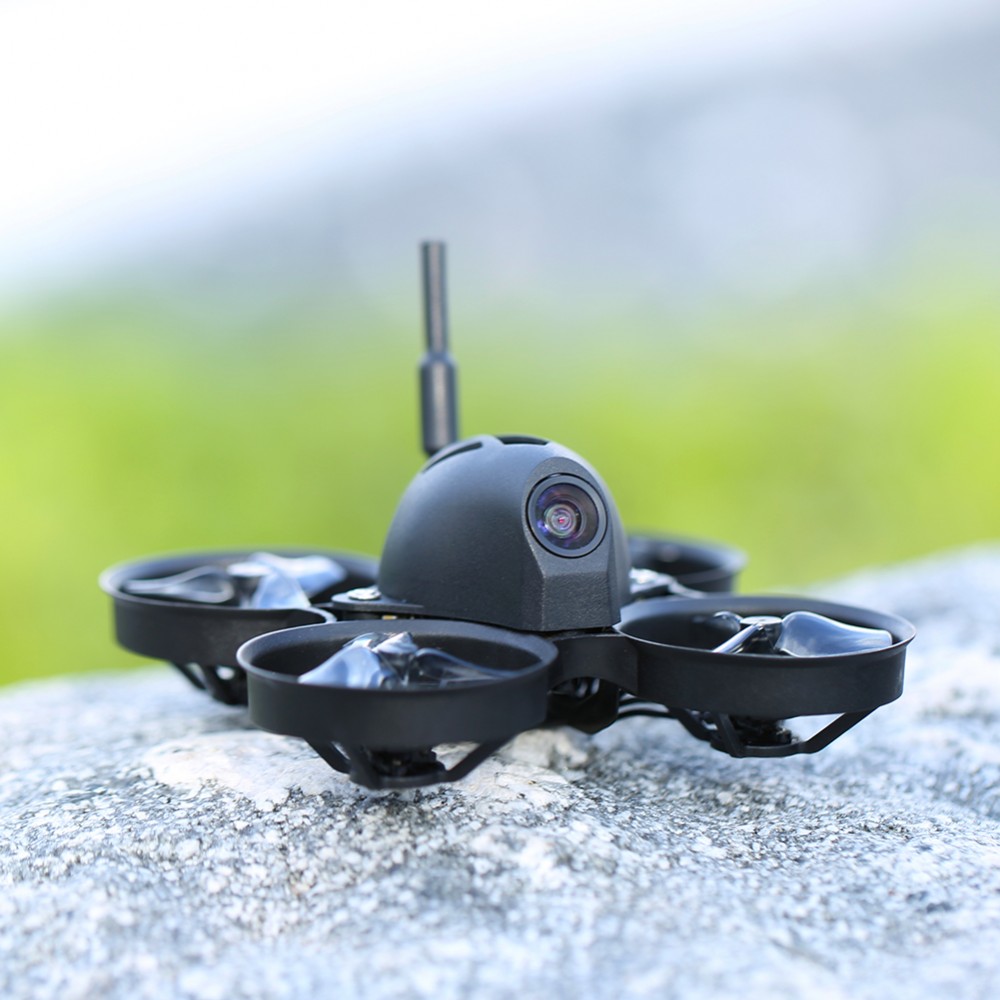

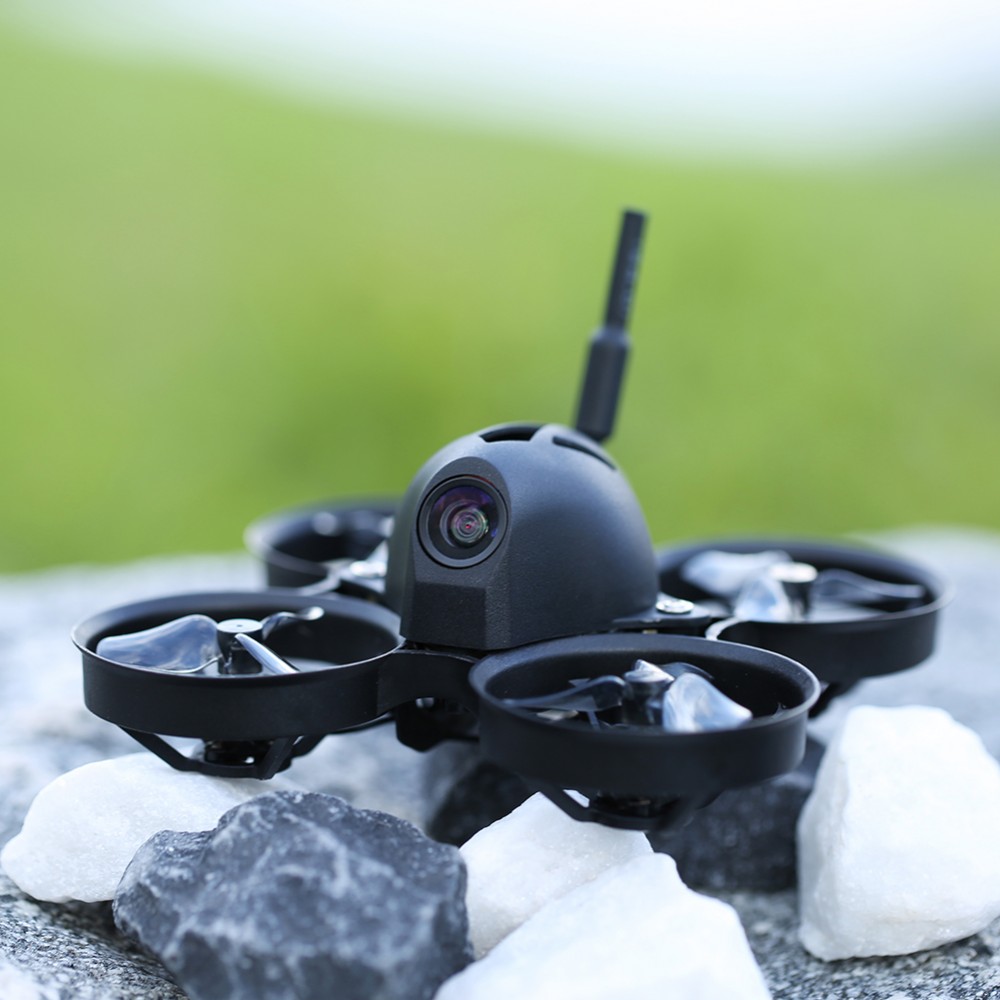

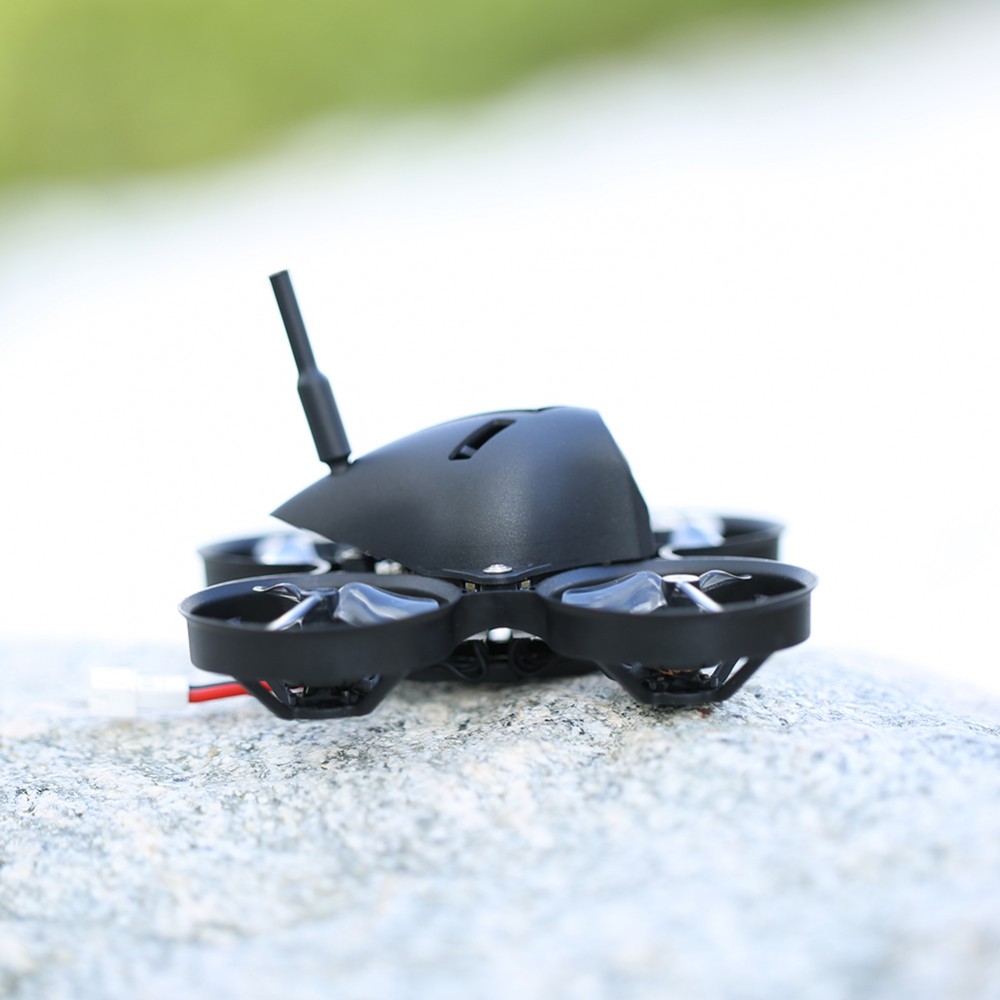

Let's welcome the iFlight Alpha series, a new way to fly FPV. This Alpha A65 is an even smaller size 65mm light weight 24.5g whoop. Stuffed with our newest electronic components and technology, this thing will guarantee loads of hours practice or racing across the smallest spaces. This is what we came up with to combine flight time efficiency with sufficient power.

FEATURES：

• 24.5 grams (without battery)
• Butter smooth XING 0802 22000KV (more torque and efficiency with longer flight times)
• Ducts to protect the sensitive environment or yourself
• Pre-tuned with smooth cinematic settings

Alpha A65 w/800TVL 150° camera BNF Specs:

• SucceX F4 1S 5A AIO Whoop Board w/VTX
• XING 0802 22000KV FPV Micro Motor

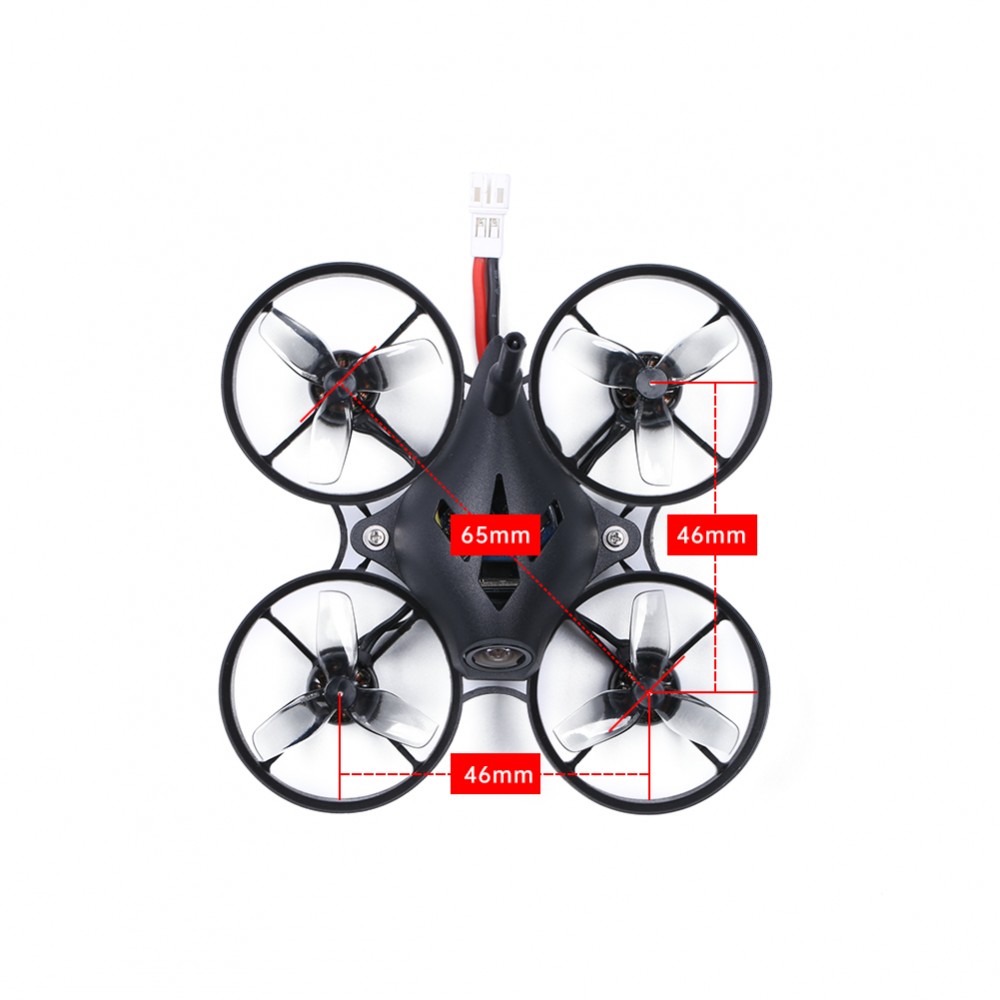

• Wheelbase: 65mm
• Body size: 46*46mm

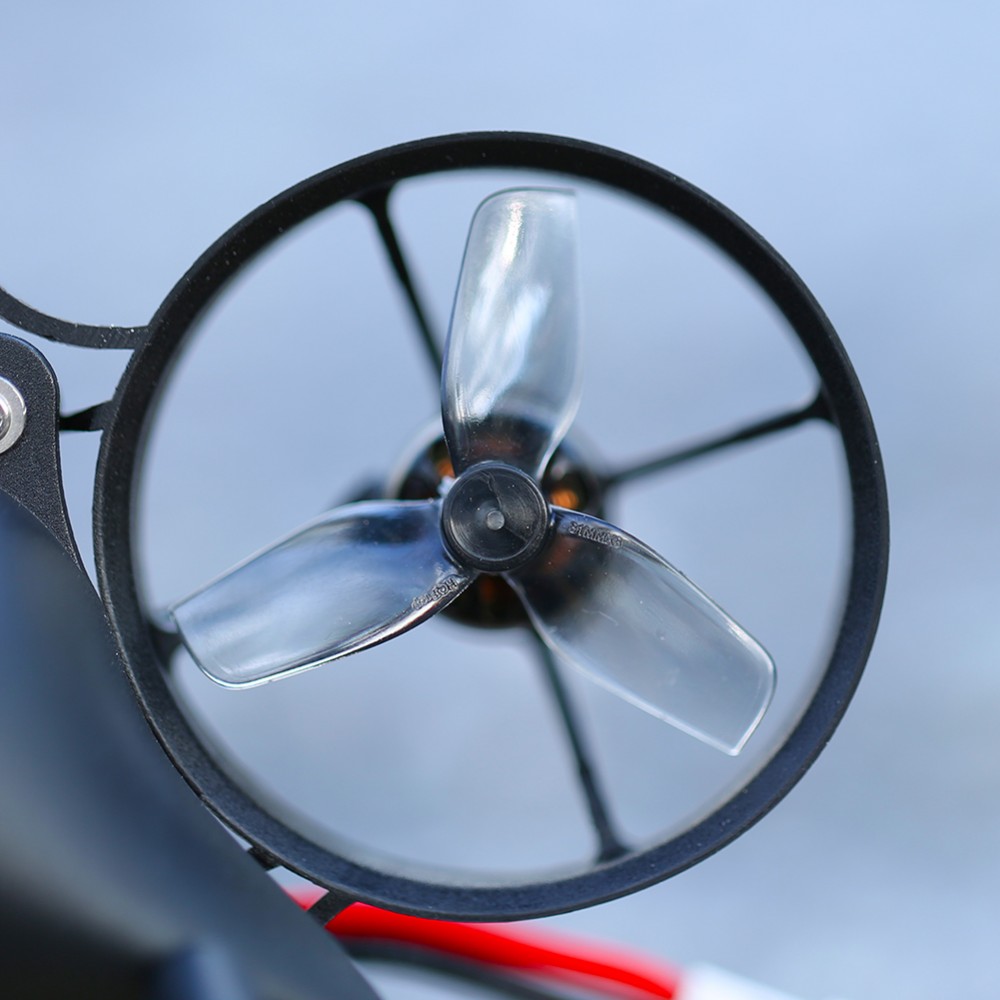

• Ducted propeller size: 31mm
• FC pattern: 25.5*25.5mm

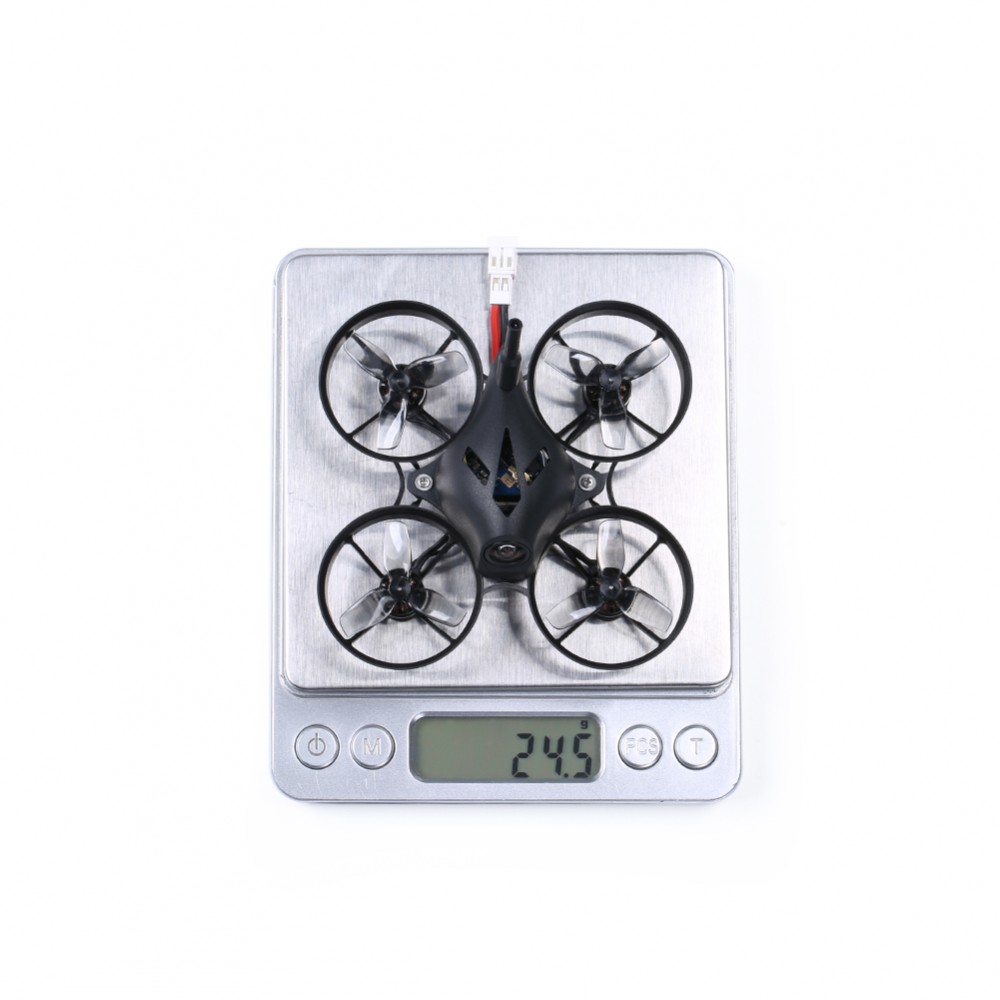

• Weight: 24.5g (without battery)
• Flight time: 3-4 min cruising (1S 300mAh)

Alpha A65 w/800TVL 150° Camera Quad BNF Included Components and Parts

• Prebuilt and tested Quadcopter
• 1x Alpha 65mm Frame
• 1x 800TVL 150° Camera
• 1x SucceX F4 1S 5A AIO Whoop Board (MPU6000) w/VTX
• 1x Whip antenna
• 2sets HQ 31mmx3 1mm (Set of 4 - Color May Vary)

FC // SucceX F4 1S 5A AIO Whoop Board

Size：29*29mm

Mounting pattern: 25.5*25.5mm/φ3mm （half-hole)

Connector：Micro-USB

Weight: 5.4g (with power cable, vtx, and vtx antenna)

MCU：STM32F411

Gyro：MPU6000

Blackbox：no

BEC output：5V 1.2A

INA pad：n uart2

Barometer：no

FC Firmware：MatekF411RX

ESC Firmware：O-H-30 BLS 16.8

ESC // 5A

Current: 5A continuous and peak 6A

Current scale: 400

Input：1S

Signal Support: Dshot，Oneshot，Multishot

Current sensor：yes

BLHeli：BLHeli-S

ESC Telemetry：no

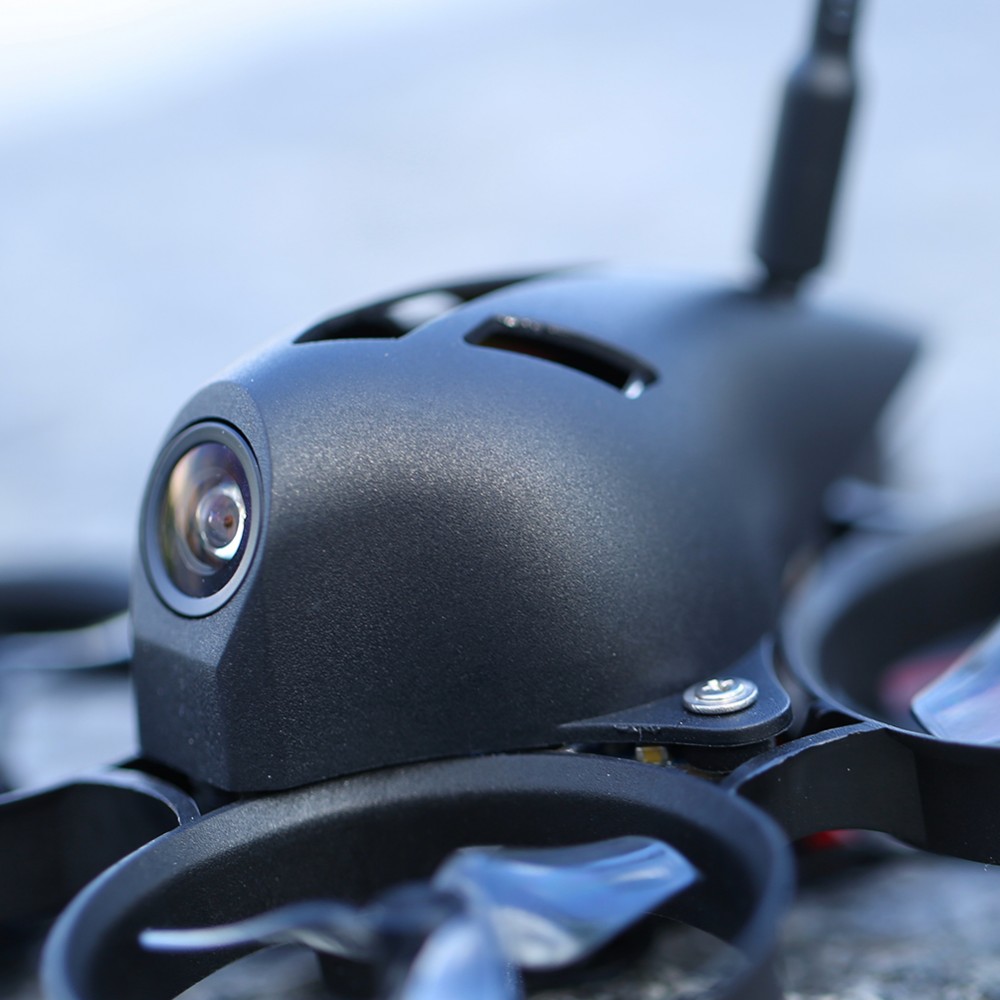

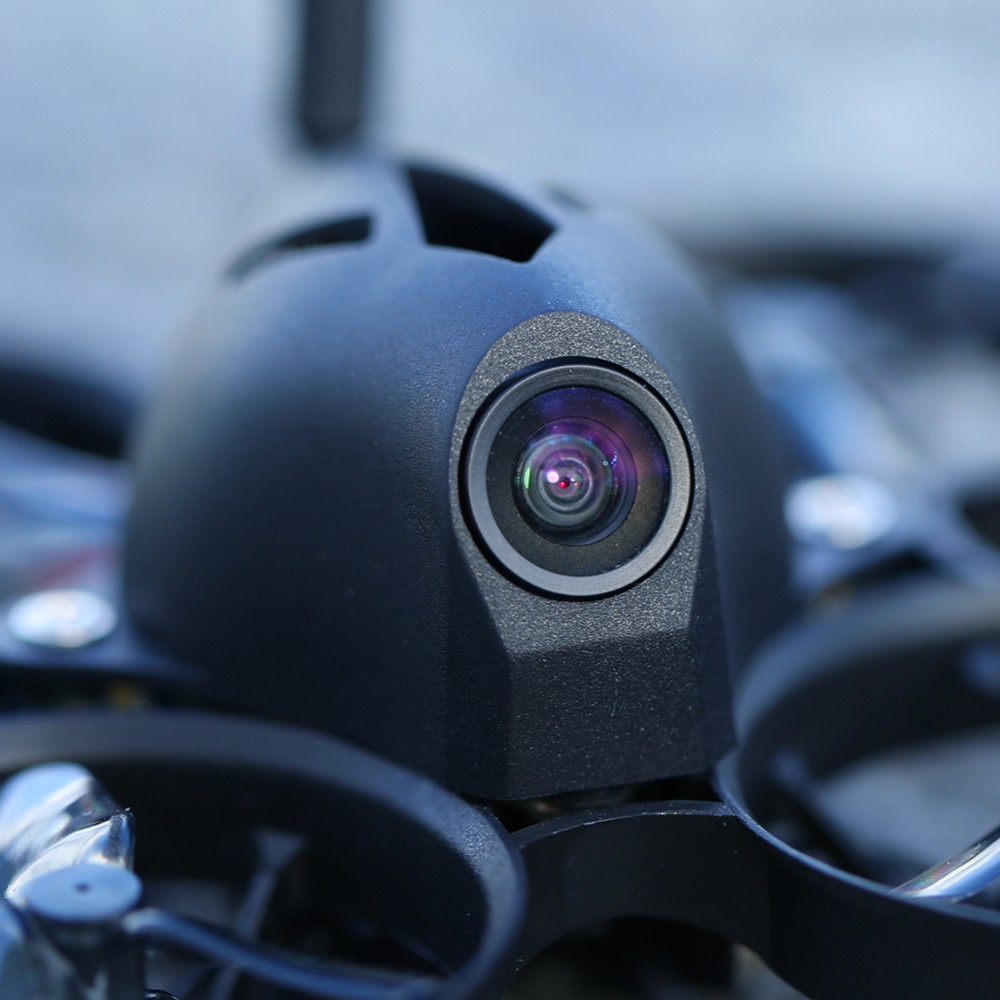

FPV cam:

Power DC: 5V

Size: 14*12.2*12mm

Net weight: 1.6g

800TVL 150°

VTX：

Input voltage: 5V

Channels: 48CH

Power: PIT/25/50mW
