A super efficient iFlight 7inch Long-Range frame and can carry bigger batteries to get the flight time to surf the swiss alps if you want! Super stiff frame for minimum resonance and 2806.5 motors for maximum 7inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job.

HIGHLIGHTS:

- 6mm rigid arm design for more stiffness

- Top- and bottom battery mount option

- GoPro TPU bottom stand (GoPro protector not included)

- 360° TPU protection, DJI cam protection and antenna mounts

FRAME // ：Chimera7

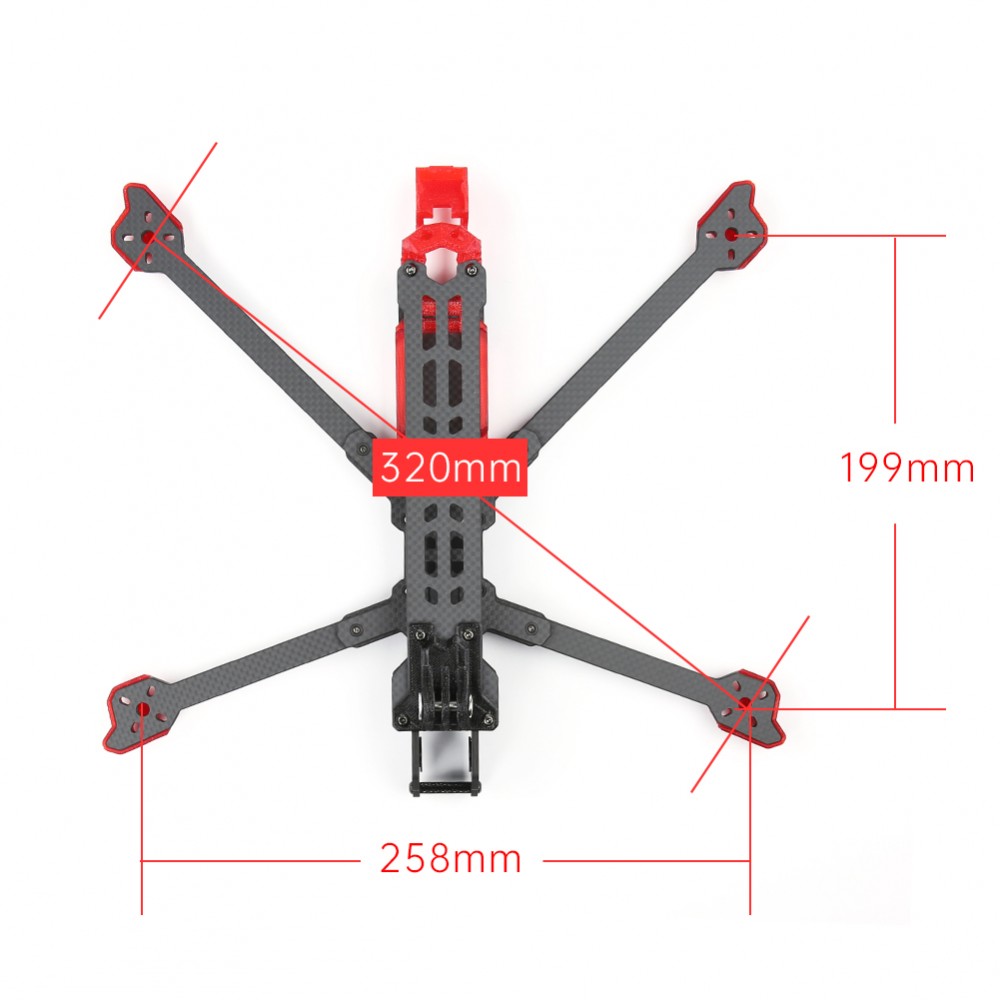

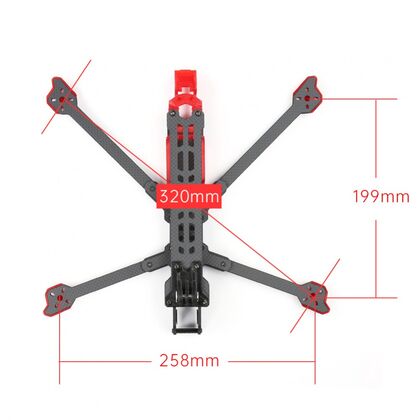

- Wheelbase: 320mm

- Main body dimension: 258*199mm

- Bottom to top distance: 20mm

- Arm thickness: 6mm

- Bottom plate thickness: 3mm

- Top plate thickness: 2mm

- Upper(middle) plate thickness: 3mm

- Camera plate thickness: 3mm (included TPU inserts)

Recommended Parts (not included)

SucceX-D F7 V2.1 Stack (50A 4-in-1 ESC) (LINK)

SucceX-D F7 V2.1 TwinG (LINK)

SucceX 50A 4 in 1 ESC (LINK)

XING 2806.5 Motor (1300KV Crusier / 1800KV speed cruiser) (LINK)

Albatross LHCP RP-SMA 5.8g 150mm antenna (LINK)

Gemfan tri-blade 7040 props (Set of 4 - Color may vary) (LINK)

- 4x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)(LINK)

Additional Suggested Parts (not included)

- Adjustable GoPro mount (0-40) (LINK)

- 1300KV Cruiser, suggested battery: 6S 4000mAh

- 1800KV Speed Cruiser, suggested battery: 6S 2600mAh

Package included:

- 1x Chimera7 frame

- 1x GoPro TPU bottom stand incl. lock screw

- 1x 200mm Coaxial cable

-1 x Screw Bag

-4 x Arm guard/Motor mount

-1 x TPU DJI Air Unit Bracket Mount

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat
