Key Specifications/Special Features:

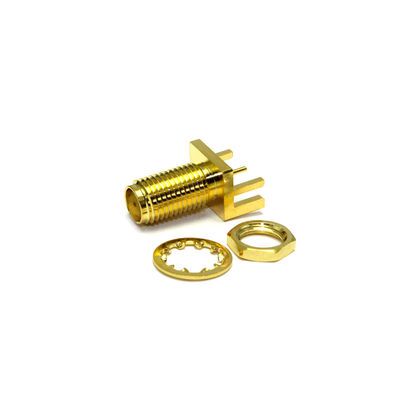

Female bulkhead edge mount sma pcb connector
Key specifications/special features:
Electrical characteristics:
Impedance: 50Ω
Frequency range: 0-18GHz
VSWR: 1.1+0.02*f (GHz)
Insulation resistance: ≥5000MΩ
Working voltage: 480V
Withstand voltage: 1000Vrms
Mechanical characteristics:
Durability: 500 cycles
Materials and surface treatment:
Outer contact: CuZn/Au plating
Center contact: CuZn/CuBe/Au plating
Insulator: PTFE
Key specifications/special features:
Electrical characteristics:
Impedance: 50Ω
Frequency range: 0-18GHz
VSWR: 1.1+0.02*f (GHz)
Insulation resistance: ≥5000MΩ
Working voltage: 480V
Withstand voltage: 1000Vrms
Mechanical characteristics:
Durability: 500 cycles
Materials and surface treatment:
Outer contact: CuZn/Au plating
Center contact: CuZn/CuBe/Au plating
Insulator: PTFE
