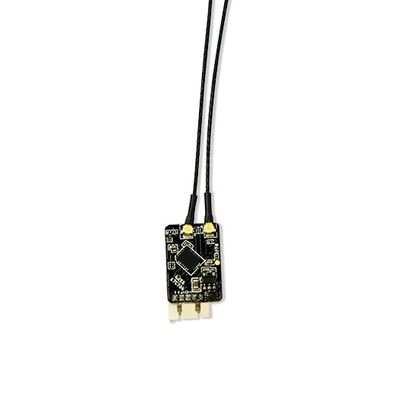

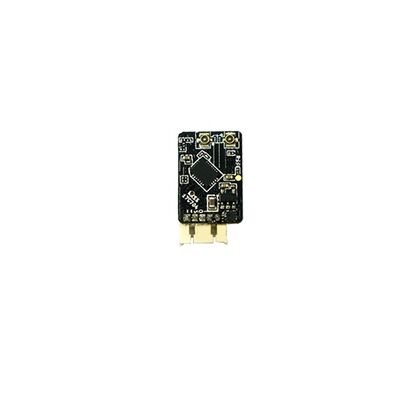

The FrSky R-XSR ultra micro receiver is a evolution of the popular full range XSR receiver. The R-XSR receiver has all the functionality of the full size XSR (including telemetry), but at 1/3 size and weight of XSR receiver. The R-XSR also has an integrated diversity with 2x antennas for a solid RC link, and the IPEX connector makes it convenient to replace antennas. Its Ideal for use as a redundancy slave receiver to use along side your main receiver when installation is to be kept at a minimum

Features:

Ultra mini size and light weight

Support telemetry and Smart Port enabled

Full range

Switchable SBUS/ CPPM signal output

Supports redundancy function

IPEX connector, replaceable antennas

Specifications:

Dimension: 16x11x5.4mm (L*W*H)

Weight: 1.5g

Number of channels: 16CH (1-16CH from SBUS channel, 1~8CH from CPPM channel)

Operating Voltage Range: 4~10V

Firmware Upgradable

Compatibility: FrSky X Series modules and radios in D16 mode
