Small reminder: upon receipt of your item, please connect it to USB and calibrate the accelerometer before starting to weld.

PRODUCT DESCRIPTION

The next generation SucceX-A F4 AIO (F4 + 40A) flight controller you will need for your build. Comes with 5 uarts, 4 motor outputs, an 8MB blackbox and a powerful F4 processor to run it all, it is designed to work seamlessly with DJI's new HD FPV system.

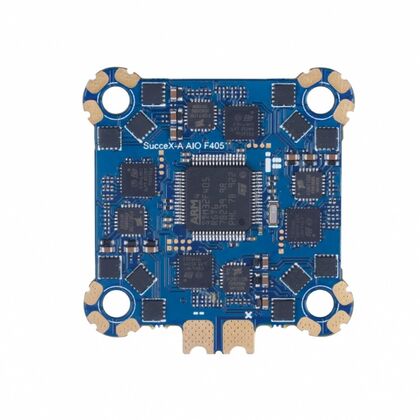

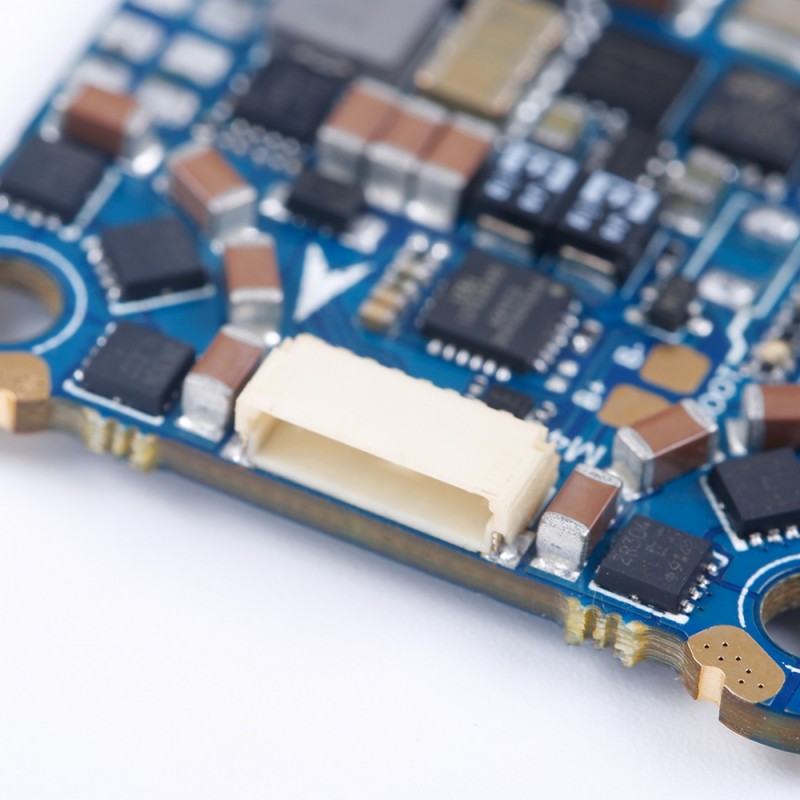

For convenience, the DJI Air Unit can simply be plugged into the FC with the included wiring harness. iFlight also added reliable and standard USB Type-C, the same as your DJI module.

Please note: this AIO card has been specially designed to work with a DJI Air unit and takes advantage of DJI's latest Betaflight OSD interface! Due to limited space, iFlight has chosen to remove analog OSD support for this board! If you need analog OSD functionality, please check the latest versions.

main Features

• DJI Plug-and-Play - No need to solder small wires!
• Gyro Fusion - Zero delay Twin-Gyro filtering!
• Double BEC 5V and 10V

FC // SucceX-A F4 AIO

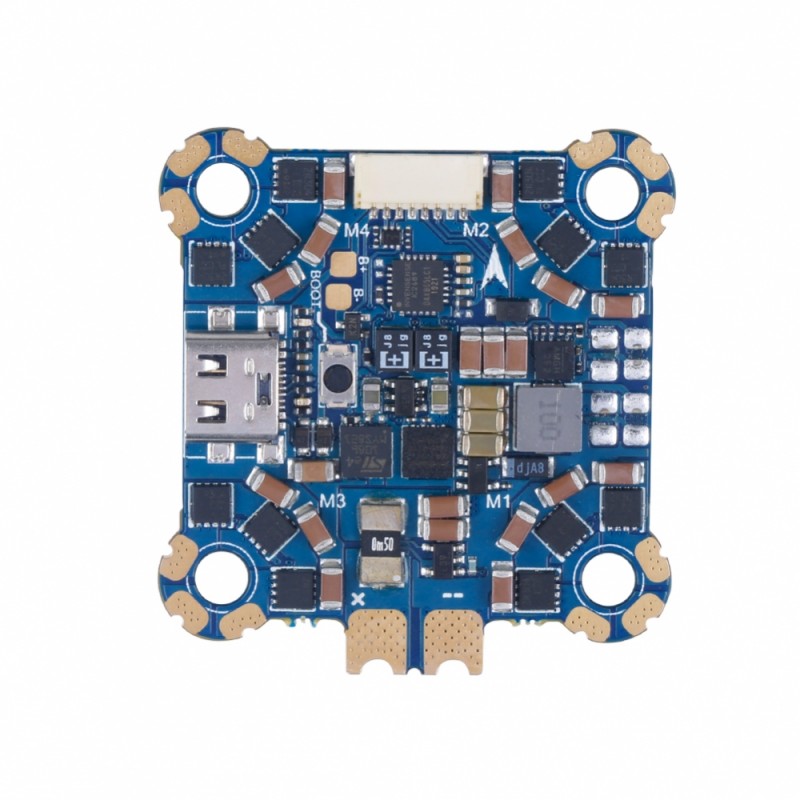

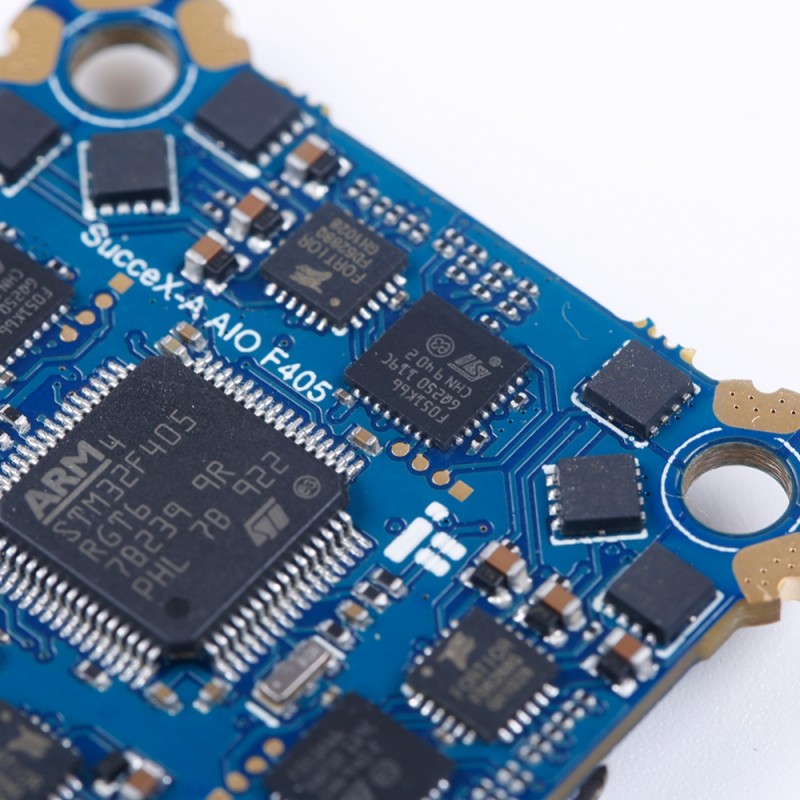

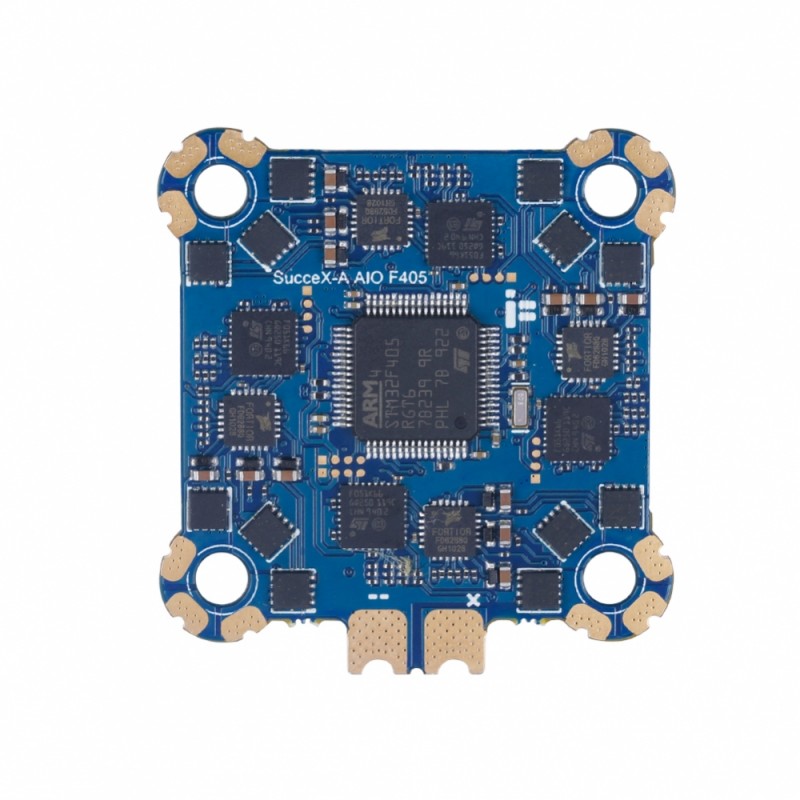

• MCU: 168 MHz STM32F405
• Gyro: MPU6000
• Blackbox: 8 MB
• OSD Chip: NO (Analog OSD not available)
• OSD Betaflight: YES (Pass-through Digital DJI Air Unit)
• BEC: 5 V 2.5 A (3 A MAX) / 10 V 2.5 A (3 A MAX)
• Voltage sensor scale: 110
• Current sensor scale: 100
• Inverter for SBUS input (UART2-RX)
• Beeper pad: Yes
• RSSI input block: No
• UART: 5
• Motor outputs: 4
• 8pins for DJI Air Unit port (10V ， GND ， T1 ， R1 ， GND ， R2I ， T2，5V)
• BLHeli32 Telemetry: RX4
• Input voltage: recommended 2-6S
• Target: STM32F405 (CLI configuration required; see INSTALLATION GUIDE above)
• Mounting pattern: 30.5 * 30.5mm φ4mm with φ3mm eyelets

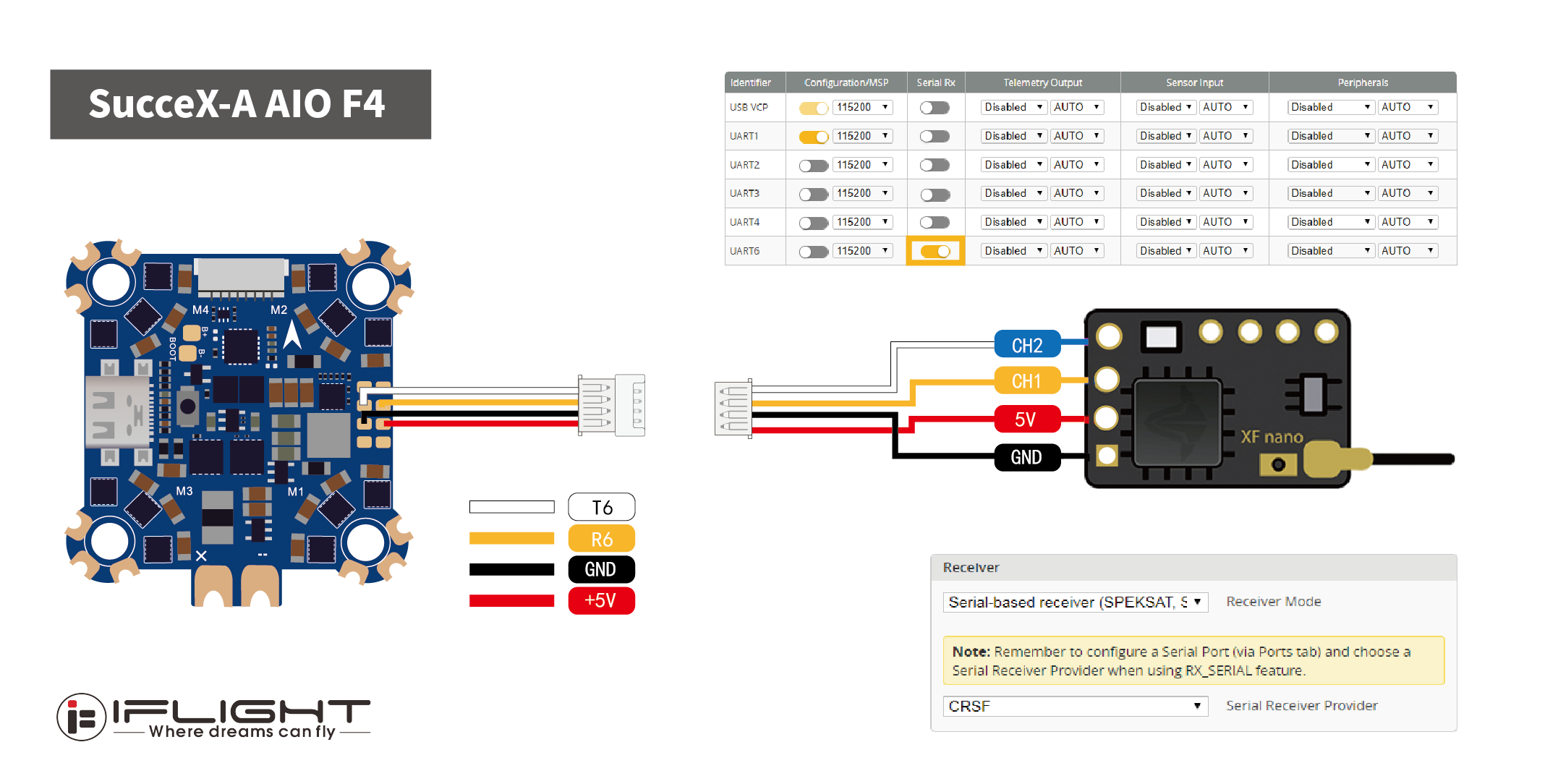

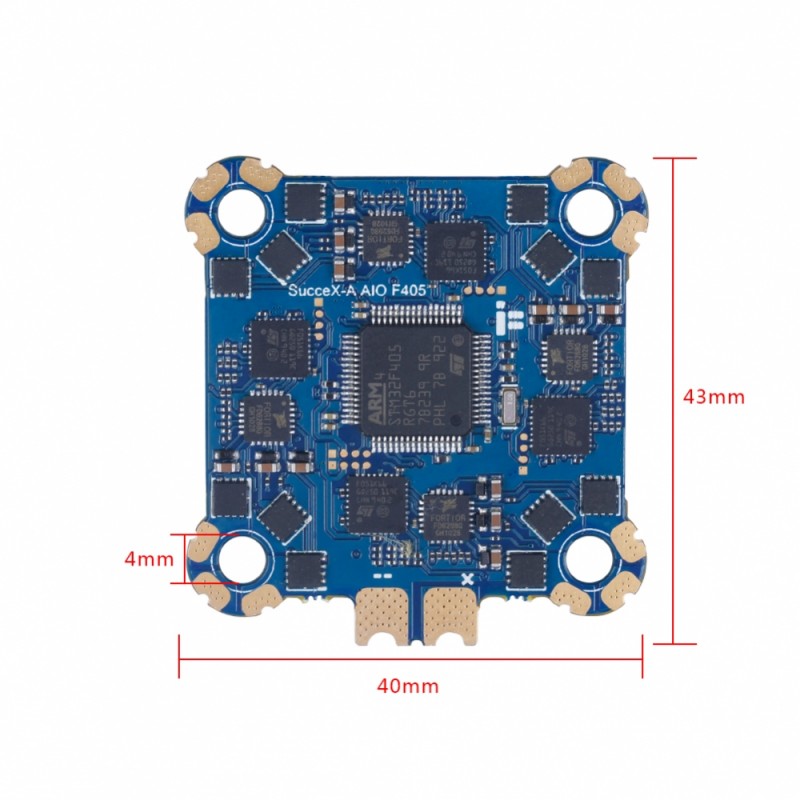

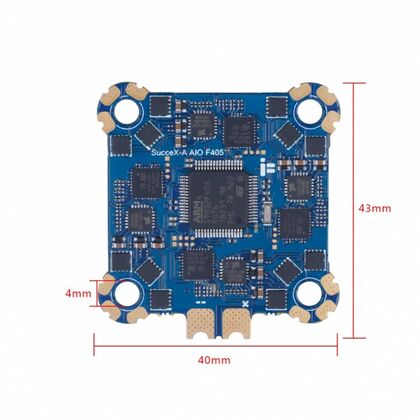

• Dimensions: 40.5 * 43mm

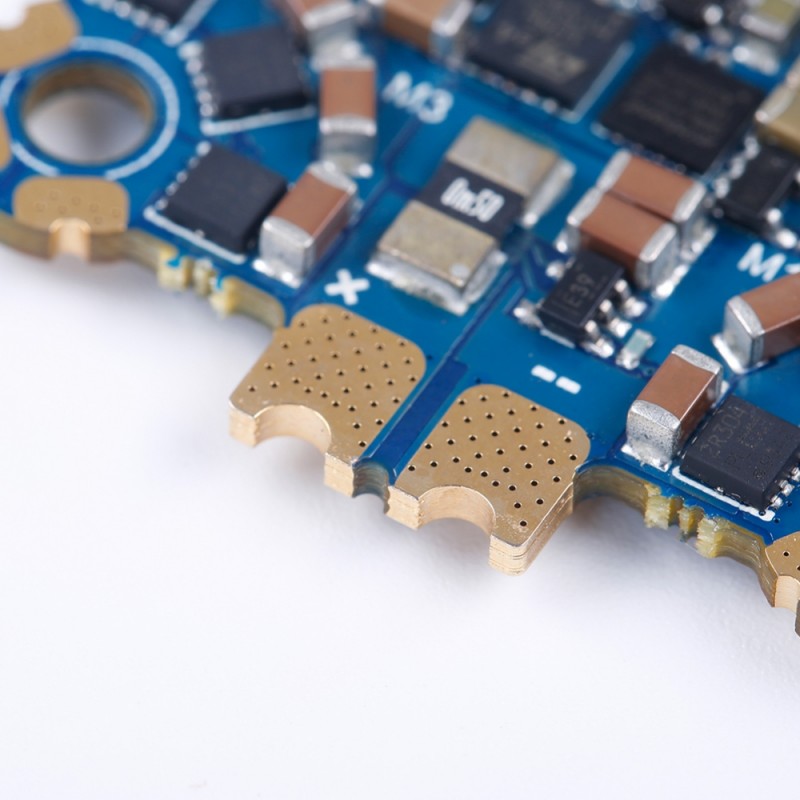

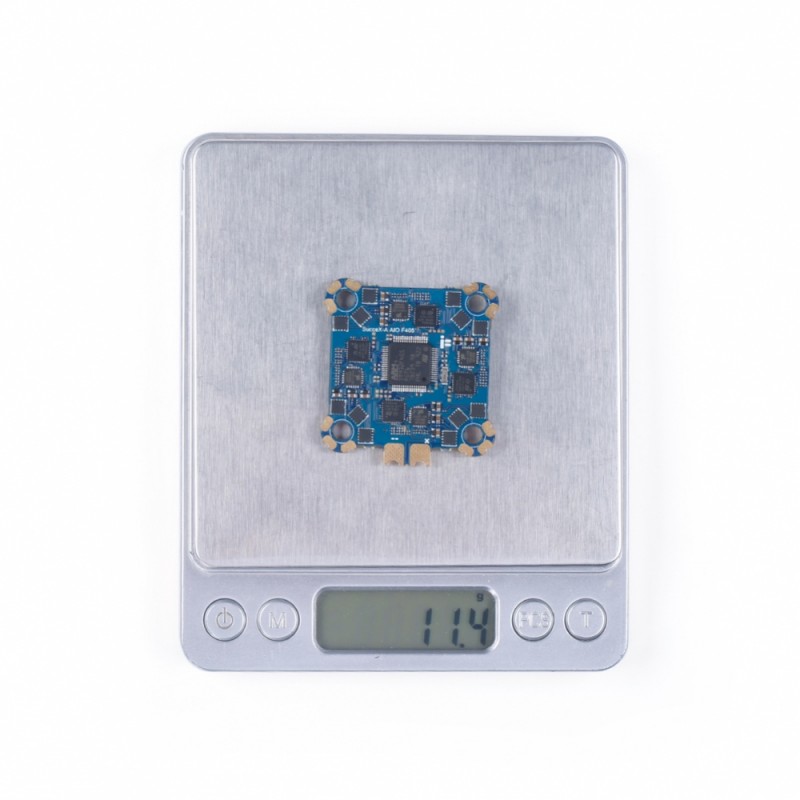

• Weight: 11.4g
• USB type-C

ESC // SucceX 40A 2-6S

main Features

• 6 Layer Double Sided PCB
• 1.6mm thick power board
• 32-bit STM32F051 MCU, 48 kHz clock speed
• TDK MLCC Low ESR Ceramic Capacitors
• Top quality TPN2R304PL MOSFET

Specificities

• MCU: STM32F051
• PWM frequency up to 48 kHz
• Capacity: 484uF
• Current sensor: Yes
• Entry: 2-6S LIPO
• Constant: 40A / Burst: 50A
• BlHeli32 Telemetry: Yes
• BEC: No
• Supports up to Dshot1200, Proshot, Oneshot, Multishot
• Target: iFlight-BL32-4IN1
• Mounting pattern: 30.5 * 30.5mm / Φ3mm
• Dimensions: 43 * 39mm (including power pads)

Includes

• 1 x SucceX-A F4 AIO
• 1 x Capacitor 470uF / 50V × 1
• XT60 12AWG cable
• 1 x Cable harness (plug & play) for DJI Air Unit
• 4 x silicone grommets M4 to M3
