PRODUCT DESCRIPTION
Features：
- 126.5 grams without battery
- Butter smooth XING-E 1204

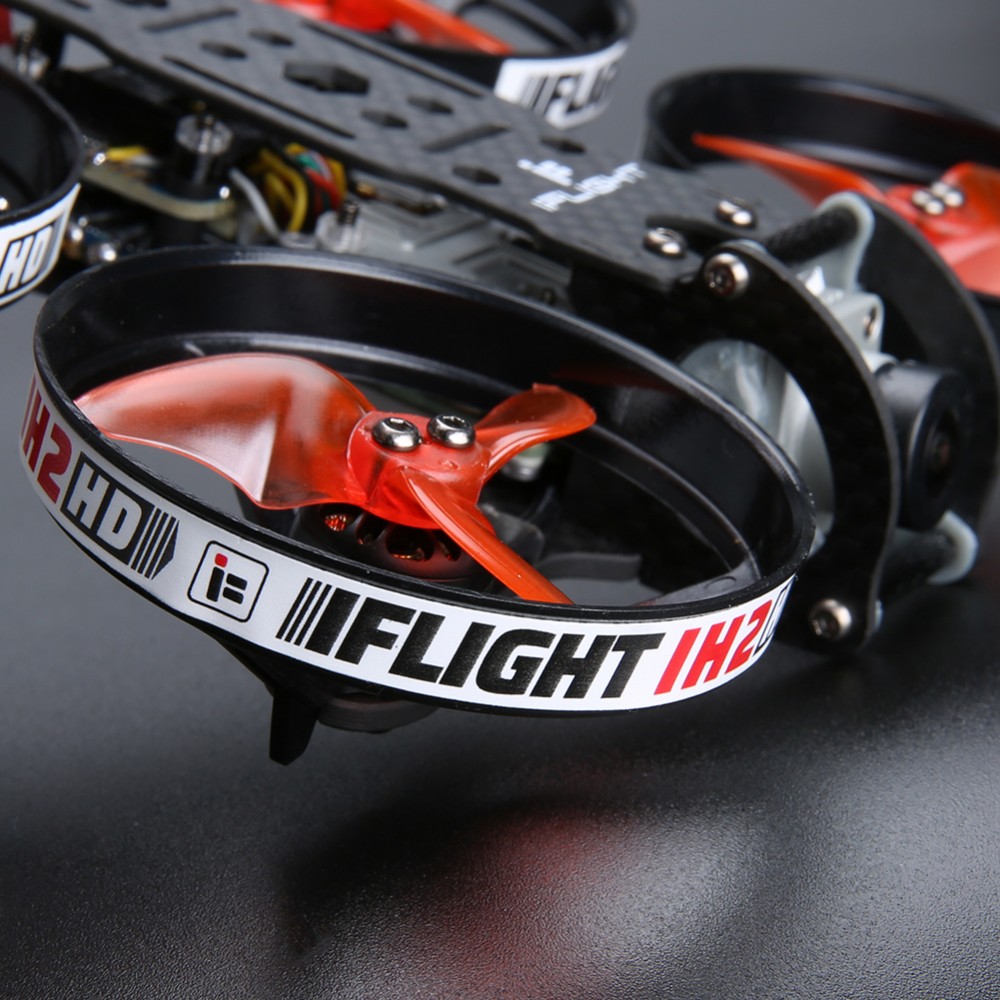

- Duct prop guards to protect the sensitive environment or yourself
- Pre-tuned with smooth freestyle settings
iH2 HD BNF Specs:

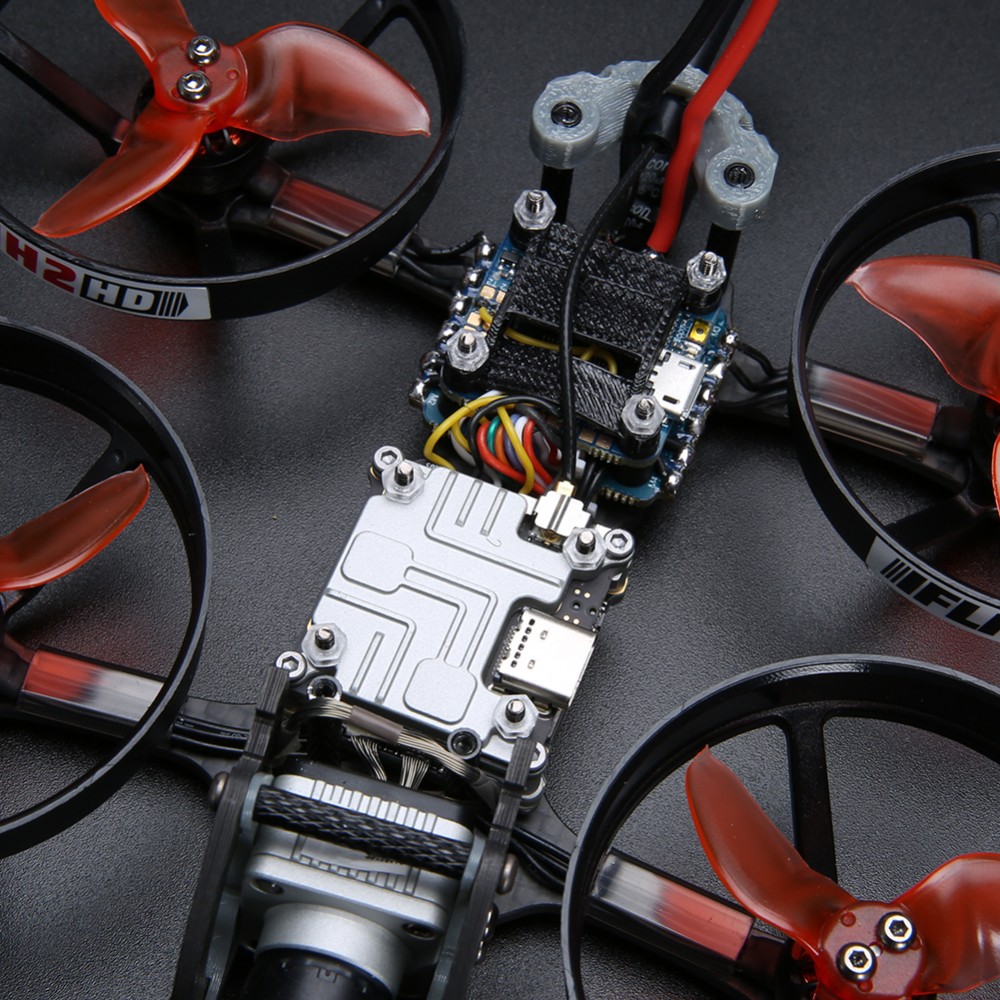

- SucceX-E mini F4 + mini 35A stack
- Motor: XING-E 1204 4500KV
- Wheelbase: 120mm
- Body size: 100*68mm
- Bottom plate thickness: 2.5mm
- Top plate thickness: 1.5mm
- Top and bottom plate spacing: 22mm (aluminum column height 25mm)
- Ducted propeller size: 2 inch
- Maximum propeller size without ducts: 2.5 inch props
- FC pattern: 20*20mm，16*16mm
- FPV cam spacing: 19mm

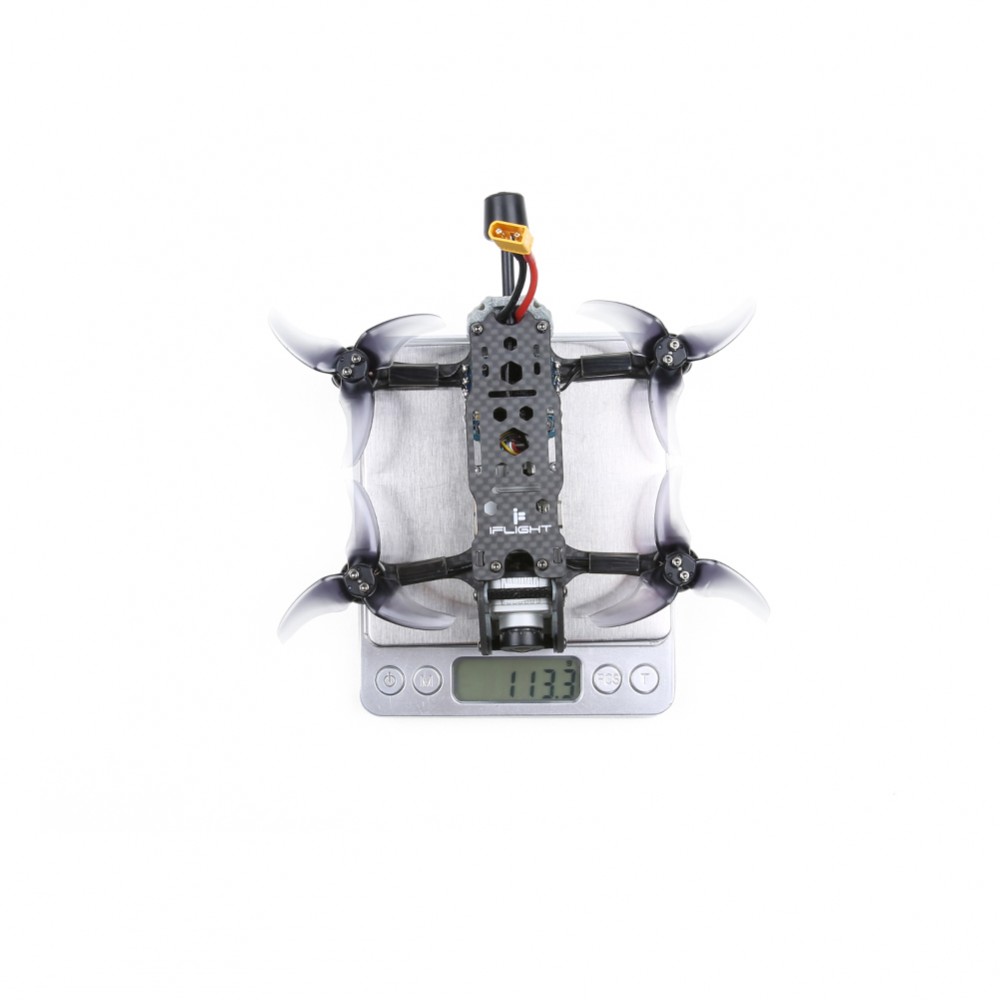

- Weight: 126.5g (without battery)
- Flight time: 5-6 min cruising
PRE-TUNED & PRE-SETUP:
- Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
- Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

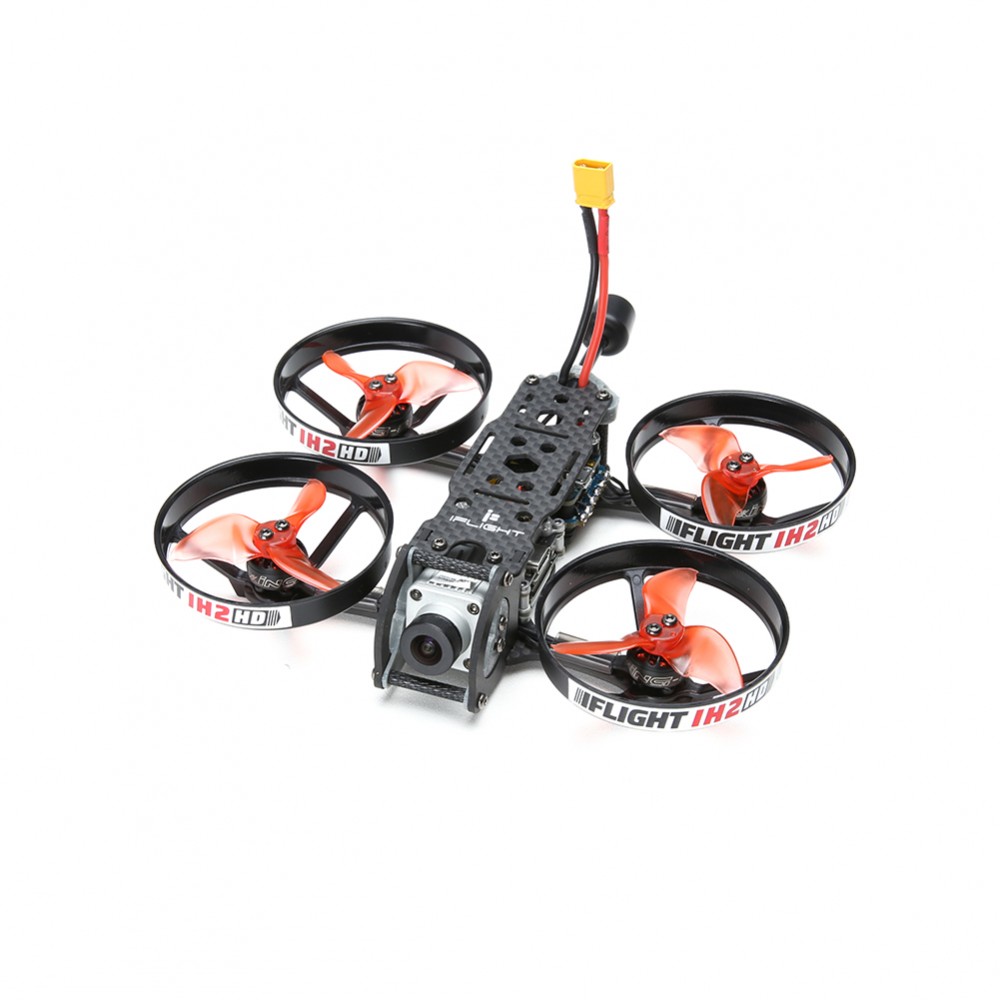

iH2 HD Quad BNF Included Components and Parts
- Prebuilt and tested Quadcopter

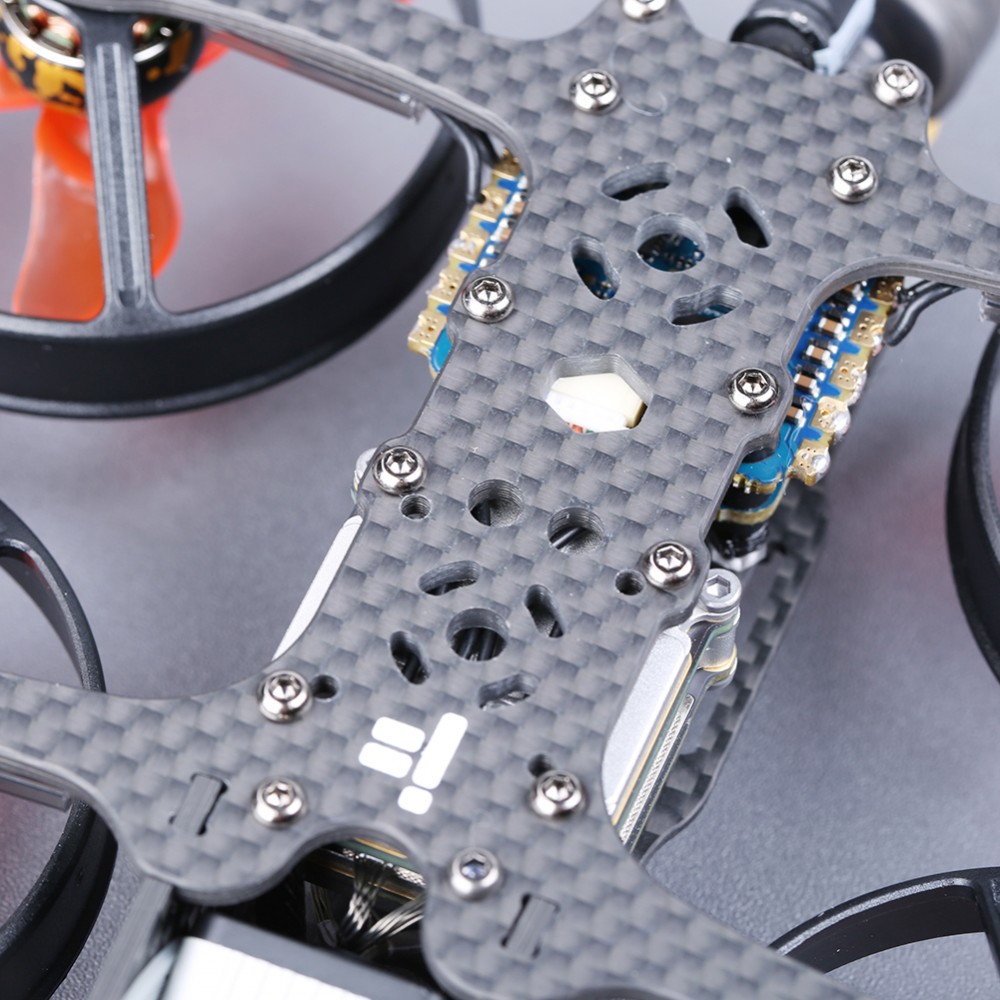

- 1x iH2 HD Frame
- 1x Caddx Vista Digital HD System Kit

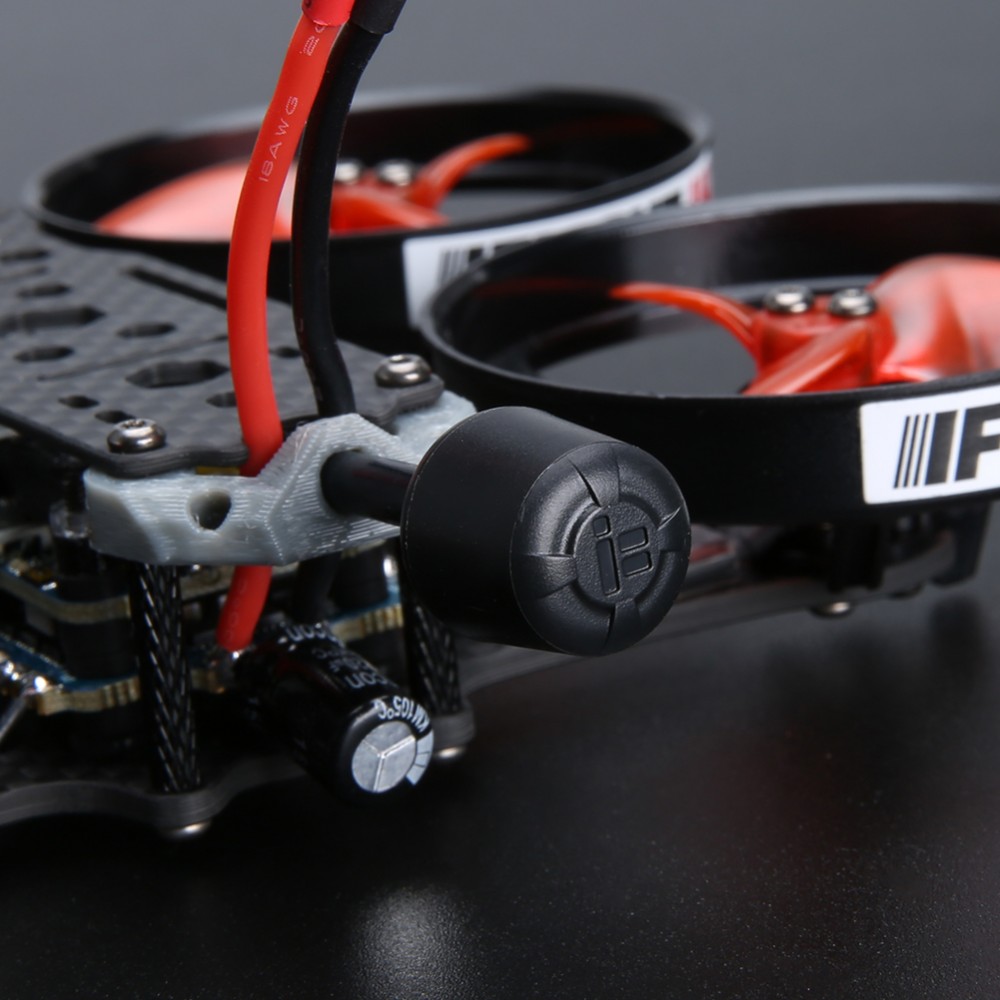

- 1x TPU Antenna holder

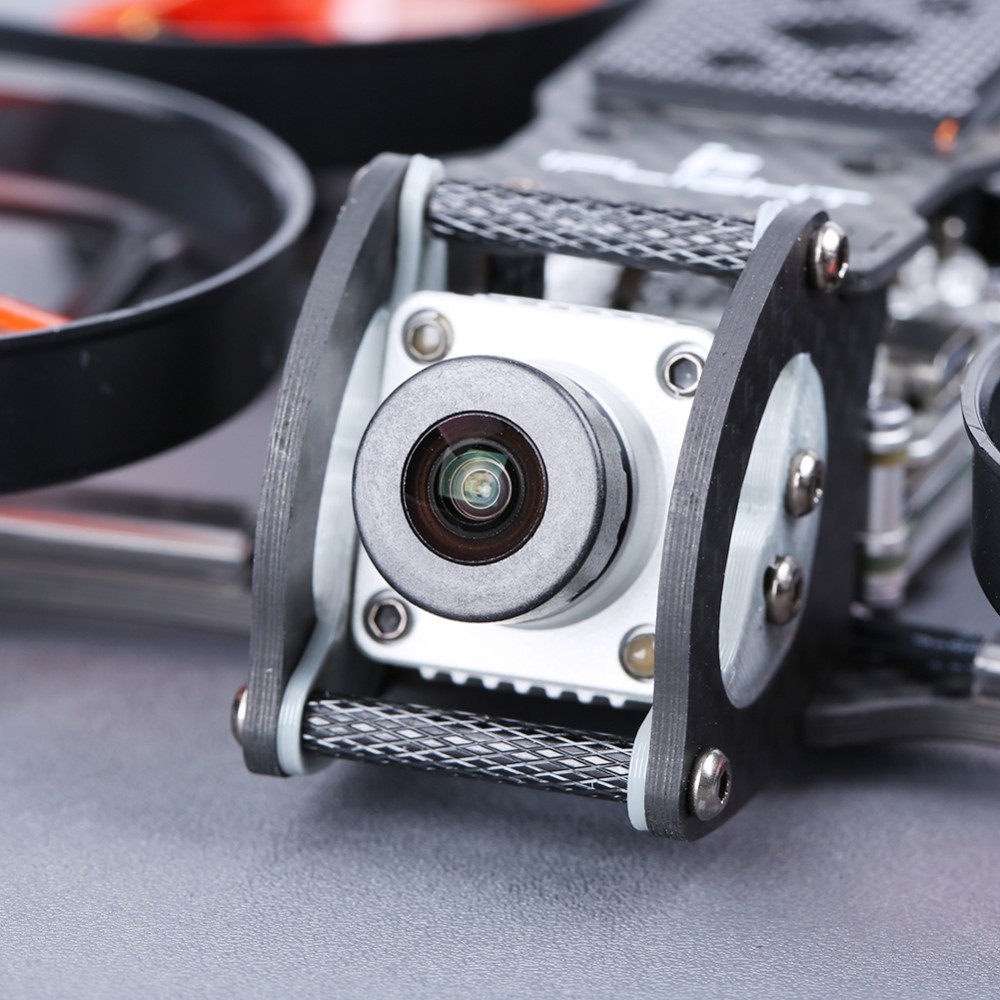

- 2x TPU camera side plate soft mount
- 2x Emax 2 inch / 2.5 inch 3-blades (Set of 4 - Color May Vary)
- 1x iFlight Lipo Strap
Specifications:
- MCU：168MHz STM32F405
- Gyro：MPU6000
- Blackbox：8MB
- Betaflight OSD：YES
- BEC：5V 2.5A
- Uarts：4
- ESC Telemetry：yes
- INA Pad：nuart2
- Input voltage：2-6S
- Size:25*25mm /20*20mm φ3 mounting
- Weight: 4g
- Firmware：BETAFLIGHTF4
Physical
- Mounting hole：20*20mm，φ3mm
- Size：25*25mm
ESC // SucceX-E Mini 35A
Top Features:
- 6 layers double-sided PCB board
- 2oz 1.4mm thick power board
- TDK MLCC Low ESR ceramic capacitors
- Top grade 2R203 MOSFET
Specification:
- MCU: BB21 F16G
- BLHeliS
- Capacitance: 470uF/50V
- Current Sensor: Yes
- Input: 2-6S LIPO
- Constant: 35A / Burst: 40A
- BEC: No
- Supports up to Dshot600, Proshot, Oneshot, Multishot
- Target: G-H-30
- Weight:6.9g
- Mounting pattern: 20*20, φ3mm with Grommets φ2mm
- Dimensions: 31*30mm (including the power pads)
Additional Suggested Parts
- DJI HD FPV Goggles
- Radio Controller
- DJI Remote Controller (Mode 2)
- Battery 4S 450mAh
Important
The DJI Remote Controller is recommended for beginners since you won't need to set up another receiver, but it is also optional in this BNF drone because it is NOT required in order to use the FPV system. If you don't choose to use the DJI Remote Controller, you can choose a receiver option for your transmitter and then bind to your own radio as usual.
