The rapidFIRE technology the rapidFIRE module is named after is the culmination of two years of research and development. It 'fuses' together the images from two 5.8GHz A/V receiver modules into one beautiful, interference-free image. Tearing and rolling are eliminated and our advanced noise-detection algorithms guarantee a clean and stable image at all times. The rapidFIRE module is optimized for use in environments with multi-path interference such as indoor racing, flying in abandoned buildings etc. but also offers superb sensitivity and selectivity outdoors and for long range use.

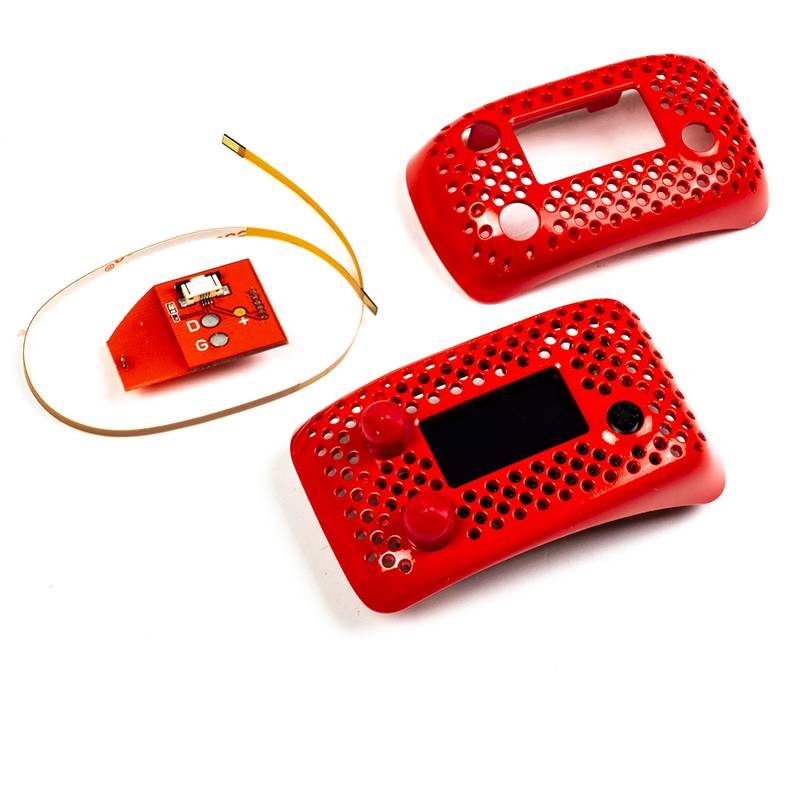

The rapidFIRE module is compatible with all Dominator LCD goggles including V1, V2, V3, SE, HD1, HD2, HD3, HDO, and Attitude V3 and V4. To guarantee this compatibility it ships with injection molded and beautifully painted module bay doors for both Dominator and Attitude goggles.

For Attitude and HDO goggles, the module is plug and play. For others, an included headtracker-bay aux power board, with flat-flex cable, is included which is recommended to be used for best results.

As expected from ImmersionRC we've future-proofed the rapidFIRE module by equipping it with an USB port, allowing future firmware updates and the adding of new features through our Vortex configuration app.

The rapidFIRE module enables easy menu navigation by means of a 5-way joystick which is used to scroll around the menus that are displayed on a responsive OLED display on the outside of the module, with feedback of critical parameters displayed on the OSD.

Key features included are a built-in spectrum analyzer, favorite channels with live single-channel spectrum display for manual tuning, band scanning and many, many more.

When used to time races, the rapidFIRE technology eliminates dropped frames from the FatShark DVR. Finally DVR footage can reliable be compared for photo-finishes.

width: 11cm
length: 8.5cm
height: 3.5cm

weight: 0.08kg
