Feature

—Full 3K premium quality and rigid carbon fiber

—5mm Arm with chamfered edge

—durable 5mm arms with quick switch

—3mm Single bottom plate

—2.5mm thickness light roof plate

—2mm thickness holder plate with four pressed nut

—High precise 3D print camera mount

—32mm large inside height

—20x20mm and 30x30mm FC mounting hole（enough for 3 board FC stacks）

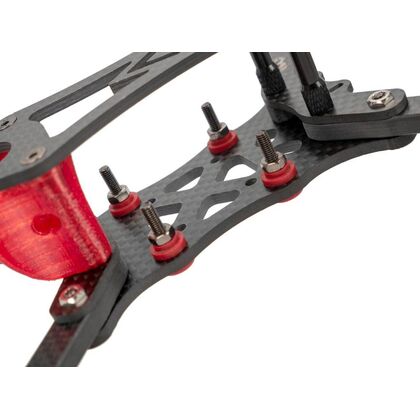

—TransTEC Lite Damping System , unique design soft grommets.

—the best deal of Laser Standout Racing Performance

*Packing list

Carbon parts

4 x 5mm removable chamfered Arms

1 x 3mm Bottom plate

2 x 2mm Top plates

1 x 2.5mm Roof plate

Metal Parts

M3x12 * 4

M3x16 * 4

M2.5x8 * 2

M2.5 Metal Nut * 2

M3 Metal Nut * 4

M3 Insert Nut * 4

M3x8 Countersunk screws * 4

M3 screws * 4

Accessories

TPU camera mount * 1

Battery strap 2pcs

Battery pad 1pcs

Package Included:
1x TransTEC Laser Lite Frame Kit

*Suggestion

Battery: 4S-6S Lipo 1000mah - 1800mah

Camera: only 19mm Micro size

Specifications

Item: TransTEC laser Lite 224 frame

Type: 5 " Racing Hybrid frame

Wheelbase: 224mm

Weight: 77g

Plate material: full 3K carbon fiber

Body: separate body

Arm thickness: 5mm (8mm wide)

Bottom plate thickness: 3mm

Roof/holder plate thickness: 2.5& 2mm

Standoff: 6061 aluminum alloy

Screws: 10.9/YFS 12.9 Steel screw

Camera TPU color: Red

Package dim: 19*14*3mm

Gross weight: 145g

Please check the support column of FAQ like Shipping Information before placing order

Note:

The further batch may slightly different from the description for user friendly control.
