The iFlight Micro BEC features step-down switch mode, high-efficiency synchronous rectification, and the ability to step down from an input voltage of up to 36V to a low output stable voltage, which makes it ideal for step-down voltage applications.

It offers a very compact solution to achieve 2A/3A output current over a wide input supply voltage (5 to 36V).

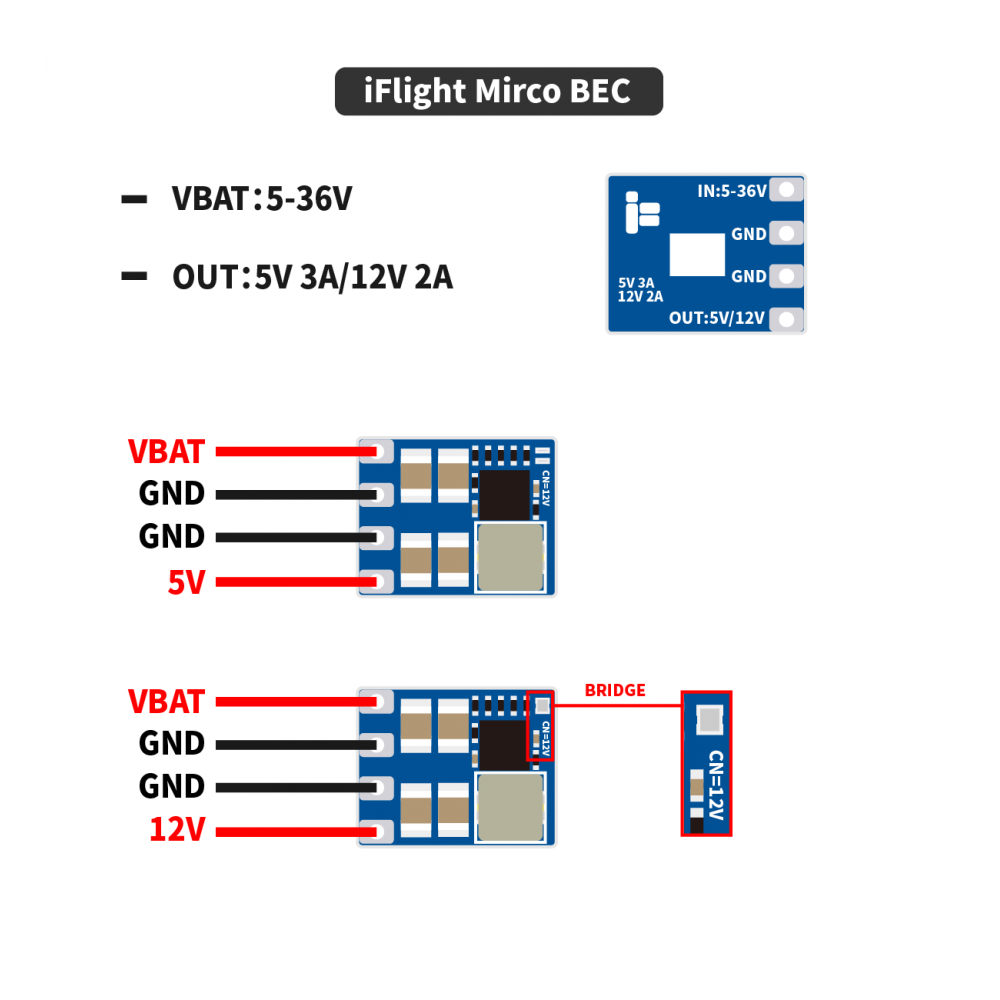

* Short connect ON-12V, the output voltage is 12V 2A. When disconnected, the output voltage is 5V 3A.

Features:

- Step-down switch mode
- High-efficiency synchronous
- Wide 5V to 36V Input voltage range
- The voltage output can be 5V or 12V adjustable. (default 5V)

Specs:

- Input voltage: 2-8S(5-36V)
- BEC Output: 5V/3A, 12V/2A (default 5V/3A)

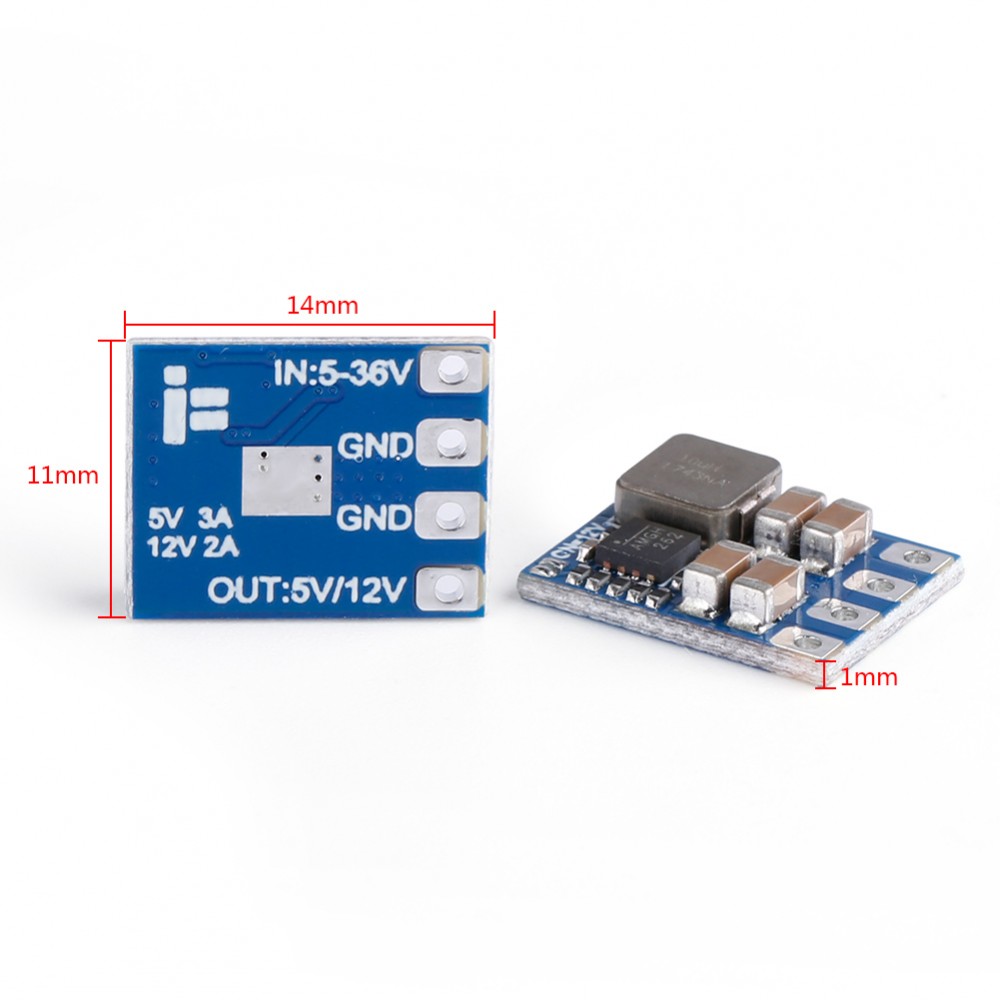

- Size: 14*11*1mm
- Pins distance: 2.54mm

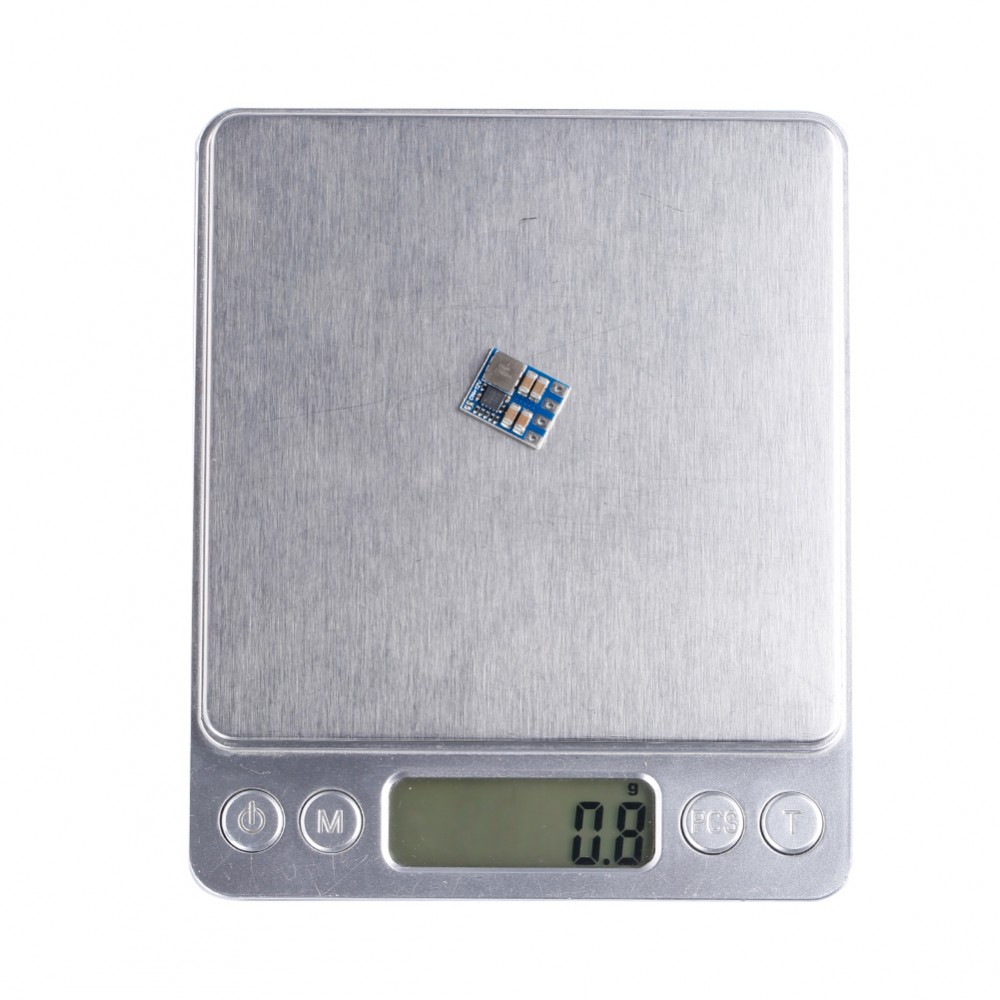

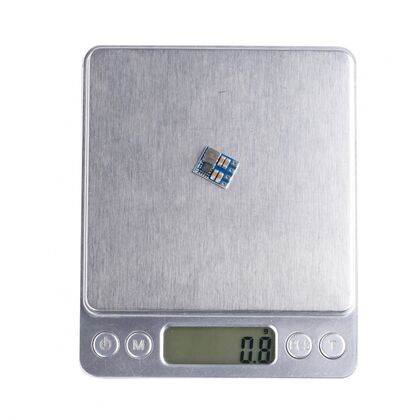

- Weight: 0.8g

Package Included:

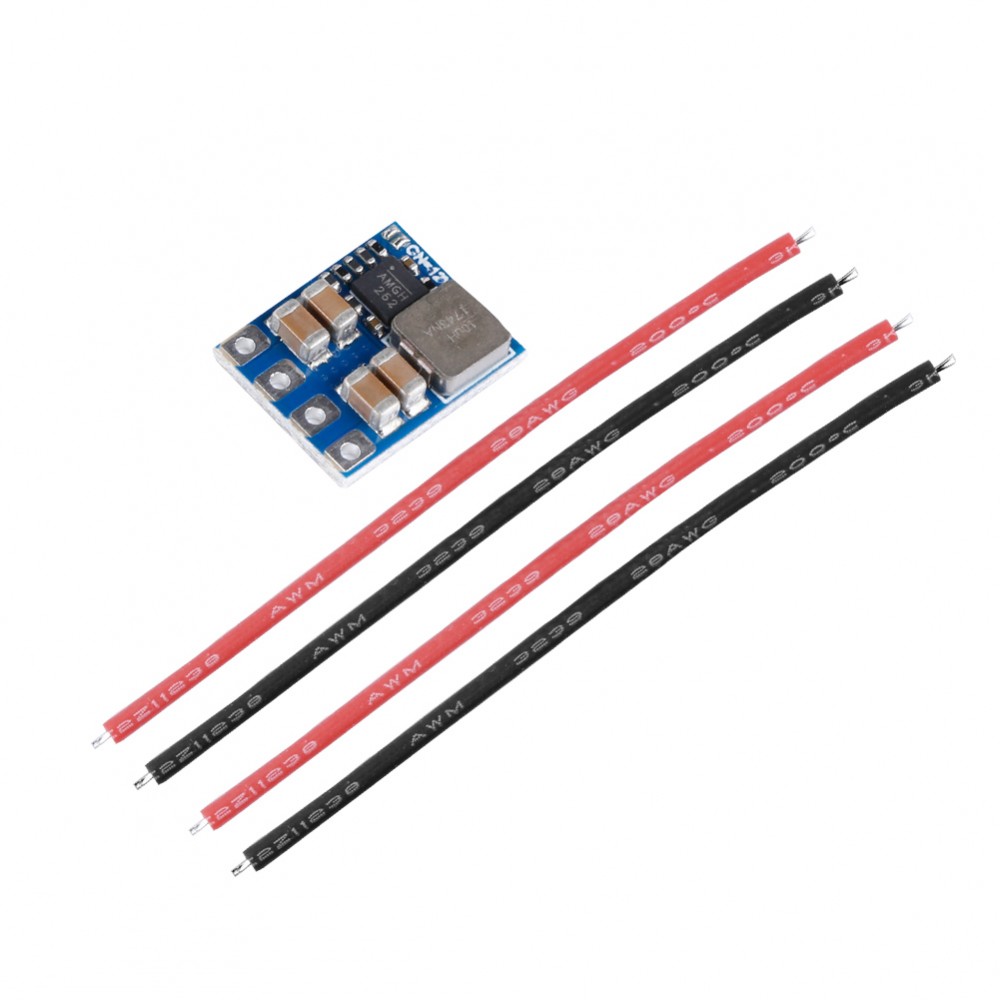

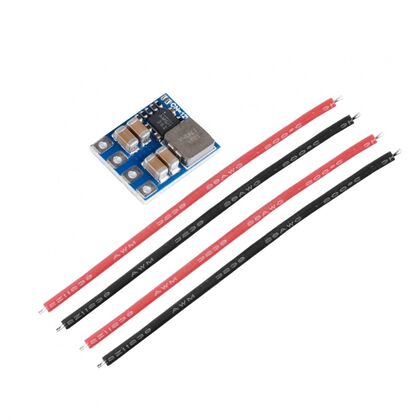

- iFlight Micro 2-8S BEC - 5V/12V Output * 1pc
