PowerBox iGyro SAT


109,00
3610
Δεν υπάρχει απόθεμα

Περιγραφή

Features

  • Extremely accurate triple-axis MEMS sensor
  • Special regulatory algorithm designed for fixed-wing model aircraft
  • Outputs the new FastTrack serial bus
  • Plug and play with the Pioneer, Competition SR2, Royal SR2 and all PowerBox receivers
  • Installed orientation can be selected
  • 16-bit processor for fast, high-resolution signal processing
  • Robust aluminium case

Technical Data

Operating voltage4.0V - 9.0V
Current drain Power-on state20mA
Maximum load current20A
Signal inputFastTrack Bus
Servo sockets5
Servo signal resolution0,5µs
Gyro regulationHeading- and Normalmode
Gyro sensor typeMEMS
Number of sensor axes3
Dimensions20 x 20 x 8 mm
Weight7g
Temperature range-30°C to +85°C

Product description

The iGyro SAT has been developed specifically to complement the new range of PowerBoxes like Pioneer, Competition SR2, Royal SR2 and PBR receivers by providing the modeller with a very simple means of adding an iGyro function. The iGyro SAT works as a sensor module, passing the data to the PowerBox or PBR- receiver via the FastTrack bus, which has been specially developed for the purpose.

When switched on, the PowerBox or the receiver automatically detects a connected iGyroSAT, and responds by making all the set-up functions available at the CORE or Jeti transmitter. Other systems are setup in the menu of the PowerBox.

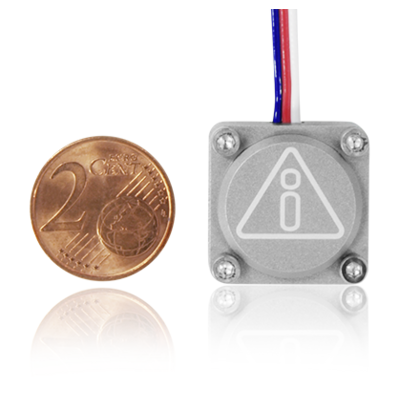

The module is so small that it can be installed anywhere in the model; the connecting lead can be extended to any length if necessary.The positv effect is that the iGyroSat can be place where turbine noise or engine vibrations have no negative effect to the gyro function.

Screenshots PowerBox CORE

Movies for PowerBox iGyro SAT

iGyro SAT video tutorial (english)
Tutorial: how this 3 axis gyro works by plugging directly into a receiver or PowerBox.
