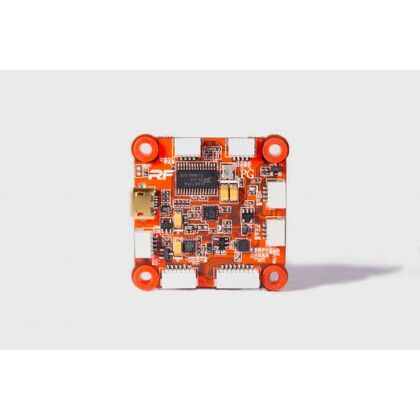

RevoltOSD

Building on the success of the Revolt, we have created the next iteration in flight controllers. Designed to add all the features customers have been asking for, as well as some new ideas. Builds now take 1/10th the time, due to the easy connector system. However, you still have the ability to direct solder, if you prefer. Flight controller now accepts full LIPO voltage, with up to a 6s rating, with plenty of filtering to give you the highest performance. Wiring kits will be available for all the most popular devices, so there is no need to solder anything, just plug and play. There will be extra pre-pined kits that allow you to customize for main different situations. We have even included an OSD and camera control on the latest Flight Controller.

The RaceFlight RevoltOSD flight controller is the most advanced, performance driven, flight controller ever designed. The RevoltOSD uses a powerful F405 MPU, accompanied with the High Speed Invensense 20602 gyro, allows it to take full advantage of RaceFlight Ones efficient code to run at 32KHz for the best Performance possible.

Performance

The RevoltOSD presents not only the BEST performance, but also the most STABLE performance due to the amazing vibration rejection technology implemented in RaceFlight. Our filters along with the integrated RaceFlight Gummies, allow your quad to stay in the air no matter what! Damaged propellers caused by that insane gate clip on turn 3? Not a problem. You can still finish the race! Endless days of tuning are now a thing of the past. Our boards come preloaded with software and defaults that should fly amazing for 99% of people.

In addition to the vibration rejection technology, the SSG (Invensense 20602) gives you the highest speeds currently possible with the lowest noise floor and highest sensitivity. The Invensense 20602 gyro has never been used in any flight controller before (except the Revolt) and gives you the fastest response time possible as if the quad can read your mind.

Setup Simplicity

Setting up the RevoltOSD is easy. The solder pin layout is easy to read with motor connections in each corner. Just solder the closest motors and the wizard handles the rest, you can put the Revolt in upside down and backwards just solder to the closest motor pad and the RF1 wizards will handle the rest. . The RevoltOSD also features DFU free updating and a self-healing and updating bootloader, just in case something does go wrong.

Zadig and other complicated driver configuration tools are a thing of the past with the RevoltOSD’s new driverless installation technology. Tired of messing around with Zadig or DFU to update your software? We were too, that’s why you no longer have to worry about messing around with them. The RevoltOSD also features DFU free updating and a self-healing and updating bootloader, just in case something does go wrong.

Features

• Fast building using connector system
• Full Lipo up to 6s rating
• Advanced filtering
• Plug and Play
• Built in internal OSD
• LED Driver for WS2812b programmable LED
• SBUS Inversion
• High Speed 32khz gyro, lowest noise floor and highest sensitivity gyro ever used
• Through hole solder pads – forms an I-Beam when soldered for extra strength
• FrSky Taranis, Spektrum, Futaba, JR, IBus, Sbus and other radio support
• Integrated buzzer driver
• Voltage and current ADC pins, for full voltage and current monitoring
• Full telemetry output support
• ESC flashing and configuration built into configurator
• Most active software development
• Selectable 3.3 voltage
• 3 serial uarts
• Bluetooth expandable
• F4 processor
• 16mb of flash memory
• GPS expandable
• Pins into RaceFlight Bolt 4in1 ESC
• Dimensions: 36mm x 36mm
• Mounting holes: 30.5mm squared to center of holes
• Weight: 6 grams
• Easily connectable to the RaceFlight Bolt with our special connector.

The RaceFlight Guarantee

Revolters will also get access to RaceFlight’s ticketed tech support which will include step-by-step help with installation, tuning, and anything else that may arise with your Revolt.

Congratulations

You are now a RaceFlight Revolter! Welcome to the exclusive club
