Click here to download Tx25 manual (English)
Description:

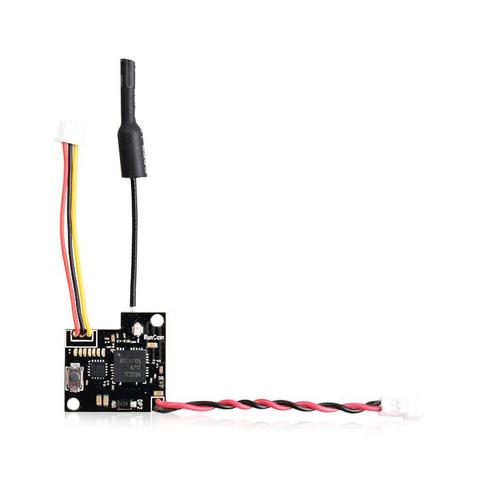

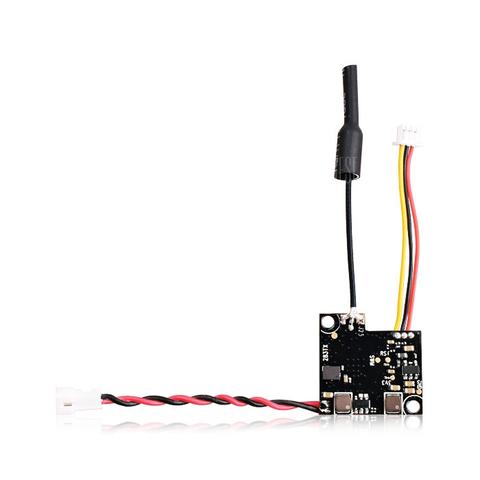

RunCam TX25 video transmitter has an amazingly small size, its PCB is only 19 x 19mm. Altogether with the 2dBi antenna, the weight is merely 2.5g, which seems incredible. It supports 4.5V output and 3.5 - 5.5V input, thus, it is compatible with a range of RunCam FPV cameras, including RunCam Micro Swift / Micro Swift 2 / Swift Mini / Swift Mini 2 / Swift 2 / Eagle 2 / Owl 2. The FPV transmitter is such a perfect choice for building mini indoor racers.
Main Features:
● 5.8G real-time image transmission, extremely low latency
● 48-channel coverage, including RaceBand ( Band 5 )
● Easy to adjust, with 7 LED lights indicating channels and bands
● Only 2.5g, supports 4.5V output, compatible with mini FPV cameras
Specifications:
Frequency: 5.8G
Number of channels: 48
Input voltage: 1S 3.5 - 5.5V
Working current: 150mA at 5V
Output voltage: 4.5V ( max. ) at 250mA
Video input impedance: 75 ohm
Antenna: 5.8G 2dBi omni antenna
PCB size: 19 x 19mm
Weight: 2.5g ( with antenna )
Compatibility: RunCam Micro Swift / Micro Swift 2 / Swift Mini / Swift Mini 2 / Swift 2 / Eagle 2 / Owl 2
SPECIFICATION
|
General |
Brand: RunCam FPV Equipments: AV Transmitter Functions: Video |
|---|---|
|
Dimension and Weight |
Product weight: 0.0025 kg Package weight: 0.0150 kg Product size (L x W x H): 1.90 x 1.90 x 0.20 cm / 0.75 x 0.75 x 0.08 inches Package size (L x W x H): 5.00 x 5.00 x 3.00 cm / 1.97 x 1.97 x 1.18 inches |
|
Package Contents |

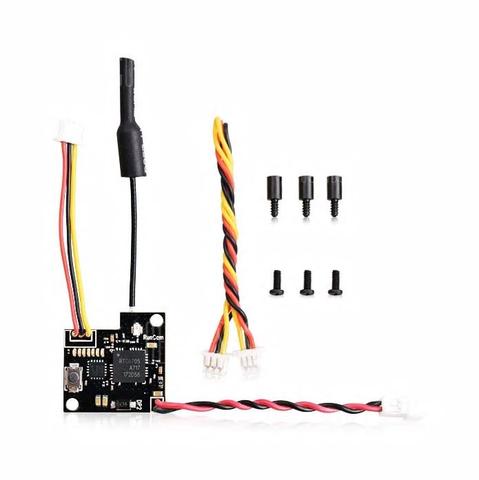

Package Contents: 1 x TX25 Video Transmitter, 1 x Cable, 1 x Set of Screws |
