FEATURES

Lock-on: The new designed locked frequency circuit coordinates software optimization, enables transmitting frequency of TANK to
keep the set point in any harsh (high interference) environment.Allows 8 drones racing in same band, without interference.

Power Lut: Built- in high precision power lookup table which performs milliwatt power calibration for all channel, full band has it’s own
unique power output. In multi pilot flight, all pilots will benefit from this and obtain a fair and consistent signal

Silent setting: The intelligent transmit circuit of RACE will not generate any interference signal during the switching and setting of VTX.
With PITMODE, you can set the VTX anytime and anywhere.

Smartaudio: Built- in SmartAudio protocol authorized by TBS. Which can be set with RGB LED by conventional double buttons, and also
access the SmartAudio protocol to set up and view the VTX information via the OSD menu

Pit mode: After entering the PITMODE, the VTX power will be reduced to a minimum. Your video feed is only visible to yourself at close
range, so don’t worry about disturbing others.

SPECIFICATION:

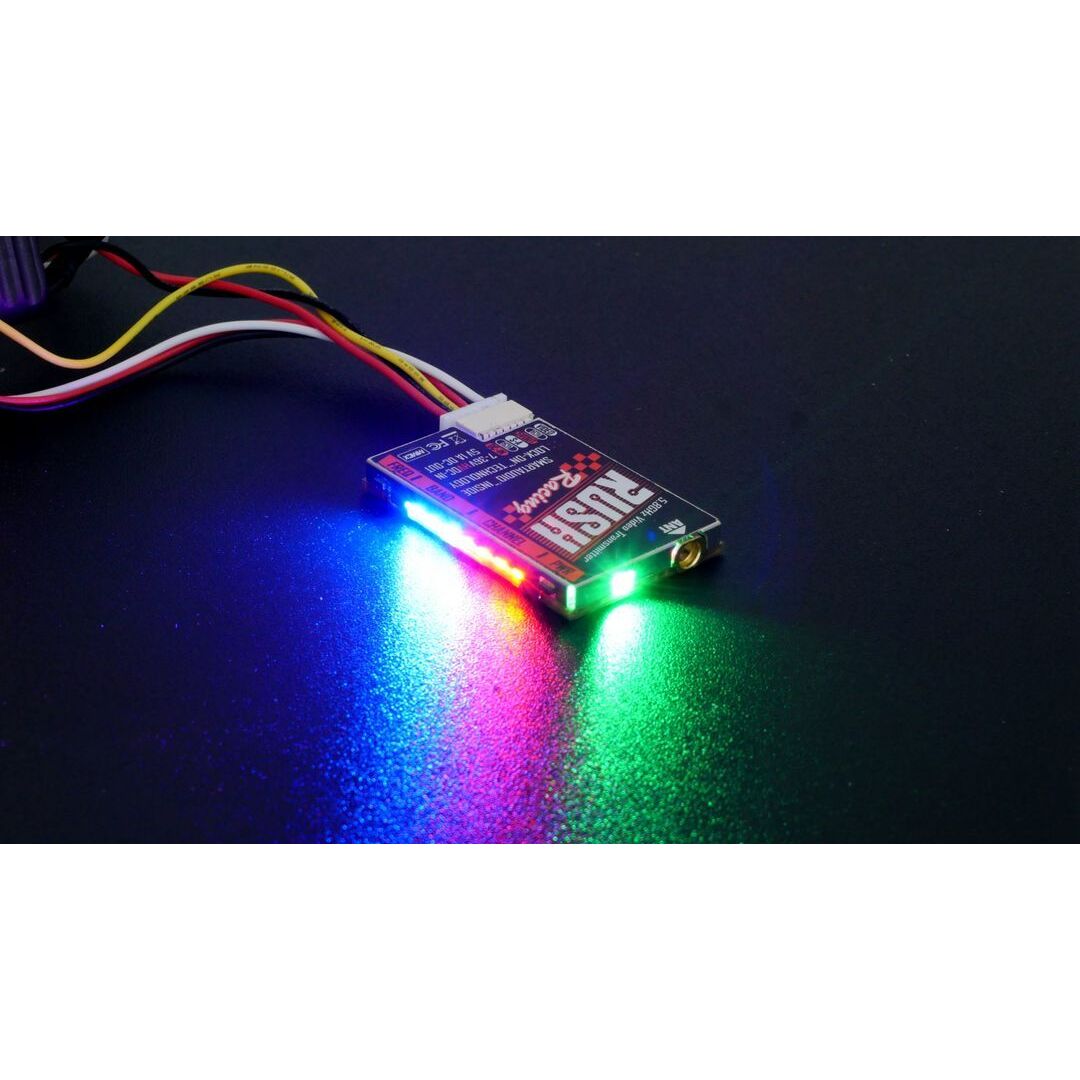

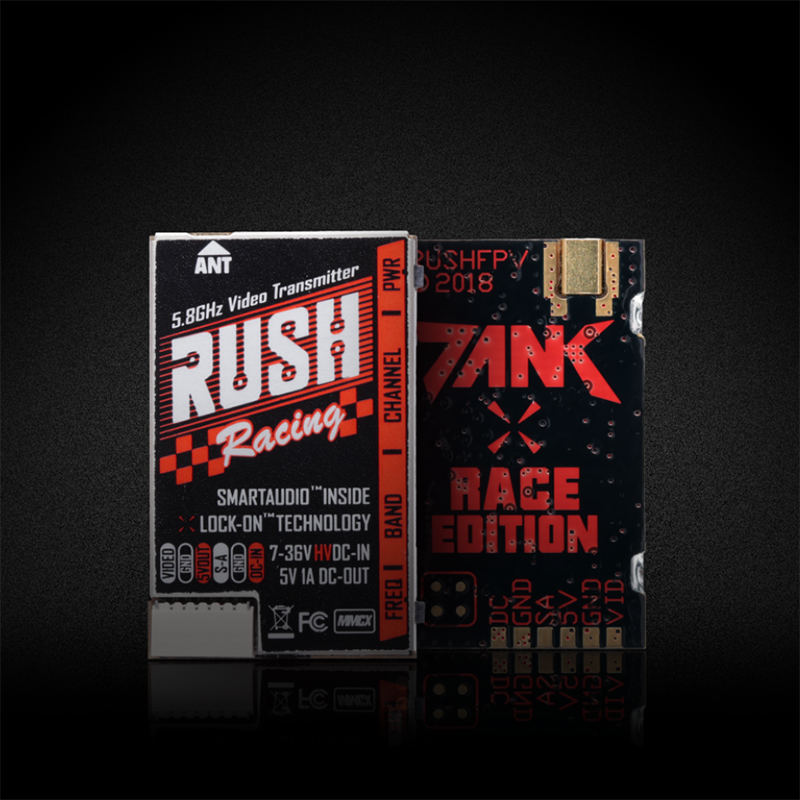

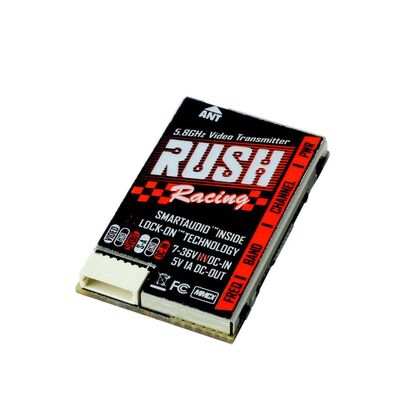

• Item name: Rush Race VTX
• Input Voltage: 7-25V DC (2-8s LiPo)
• Output Voltage: 5V 1A
• Channels: 37CH
• Power: PIT/25/200/500mW
• Hole Size: M3
• Dimensions: 28*21.5*4mm
• Weight: 5.7g
• Connector: MMCX
• Serial Protocol: TBS SmartAudio V1

PACKAGE INCLUDES

• 1X Rush Race VTX
• 1X Cable Kit
