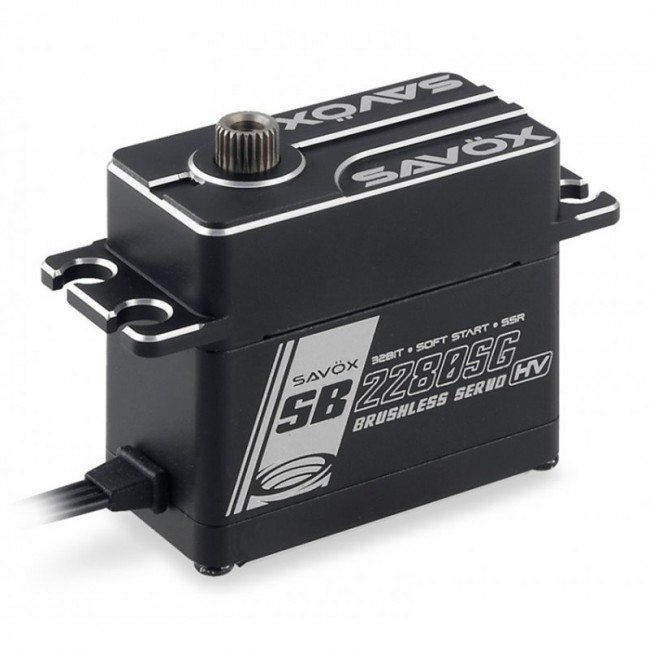

Servo - SB-2280SG - Digital - High Voltage - Brushless Motor - Steel Gears

Features:
• New PCB, updated MCU from 8-bit to 32-bit
• All aluminum case and new design
• Soft start and SSR accepted
• Ultra Torque
• High Voltage

Specifications:
• Torque @ 6V: 40kg/cm
• Torque @ 7.4V: 50kg/cm
• Torque @ 8.4V: 60kg/cm
• Speed @ 6V: 0.17sec/60deg
• Speed @ 7.4V: 0.14sec/60deg
• Speed @ 8.4V: 0.12sec/60deg
• Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
• Weight: 83g

Technical Details:
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 3BB

• Motor Type: Brushless
