No Bluetooth signal interference during the flight

◇Throttle Armed, turn off the Bluetooth-UART Adapter
◇Throttle Disarmed, turn on the Bluetooth-UART Adapter

Parameter
◇Output Power: 0dBm
◇Receiver Sensitivity: -94 dBm
◇External Interfaces: BROADCAST SWITCH, TX, RX, 3~5V DC Input, GND
◇Transmission rate: Bidirectional 1K/S
◇Bluetooth Protocol: Bluetooth Specification V4.0 BLE
◇Transmission distance: 30m
◇Frequency range: 2400 MHZ - 2483.5MHZ(2.4G ISM Band)
◇Baud rate: 2400,4800,9600,14400,19200(default),28800,38400,
57600,76800,115200,230400
◇Operating Voltage: 3.3V - 5.0V DC
◇Working current: 8.3mA~10mA
◇Weight: 1.4g
◇Dimensions: 27*15*4.5mm

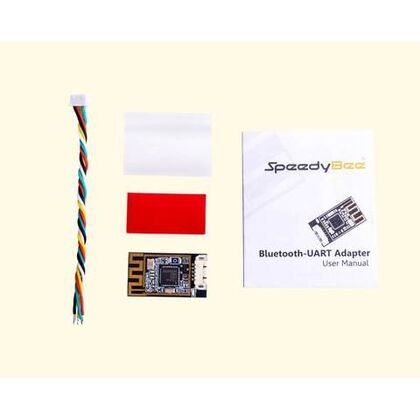

Package

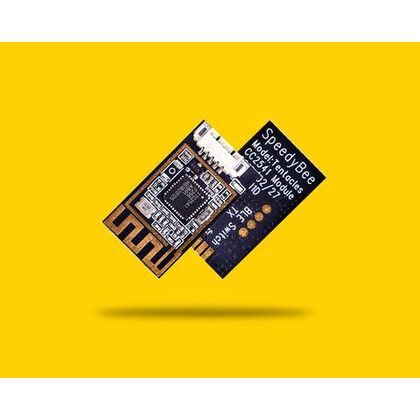

◇1*Bluetooth PCB
◇1*5PIN Cable
◇1*3M Double-sided Tapes
◇1*Heat shrink tube

◇1*Manual
