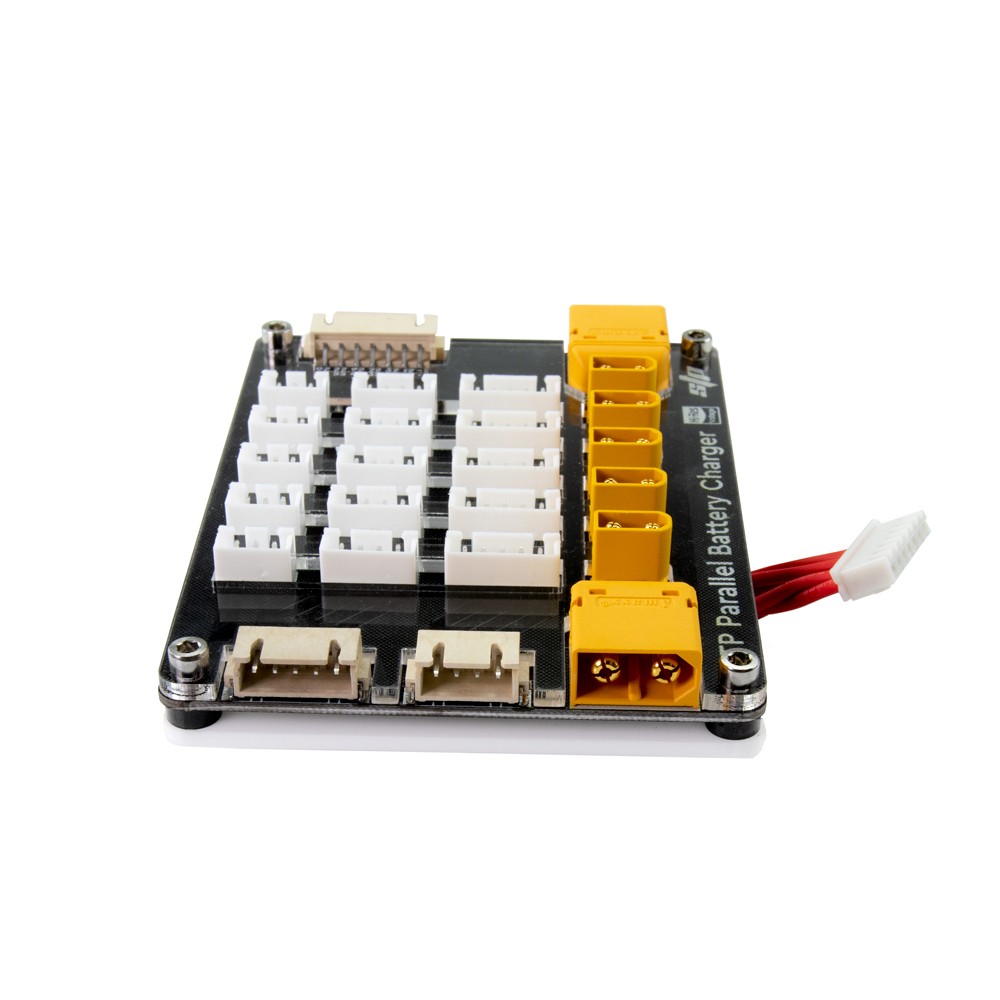

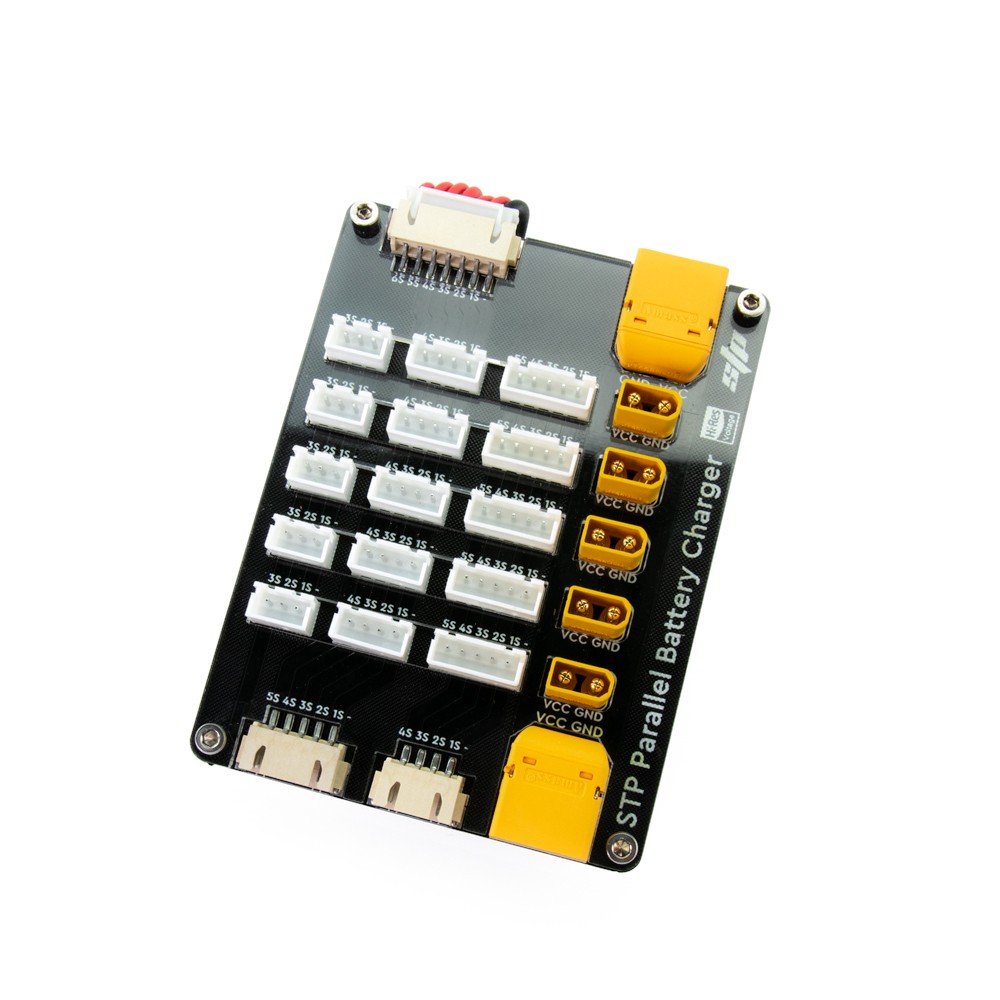

A perfect tool to keep all those micro batteries in tip-top shape. Charge and balance up to 6 batteries at the same time with this XT30/60 Parallel Balance Charging Board. Compatible with 2-4s LiPo batteries.

Has slots for five XT-30 batteries charging at 2-4S and one slot for an XT-60 at 3-4S.

Specifications

• Material: Acrylic board
• Dimension: 60*100*20MM
• Weight: 75g
• Output Plugs
  • 5 x XT-30 at 2-4S
  • 1 x XT-60 at 3-4S
• MAX XT-60 Single Port Input Current: 30A (10℃) / 45A (30℃)
• MAX XT-60 Single Port Output Current: 30A (10℃) / 45A (30℃)
• MAX XT-30 Single Port Output Current: 30A (10℃) / 45A (30℃)
• MAX Balance Port Input Current: 10A per wire (10℃) / 15A per wire (30℃)
• MAX Balance Port Output Current: 10A per wire (10℃) / 15A per wire (30℃)

Note: When balance charging, all voltages (cell counts) must be the same across batteries. Always practice safe charging practices. Never leave batteries charging unattended.

Note: You will need a female XT-60 adapter cable to plug your charger into this balance board. You cannot charge batteries with this board alone.

Includes

• 1 x STP XT30/60 Parallel Balance Charging Board (2-4S)
