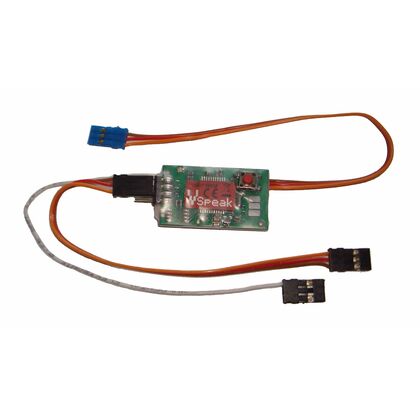

Swiwin ECU V3 Converter for Turbine Telemetry from VSpeak

VSpeak ECU Converter provides the data of the Swiwin ECU on the telemetry system of your remote control system.

The VSpeak ECU converter is plugged with it's 3-pin blue UNI servo plug on the ECU at the port marked TELEMETRY.
The ECU data can be transmitted by the ECU Converter over the telemetry channel to the radio.
The ECU Converter calculates the fuel consumption and also transmits it to the respective transmitter of the model pilot.
Furthermore, the function Taxitank is setable.

The VSpeak ECU Converter is compatible with the following remote control systems:
PowerBox Core P²-Bus
Jeti Duplex EX
Multiplex MLink (MSB)
Graupner HoTT
Futaba
FrSky S.Port
JR PROPO
Spektrum (X-Bus)

The respective remote control system can be set using the button of the ECU converter.

With the remote control systems Jeti Duplex, PowerBox and Graupner HoTT all settings of the converter can be made from the transmitter, on all other systems individual parameters can be set with the help of a micro SD card.

Detailed information about VSpeak ECU Converter can be found in the detailed Manual
