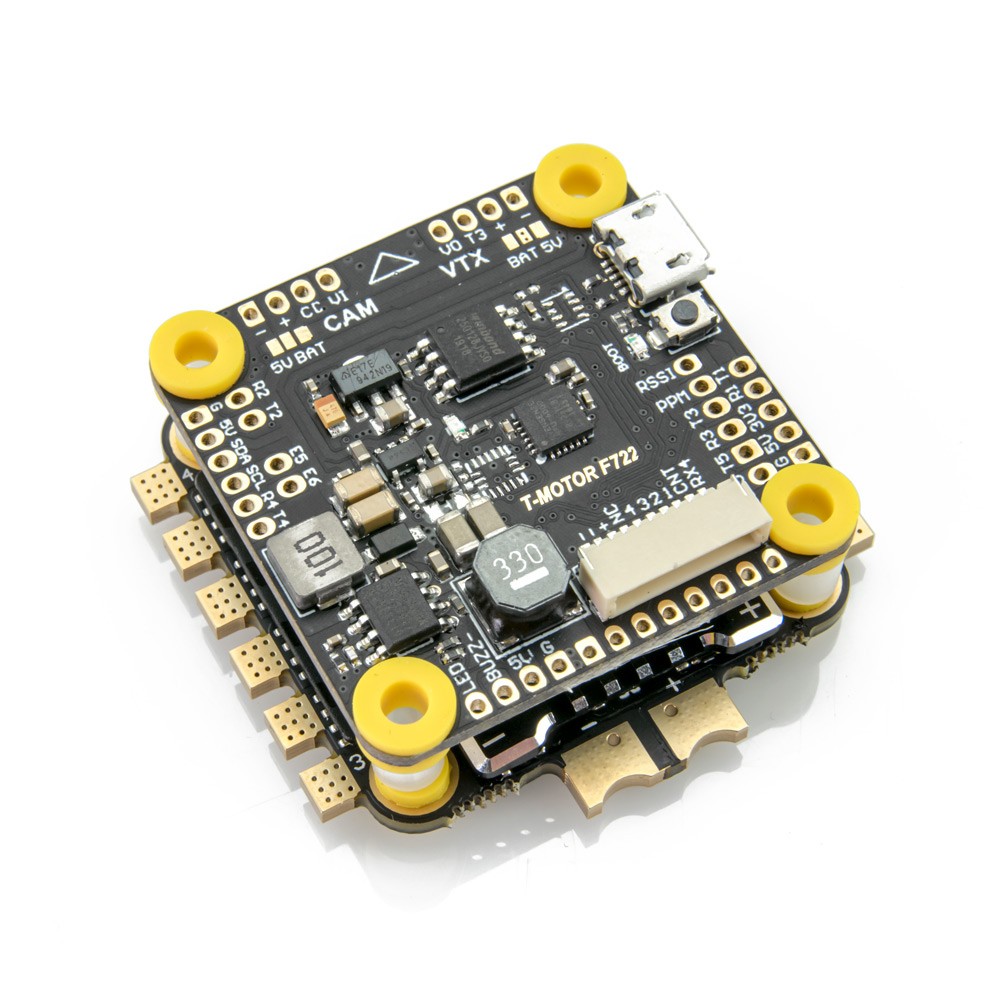

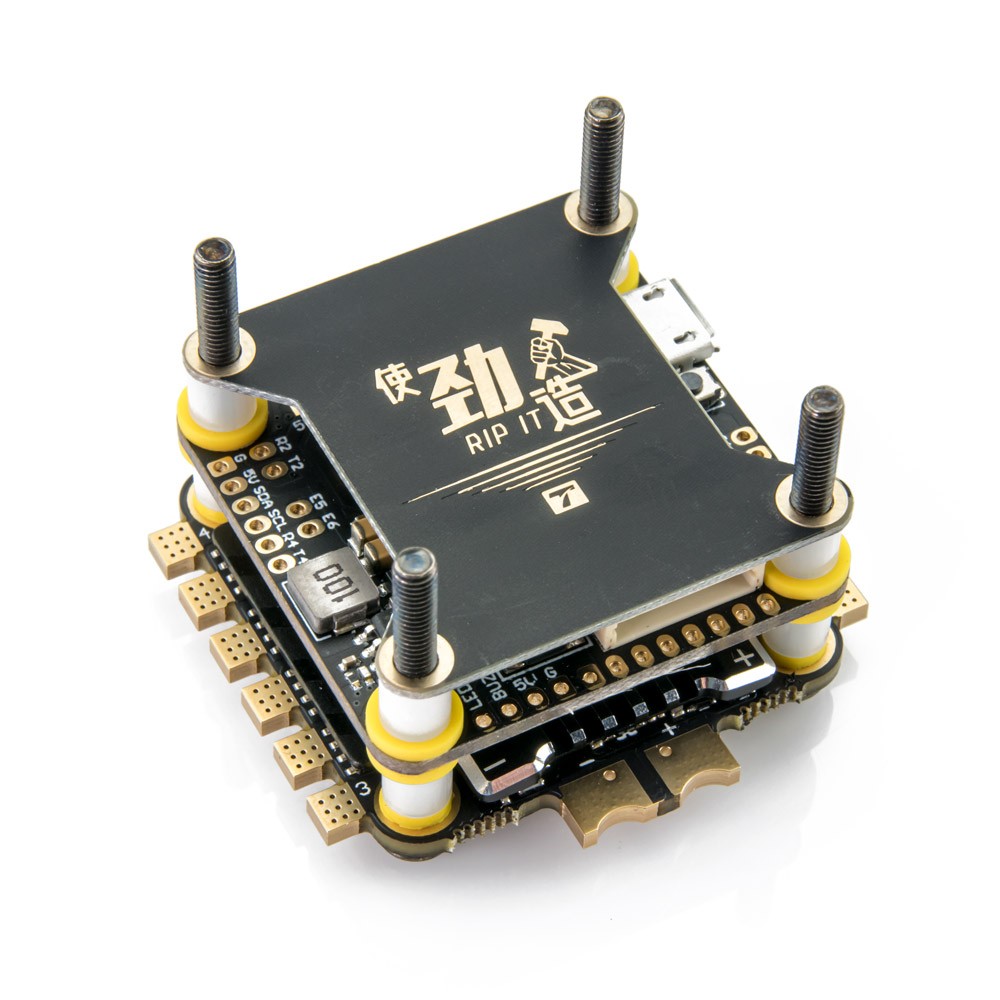

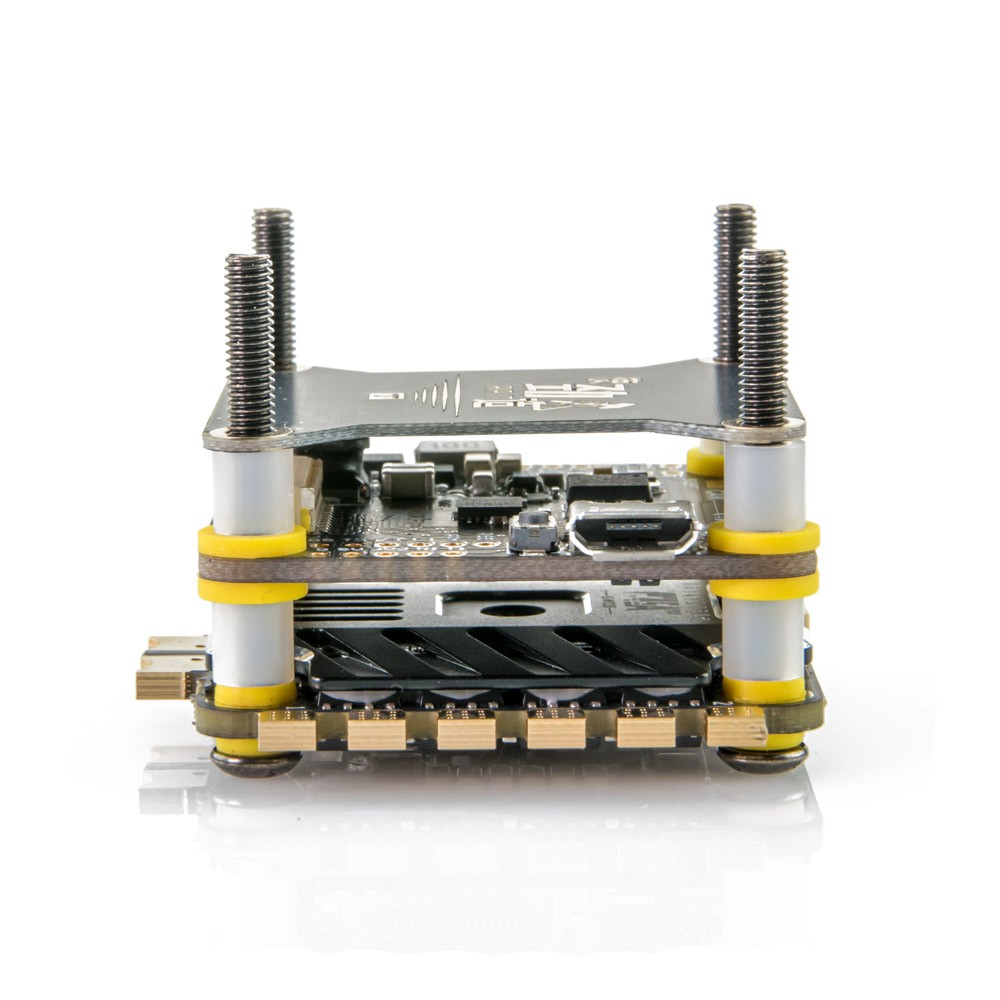

T-Motor's powerful F7 Flight Controller combined with the F45A V2 3-6S BLHeli_32 4-in-1 ESC will give you optimized performance and seamless integration in your electronics stack.

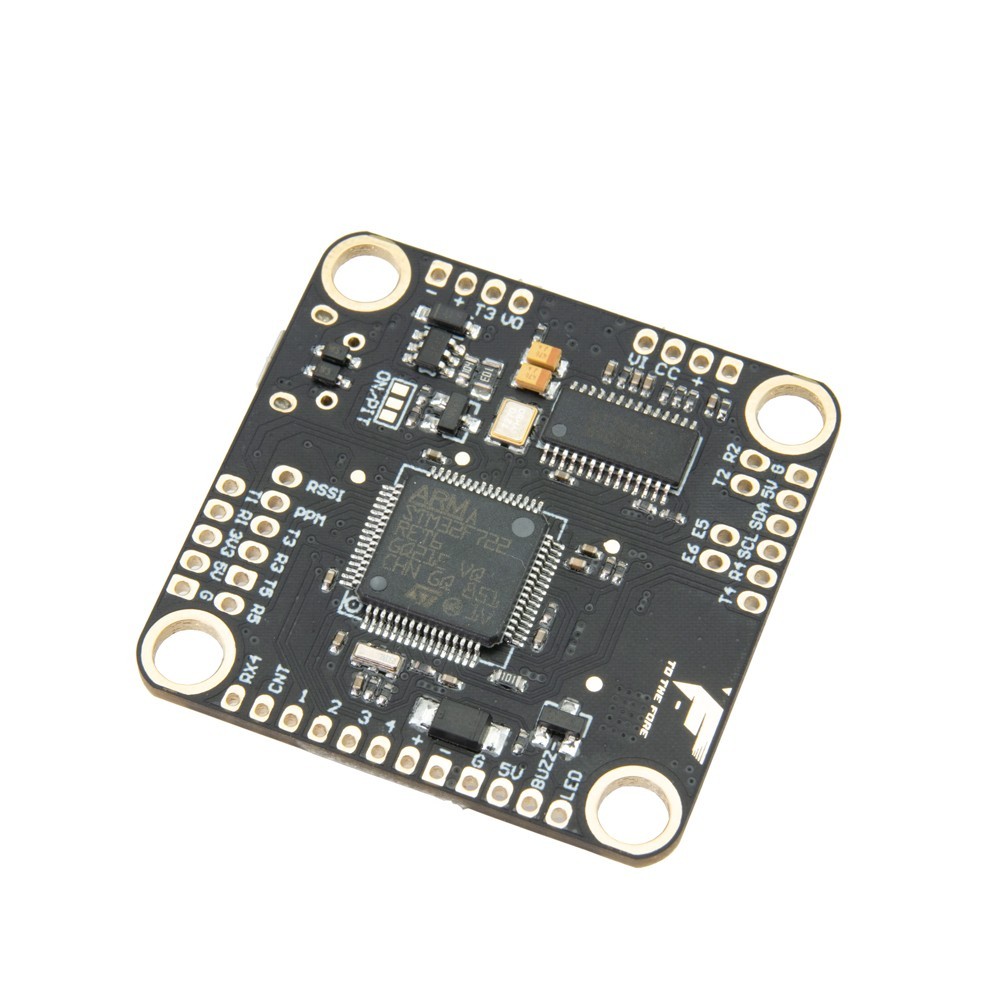

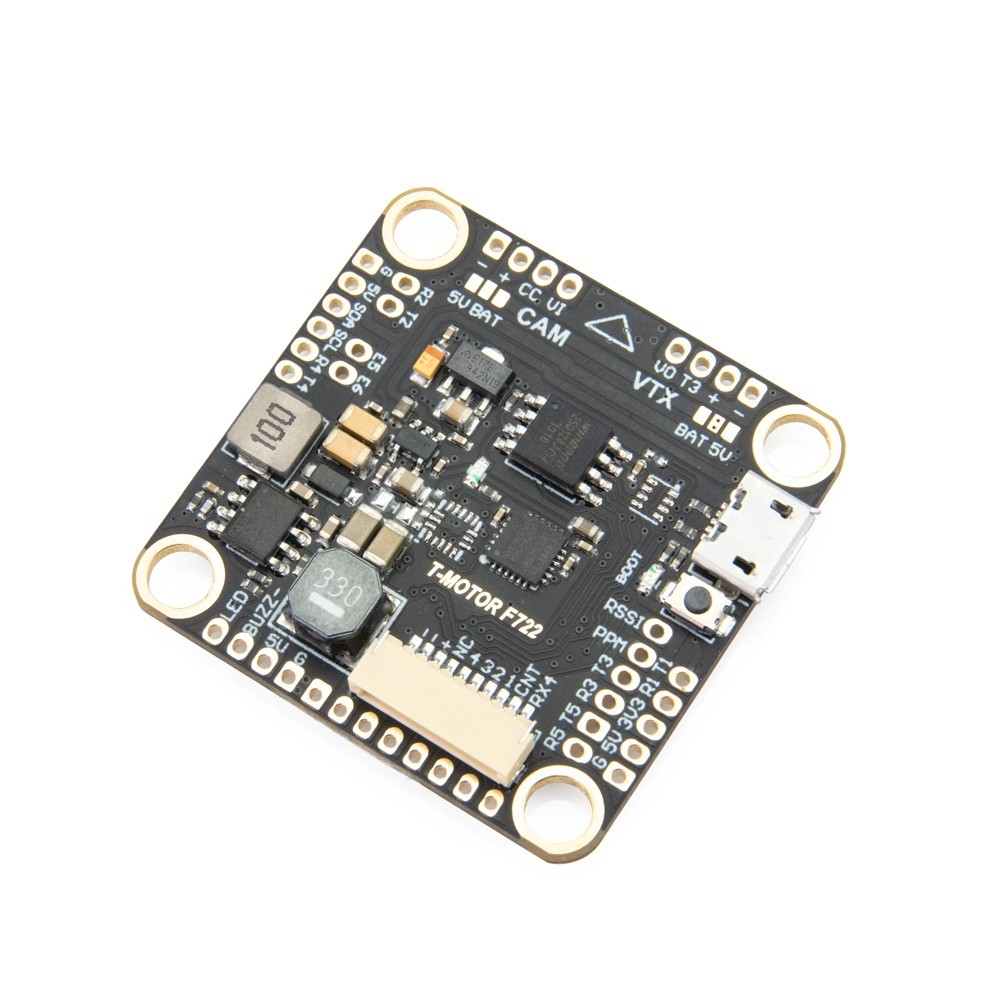

T-Motor F7 Flight Controller

• MCU: STMF722RET6
• Gyro: MPU6000
• Memory: 16M
• Input Voltage: 12v-25-2v (3-6S)
• BEC: 5V/2A
• Dimensions: 37mm x 37mm
• Mounting Holes: 30.5mm x 30.5mm
• Weight: 7.4g
• Firmware Target: TMOTORF7 (Betaflight)

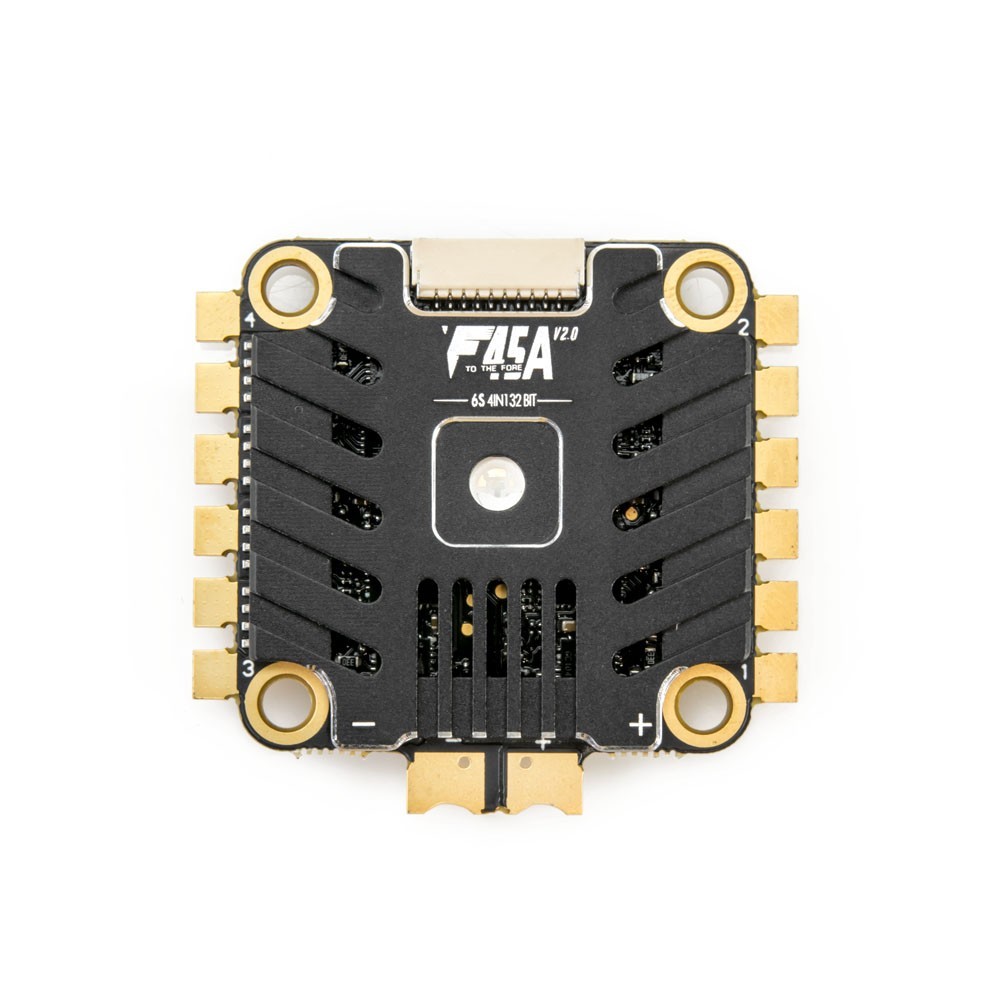

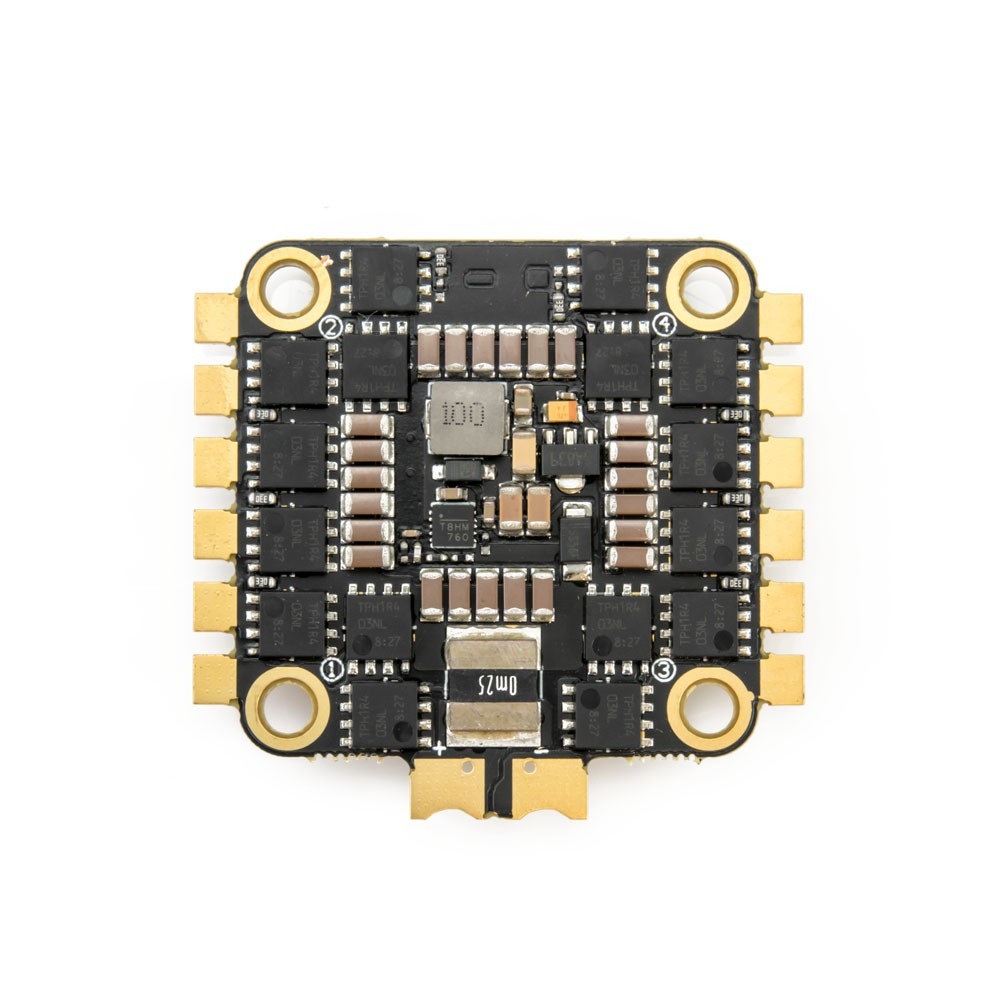

T-Motor F45A 3-6S BLHeli_32 4-in-1 ESC

Updated to new layout with pin harness on the heatsink side. LED is also now included like in the F55A Pro II.

This ESC is T-Motor's 4-in-1 version of their popular F45A ESC. This 4-in-1 ESC packs 45A into an industrialized PCB layout made with premium features such as a 32bit main control chip, BLHeli_32 firmware, and 6s support.

The F45A 4-in-1 comes with a heatsink attached to keep heat away from sensitive electronics.

Another small bonus is the 4 x motor wire PCBs that come with this ESC. These go on your quad arms and help prevent damage to your motor wires from prop strikes or other damage. A neat little touch to include them.

Features

• 32bit Main Control Chip: Compared with traditional MCU of 8 bit, 32bit stm32f051 main control chip enjoys the advantage of fast computing speed and multiple functions.
• Fast Response Speed: Prompt and accurate response on throttle signal receiving for the euphoria from zero lag operation.
• Original BLHeli_32 Firmware: Original BLHeli_32 firmware with powerful performance and diverse functions capable of ESC parameter setting and firmware upgrading makes the ESC far more reliable and efficient.

Specifications

• Model No: F45A 6S 4IN1 32bit
• Con. Current: 4*45A
• Peak Current (10S): 4*53A
• Lipo: 3-6S
• Weight: 18g

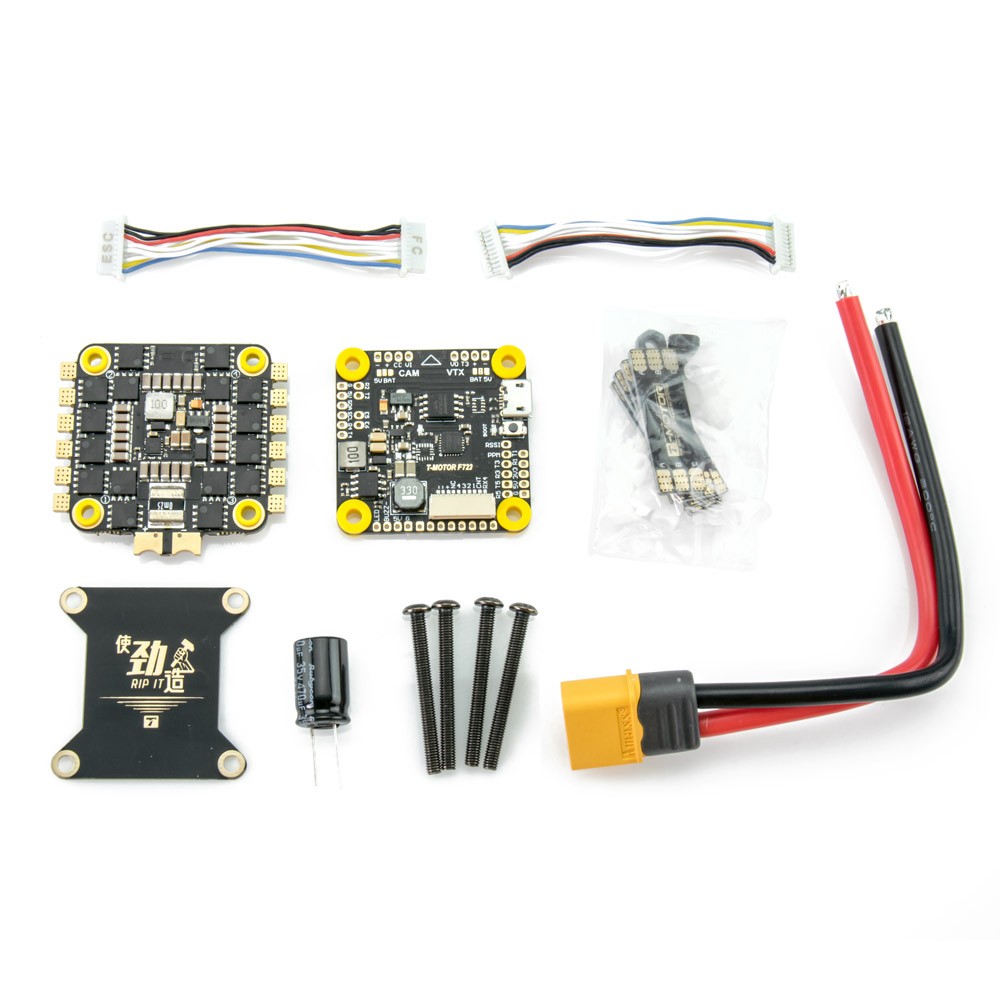

Includes

• 1 x T-Motor F7 Flight Controller
• 1 x T-Motor F45A 3-6S 4-in-1 ESC
• 1 x XT-60 Pigtail
• 1 x Insulation Board
• 4 x Link Board
• 4 x M3x30 Screw
• 2 x FC to ESC Cable
• 4 x Non-Slip Nut
• 16 x Spacers
• 1 x Capacitor
