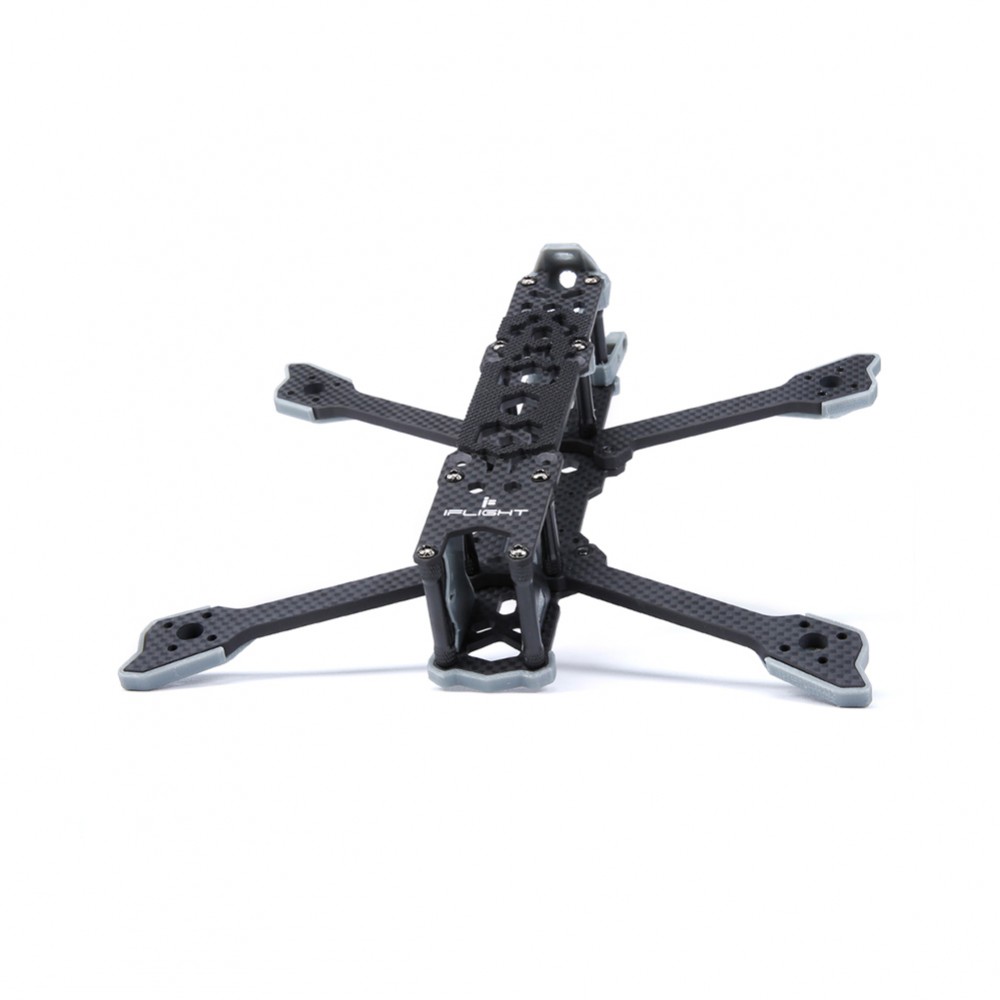

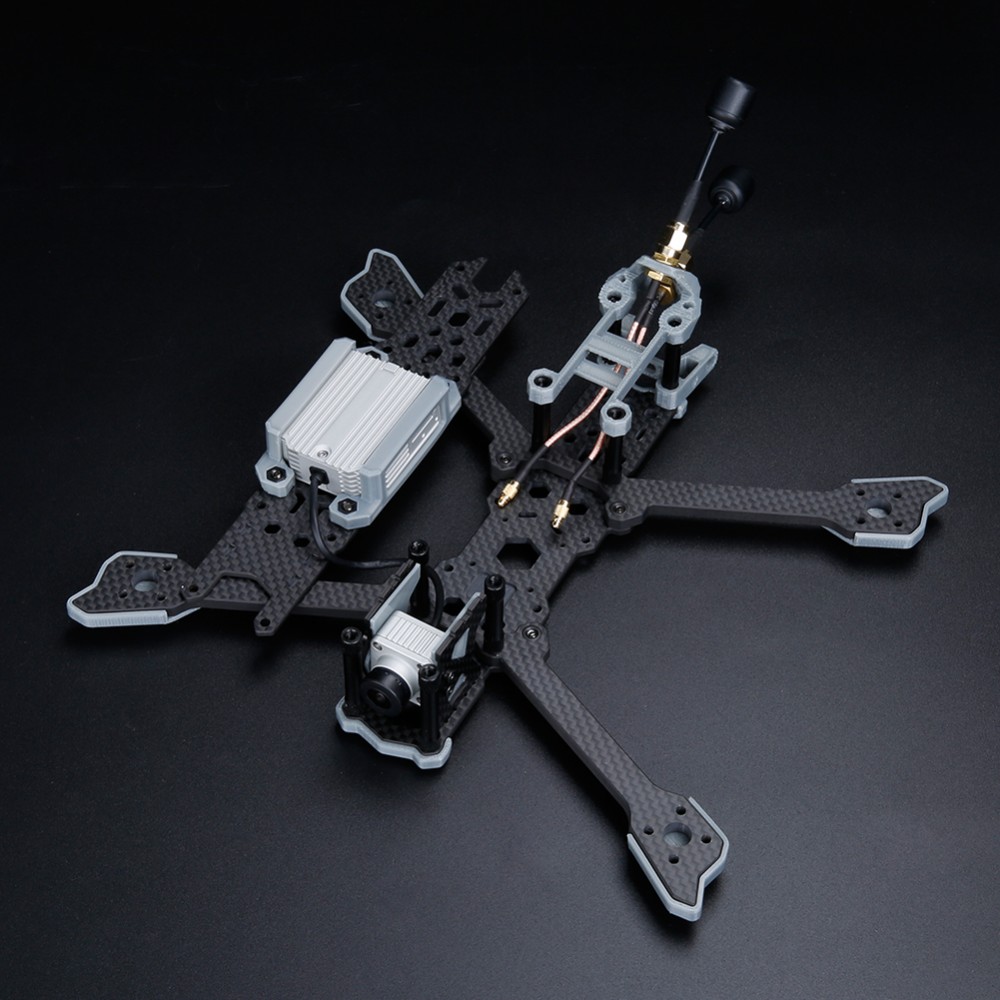

The TITAN FH5 Freestyle FPV Frame was designed for the DJI Digital FPV System. It is also suited for a 5-inch propeller power system and flight controllers. With the 5-inch propeller power system, users have ensured a super great flying experience. Soft TPU material helps to protect the camera and antenna in the event of a crash.

Features:

- Popular H style configuration, prop in View

- Boomerang arms

- Optimized weight distribution: DJI unit and Stack centered

- Fits both 30.5x and 20x stacks

- Full 3K Carbon Fiber airframe with chamfered arm

- 223mm wheelbase, weight: 131.5g dry weight without TPU parts

Specifications:

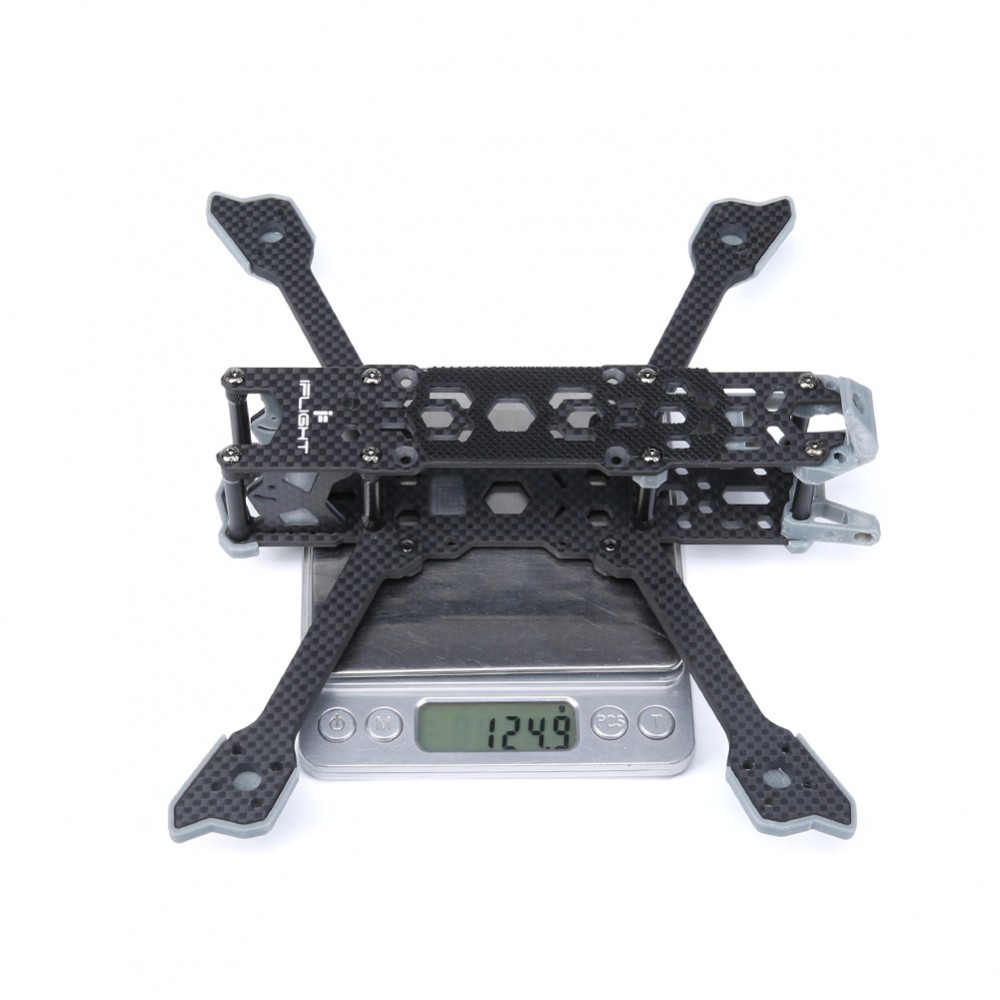

- Weight: 131.5 (with TPU parts, and battery anti-slip pads)

- Wheelbase: 223mm

- Main body dimension: 177*136mm

- Bottom to top distance: 35mm

- Arm thickness: 5mm

- Bottom plate thickness: 3mm

- Top plate thickness: 2.5mm

- Camera plate thickness: 1.5mm( 2.5mm included TPU inserts)

- Mounting Holes: 30.5*30.5mm

- Support camera size: 19*19mm 22*22mm

- Recommended motors: 22xx, 23xx

Package included:

-1 x TITAN FH5 HD Frame

-1 x Screw Bag

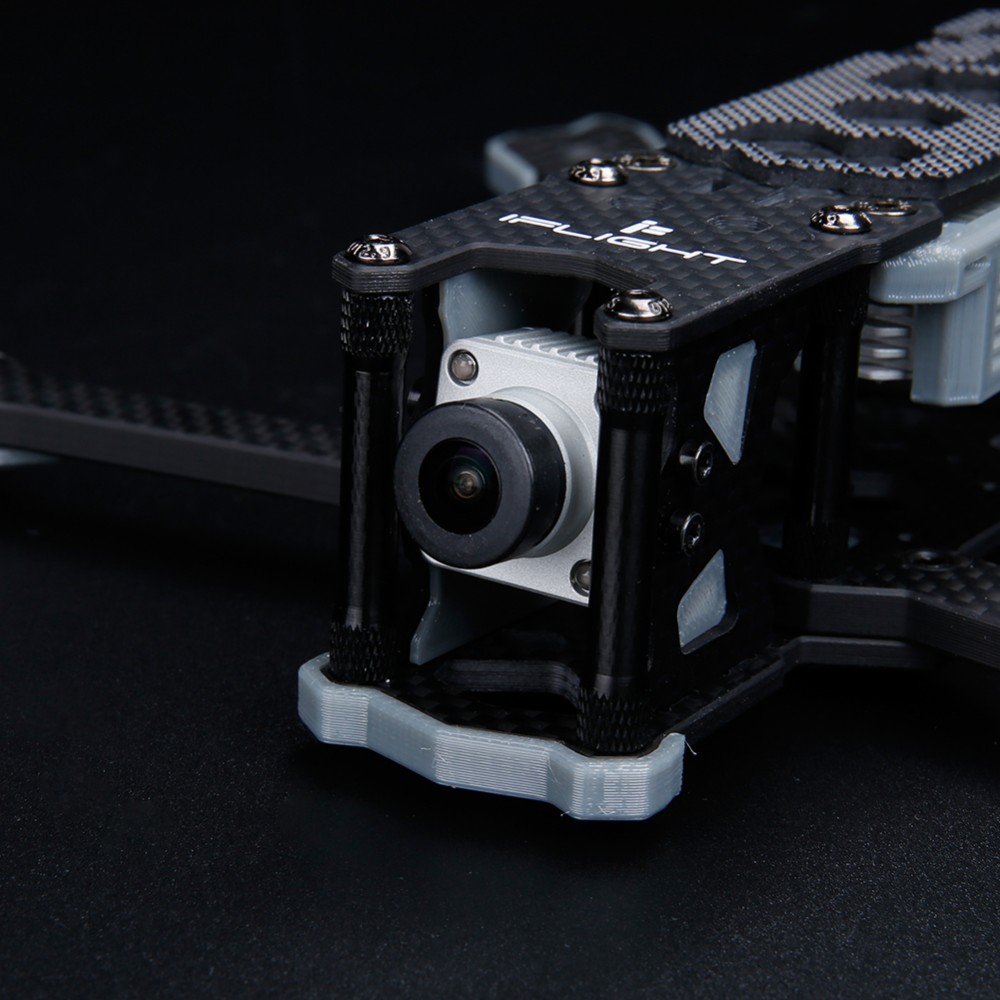

-1 x TPU Camera mount adapters

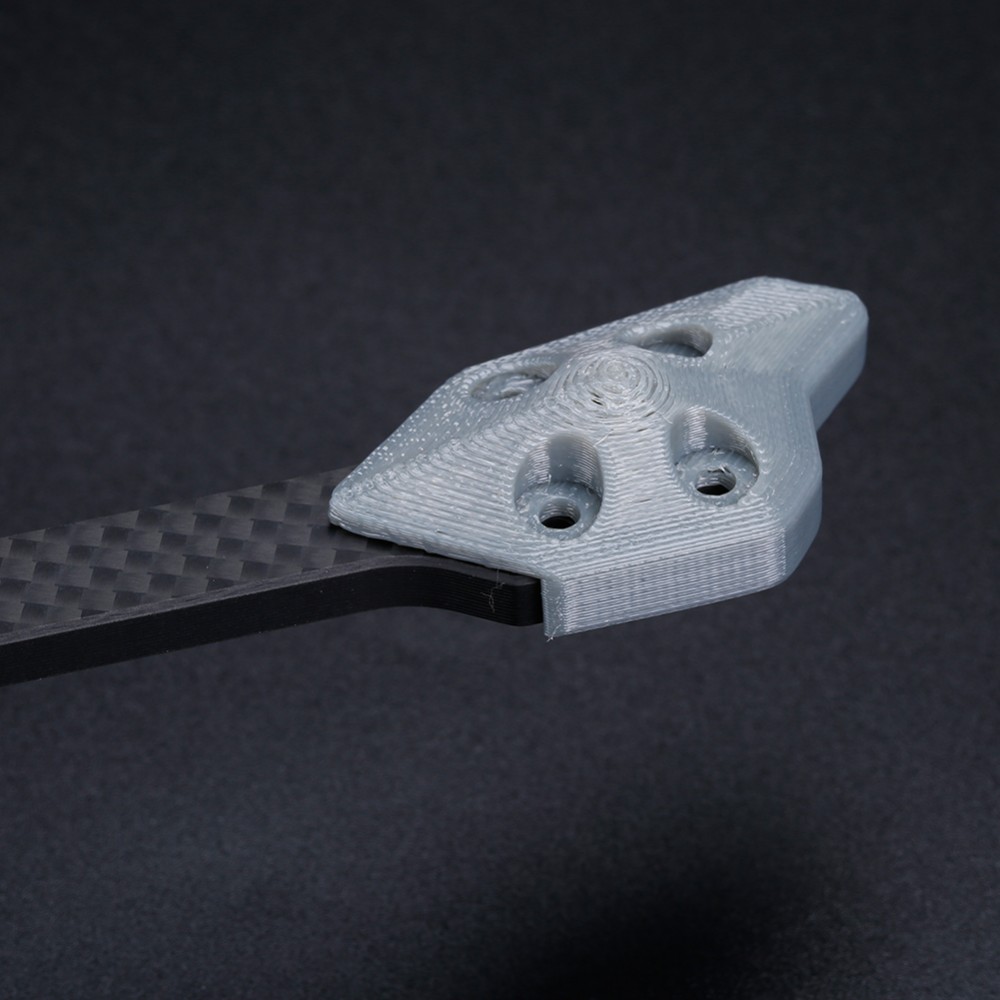

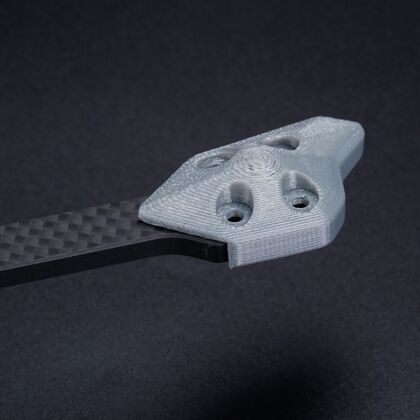

-4 x Arm guard/Motor mount

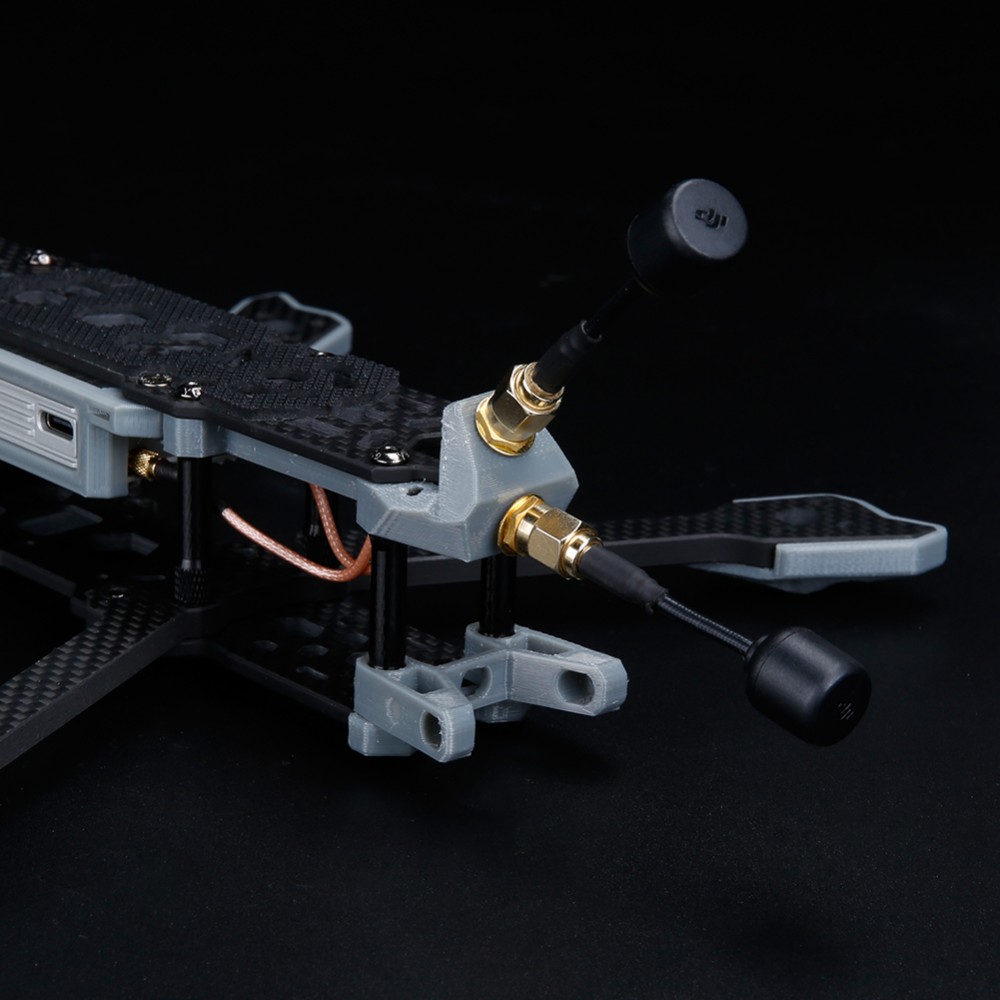

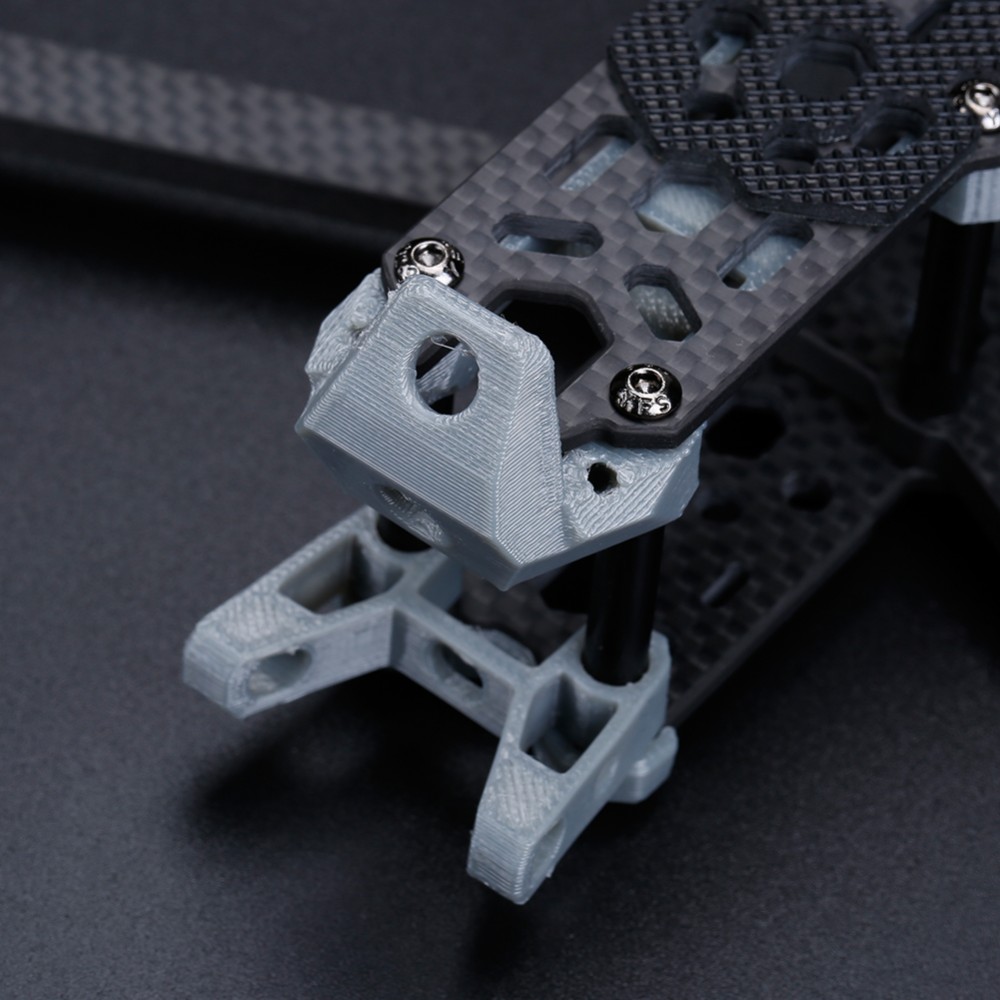

-1 x TPU DJI Air Unit Antenna Mount

-1 x TPU bottom plate front protective mount

-1 x TPU bottom plate rear protective mount

-1 x Battery Anti-slip Mat

-2 x Battery Straps
