P200 With EU Plug
Product description:

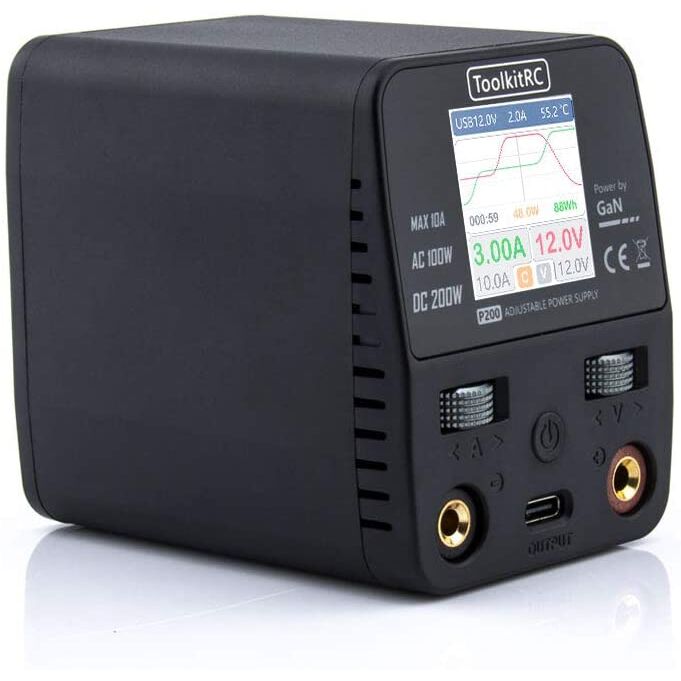

P200 is a mini desktop adjustable power supply, with AC or DC two input modes, built-in 100W GaN AC power supply, IPS wide-angle display screen records and curve display voltage and current, and other features.

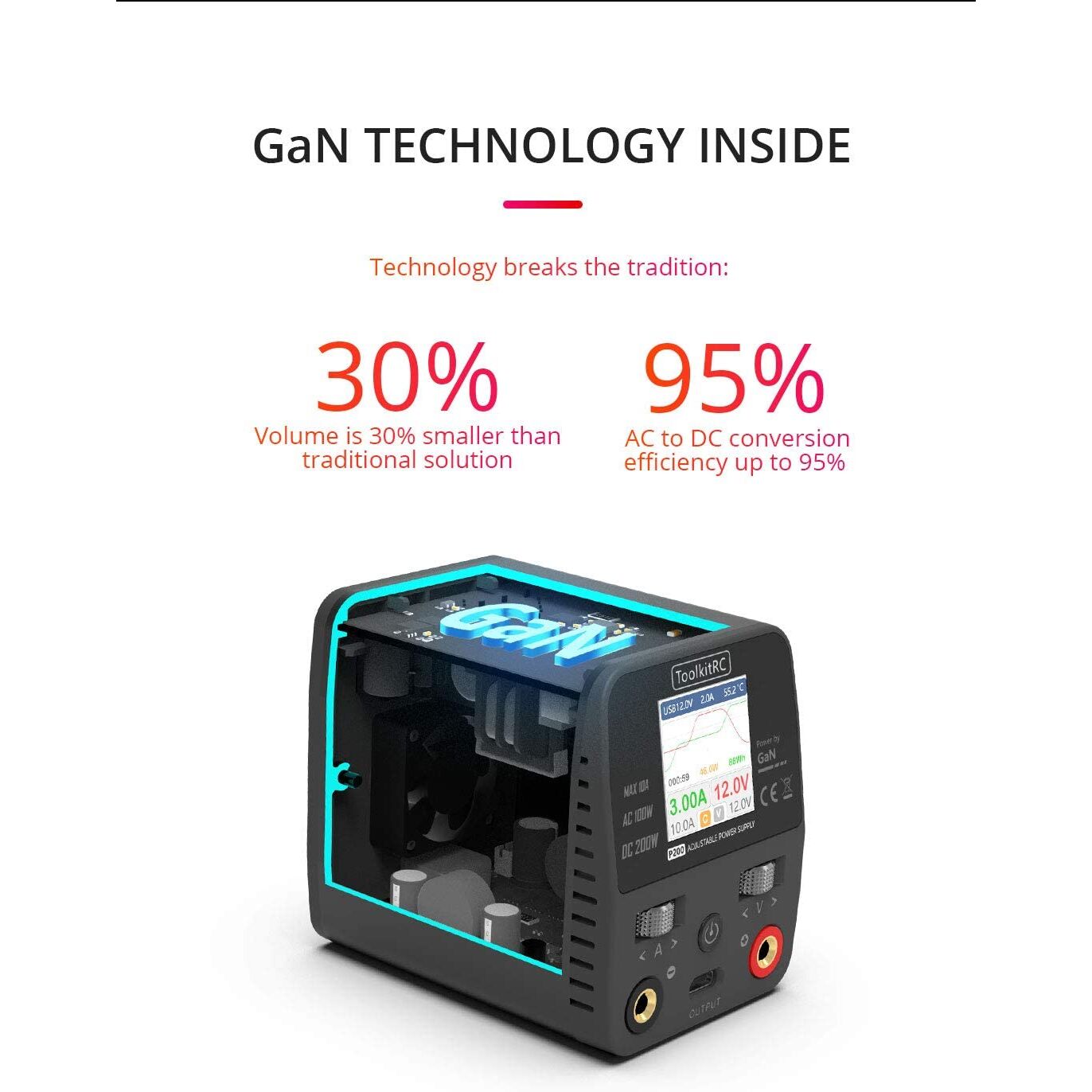

Built-in gallium nitride (GaN) small AC power supply.

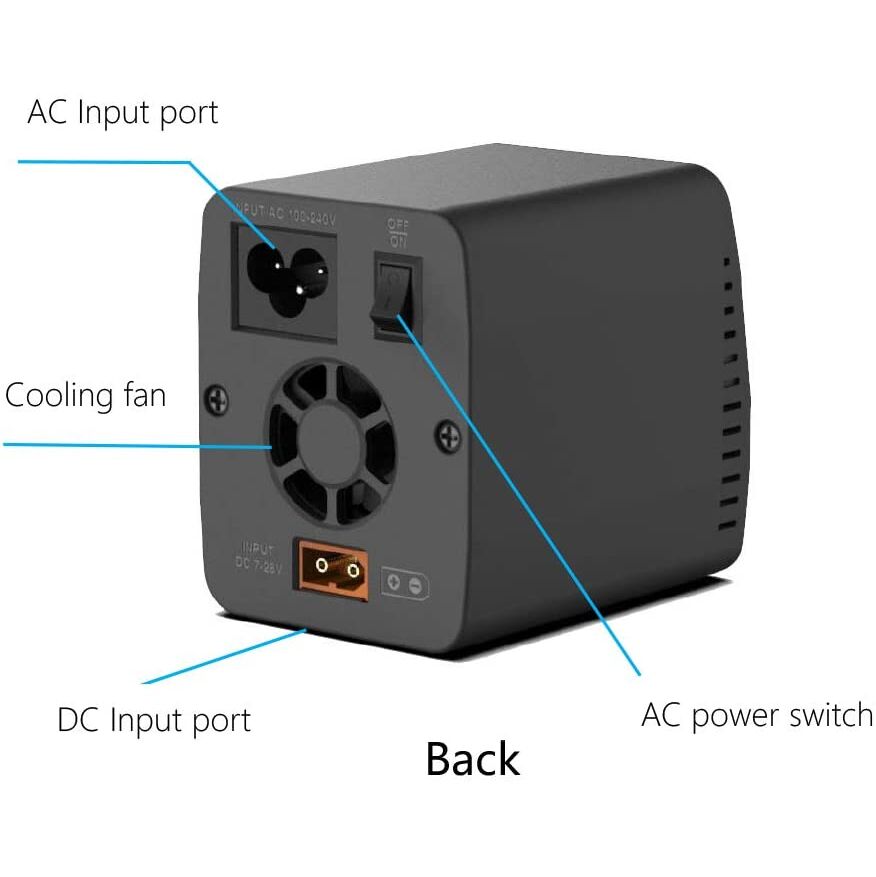

AC/DC two input modes.
The conversion efficiency is as high as 95%.
AC input: the full output power is up to 100W.

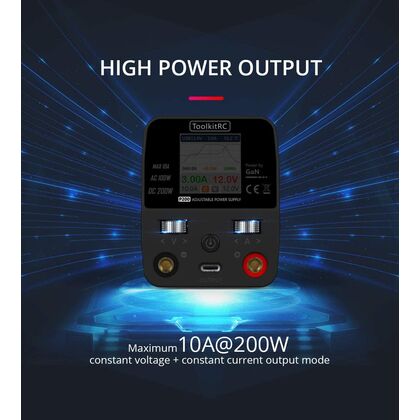

DC input: the full output power is up to 200W.

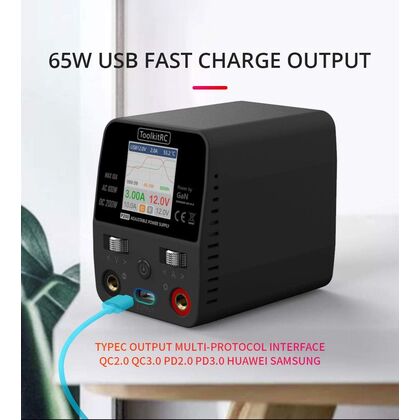

TYPE-C MAX output 65W.
Fast charge full protocol: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0 /AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC.
1.0-30.0V adjustable output voltage.
1.0-10.0A adjustable constant current。
Over voltage, over current, over temperature, short circuit, multiple protections.

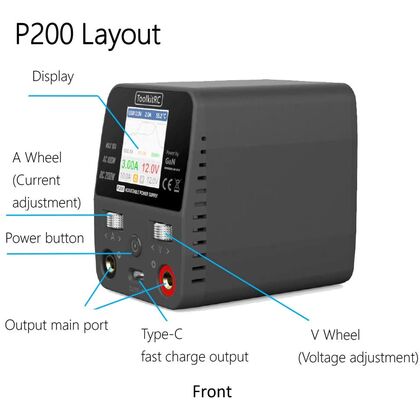

Metal dial wheel, feels hard and good.

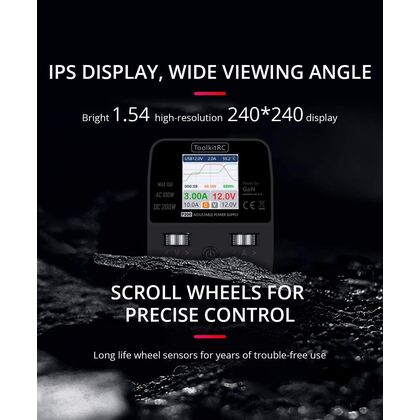

IPS 1.54" high-brightness high-definition display.
The device is simulated as a U disk, and the upgrade file is copied to realize the product firmware upgrade.
Safety
1. P200 allows the input voltage of DC 7-28V or AC 100-240V to ensure that the power supply voltage conforms to the power supply. Pay attention to the positive and negative polarity of the power supply when connecting.
2. Do not use this product in the environment of heat source, humidity, flammable and explosive gas.
3. Please use this product when someone is guarded to prevent accidents.
4. When not using this product, please unplug the input power in time.
5. When using the charging function, please set a current that matches the battery. Do not set an excessive current for charging, so as not to damage the battery.
