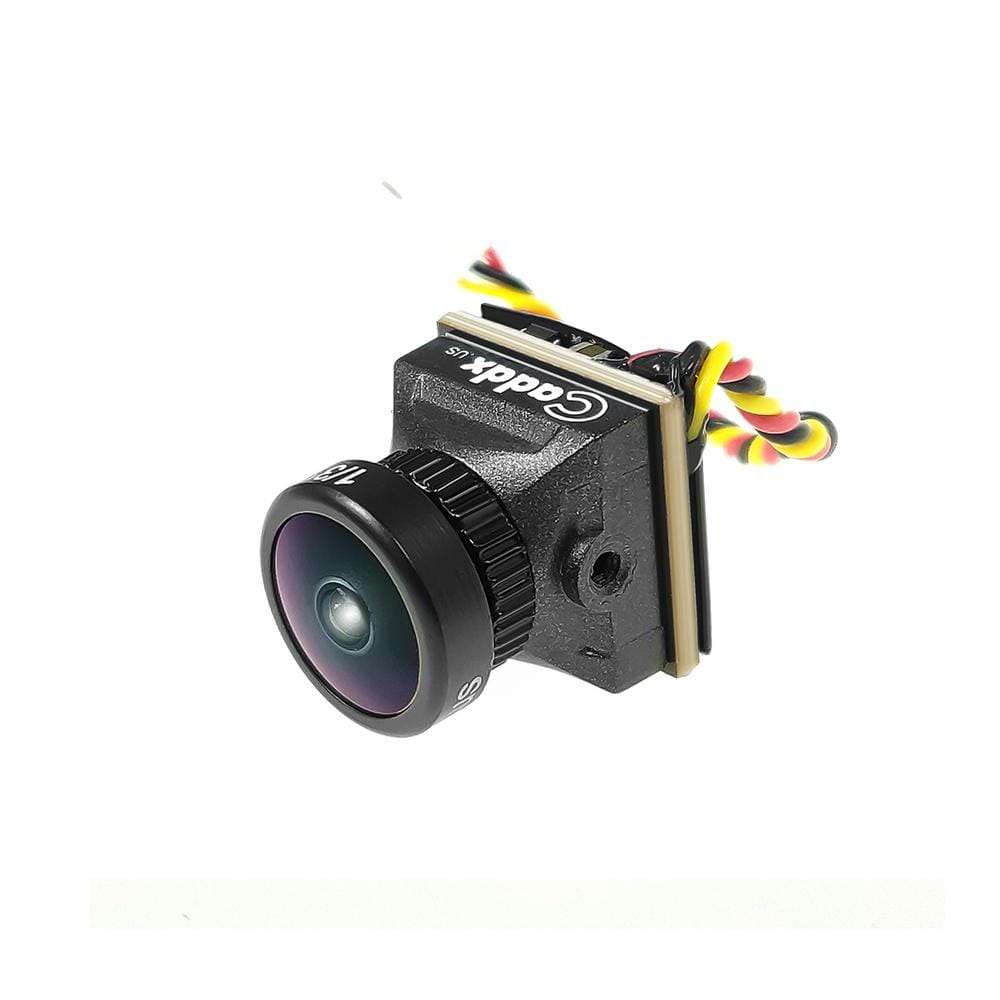

Caddx Turbo EOS2 14mm Nano 1200TVL Micro FPV Camera
This mini camera provides some incredible specs for 1200TVL resolution and WDR worldwide. EOS2 is equipped with 1/3 CMOS sensor and 2.1mm lens with a 16:9 projection ratio.
This camera is well suited to micro-structures that requires maximum weight and space Reduction without compromising quality.
Description:
| Model | Turbo EOS12 |
| Image Sensor | 1/3" CMOS sensor |
| Horizontal resolution | 1200 TVL |
| Television system | NTSC / PAL option |
| My MAGE | 16:9 |
| Synchronize | Internal |
| Electronic shutter | PAL: 1 / 50~100,000; NTSC: 1 / 60~100,000 |
| Signal to noise ratio | > 52dB (AGC OFF) |
| Video output | CVBS |
| Lens | 2.1 mm |
| Hey. illumination | 0.001Lux@F1.2 |
| Automatic gain control | Yes |
| BLC | Yes |
| WDR | Global WDR |
| DNR | 2 DNR |
| Dimensions | 14 mm * 14 mm * 16 mm |
| Wide power input | DC 3.3-6V |
| Operating temperature | -20°C~+ 60°C |
| Working humidity | 20%~80% |
| Weight | 3.5 grams (net) |
Package Included
1 camera
1 x Molex Picoblade 1.25mm 3pin FPV silicone cable
1 screw set
