The Motor XING 2814 designed for bigger quads like 9-10 inch quad frames, which is with better efficiency in this range frames. The XING 2814 features adopt Japan NSK bearing, N52H arc magnets. It offers incredible thrust number, highly responsive and extremely smooth flight characteristics. The bigger stator size of 2814 allows it to provide instant power to save you from those crazy mountain dives last minute. It's a great motor if you're building bigger drones like 9 inch or 10 inch.

Features:

* 7075 aluminum Bell and Base

* Electromagnetically matched magnets and stator

* Japanese NSK 11*5*5 bearings

* N52H Arc curve magnets

* Motor wires protected

* Hex bolt shaft set screw

* Dynamically balanced

Specification:

-Voltage Range: 2-6S(for different KV, different power support, please refer to the Test Report to choose your suitable KV and batteries)

-KV Option: 880KV/1100KV/1700KV/2200KV

-Configuration: 12N14P

-Bearing: NSK/11*5*5

-Stator Diameter: 28

-Stator Length: 14mm

-Shaft Diameter: 5mm

-No.of Cells(Lipo): 2-6S

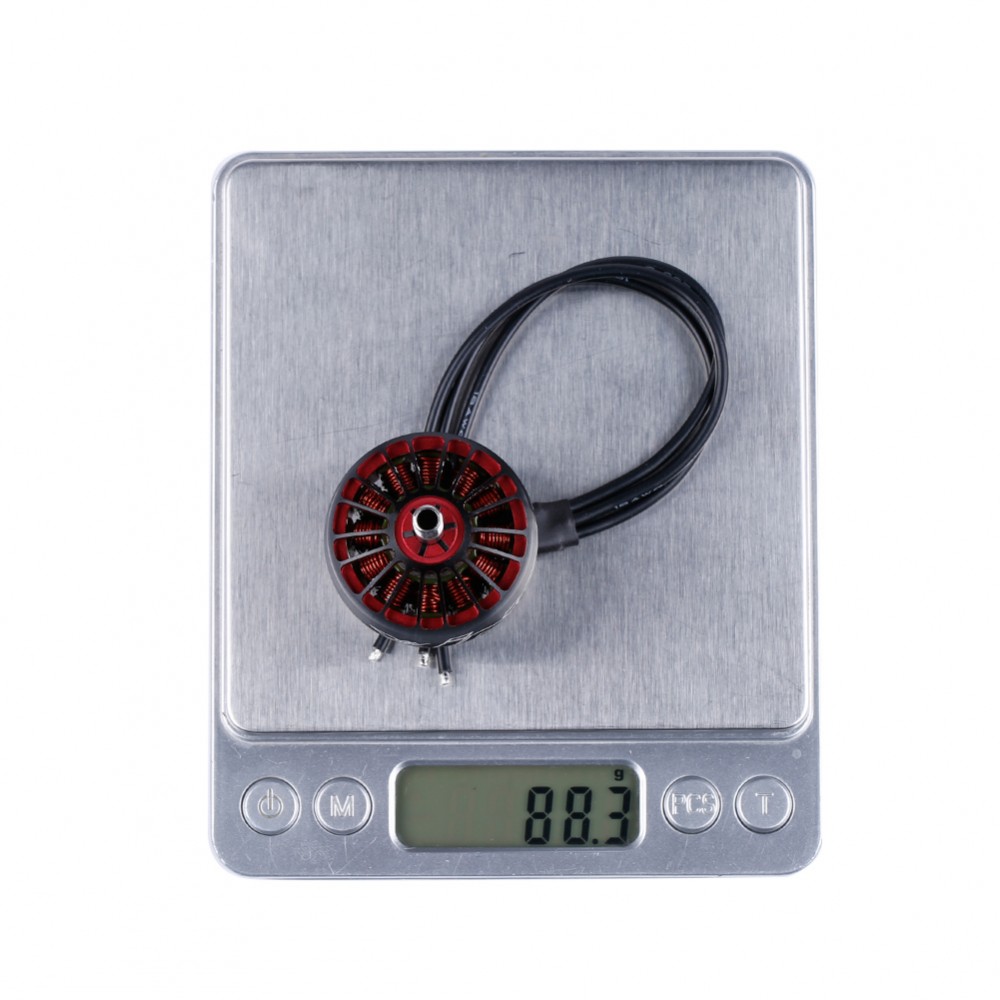

-Weight: 88.3g(with a short cable)

-Motor mount hole: 19*19 φ3mm

Package included:

1pc x X2814 motor

1pc x M5 Screw nut
